5 Tenant Administration

Note

A tenant is usually mapped to an organization or sometimes, a service provider would call them clients. Basically a tenant is a management scope that represents an organization.

Tenant manager scope is defined for tenant administrator. For a multi-tenant Cluster Server system, each tenant has an administrator. For a single-tenant Cluster Server system, the default cluster administrator is also the tenant administrator.

Tenant Manager is completely web-based.

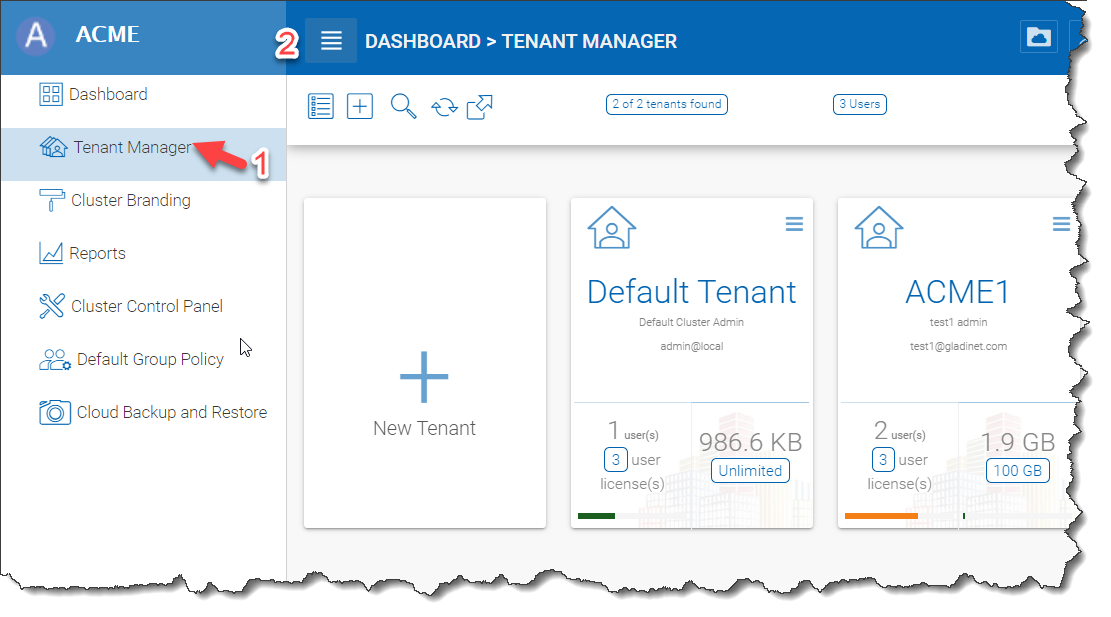

From the Cluster Manager Dashboard, you can access the Tenant Manager by choosing it in the left-side menu (1). This menu can be toggled on and off by clicking the “hamburger” menu (2) in the top left corner of the Dashboard.

_images/image_s5_0_00.png

CLUSTER SERVER DASHBOARD

Note

Once you have selected the Tenant Manager in the left-side menu, you can access the management console directly by clicking the “Default Tenant” icon.

Now the following guide will assume you are a tenant administrator, which is not the default cluster administrator.

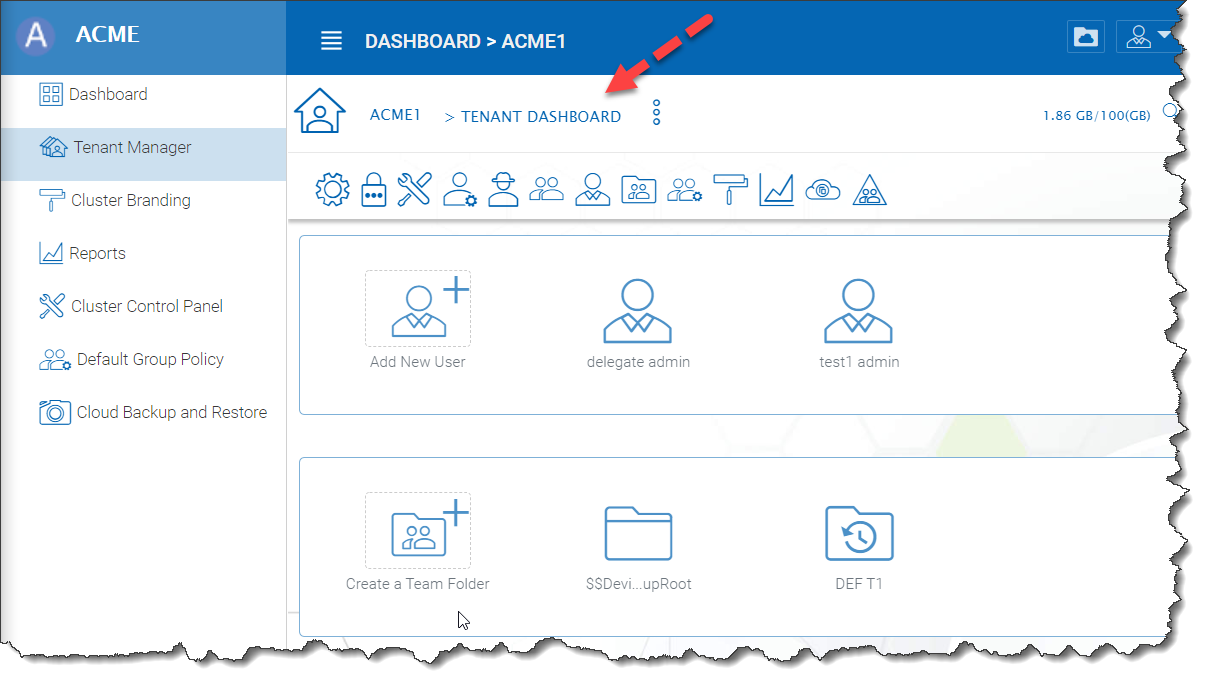

5.1 Tenant Dashboard

Tenant Manager > Tenant Dashboard

This is the Tenant Dashboard.

_images/image_s5_1_00.png

TENANT DASHBOARD

5.2 Storage Manager

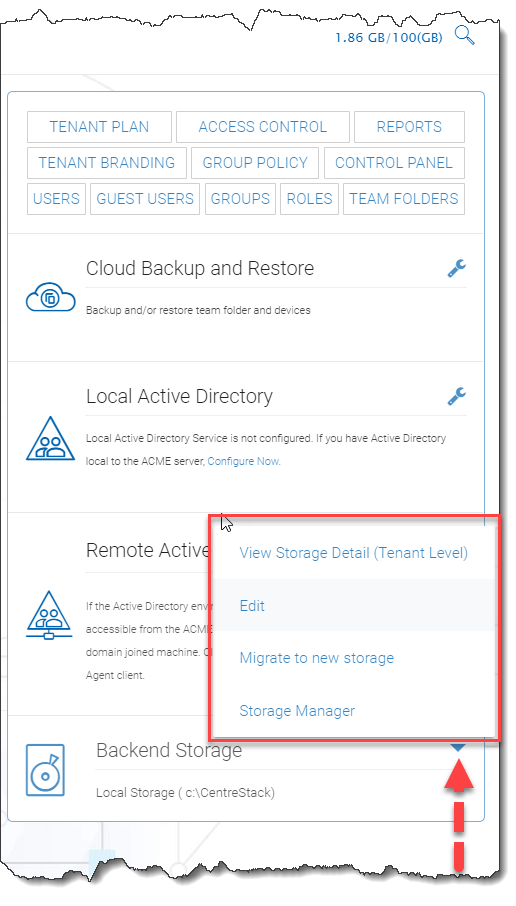

_images/image_s5_2_00.png

STORAGE MANAGER ACCESS

To access the Tenant Storage Manager, click the 3-dot menu on the bottom right of the Tenant Dashboard (Backend Storage section).

Note

You can mount different storage services into a single namespace (folder structure). For example, if you have multiple Amazon S3 buckets, you can mount them all in. If you have multiple OpenStack Swift accounts, you can mount them all in as well. If you have multiple file server network shares, you can add them to the storage manager.

Note

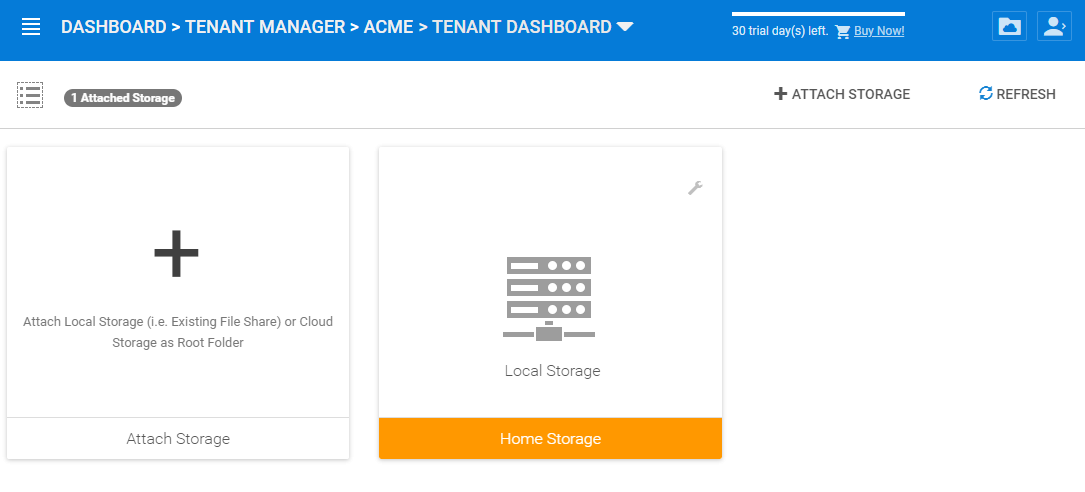

The cluster manager can define whether or not the Storage Manager is exposed to the tenant administrator.

_images/image_s5_2_20.png

STORAGE MANAGER SETTINGS

5.2.1 Home Storage

_images/image_s5_2_10.png

EDITING HOME STORAGE SETTINGS

Home storage is the most important property in the tenant manager. It is used in many ways, for example the users’ home directory can be setup under the home storage (if the user’s active directory home directory property is not used).

Note

In the field, one of the common mistake is that a tenant’s root network share is mapped directly to home directory of the tenant. The home directory can not be shared from the root, so if your end goal is to turn the network share directly into a team folder, you are better off mapping the home directory to another location, and later attach the network share as a secondary folder and turn that secondary folder into a team folder.

5.2.2 Attach Storage

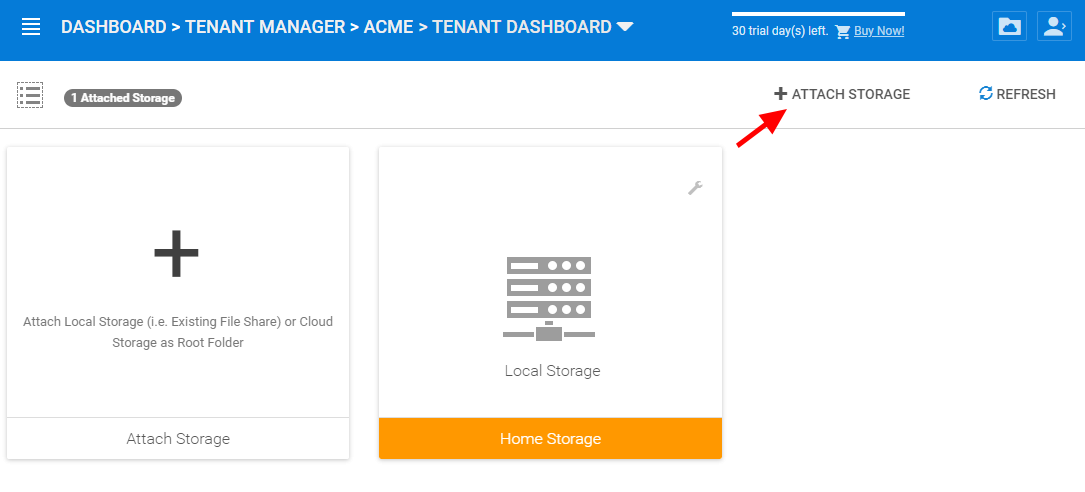

Storage is an important component in the Cluster Server. you can connect the tenant to a specific storage service. For example, you can connect it to local file server storage; you can also connect the tenant to cloud storage service such as Amazon S3, Windows Azure and OpenStack Swift.

_images/image_s5_2_21.png

ATTACH STORAGE

After clicking the “Attach Storage” button, the Cluster Server will take some time to discover file servers in the local area network and also provide a section to add cloud storage.

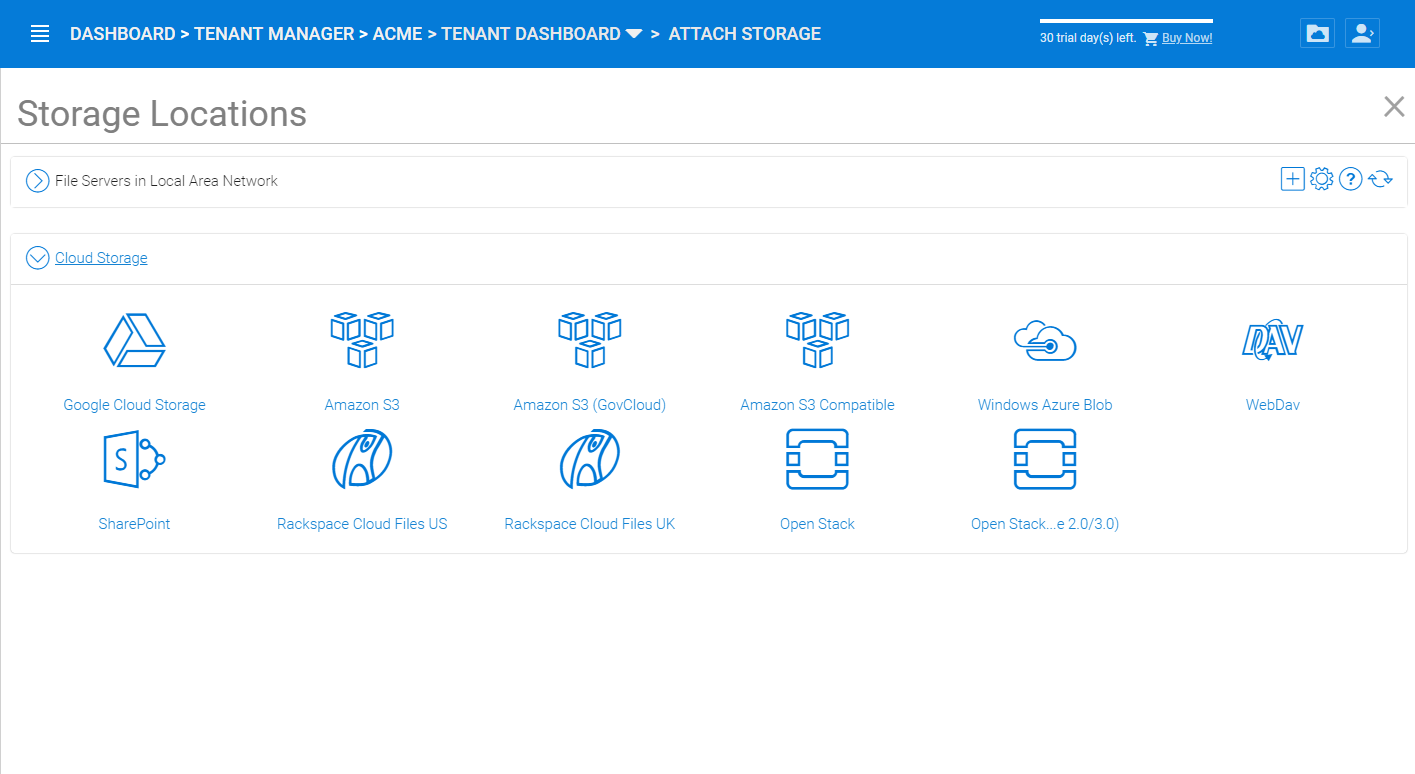

_images/image_s5_2_22.png

TYPES OF ATTACHED STORAGE

5.2.3 File Servers in Local Area Network

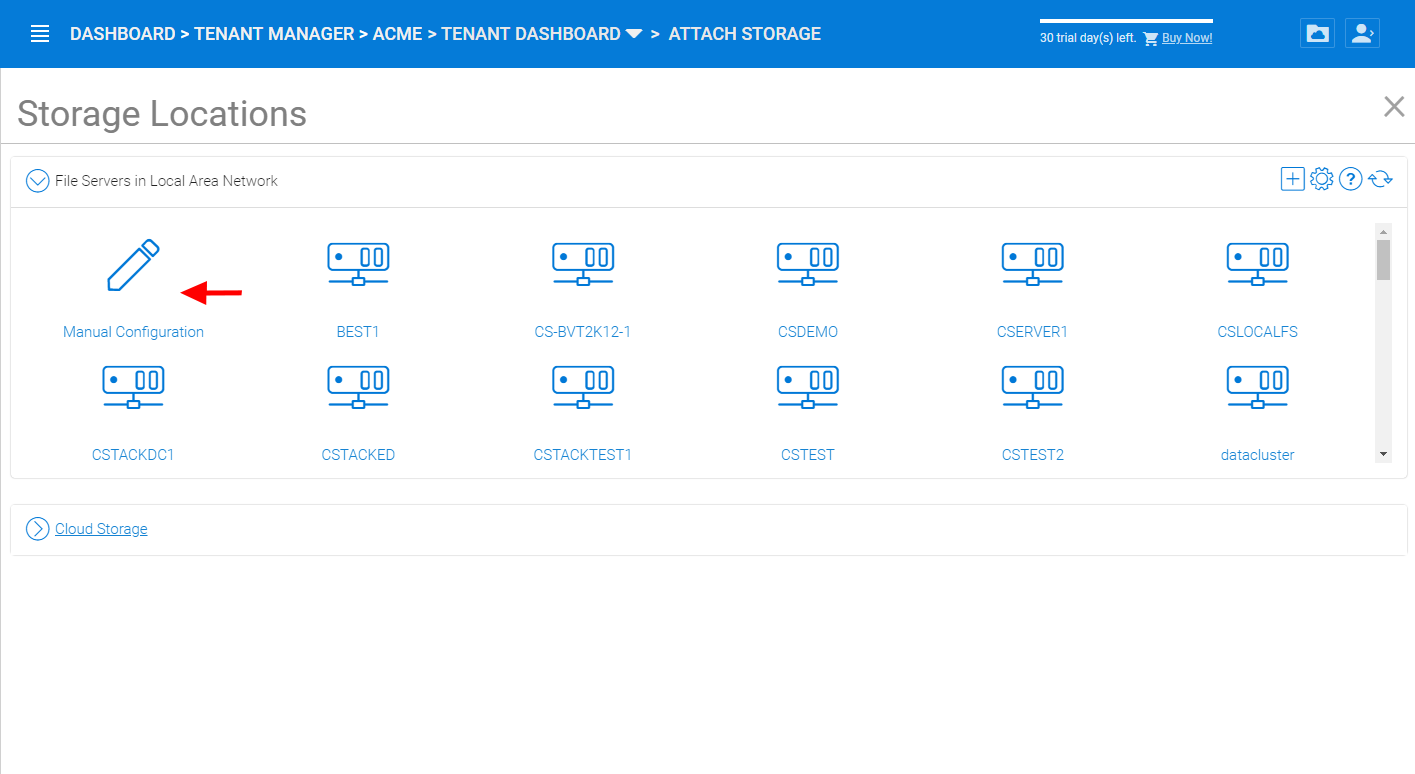

_images/image_s5_2_31.png

LOCAL AREA NETWORK (LAN) STORAGE

In the File Servers in Local Area Network section, the Cluster Server will contact Active Directory or contact network browser in the local area network to try to find file servers in the local area network. Most of the time, if firewalls and network connections are properly configured, the file server can be easily added into the system.

However, sometimes, there are some situations such as the DNS system or the NETBIOS system are not ready, in that case, file server may be discovered but it may not be connected, you can use Manual Configuration to manually connect to the file server.

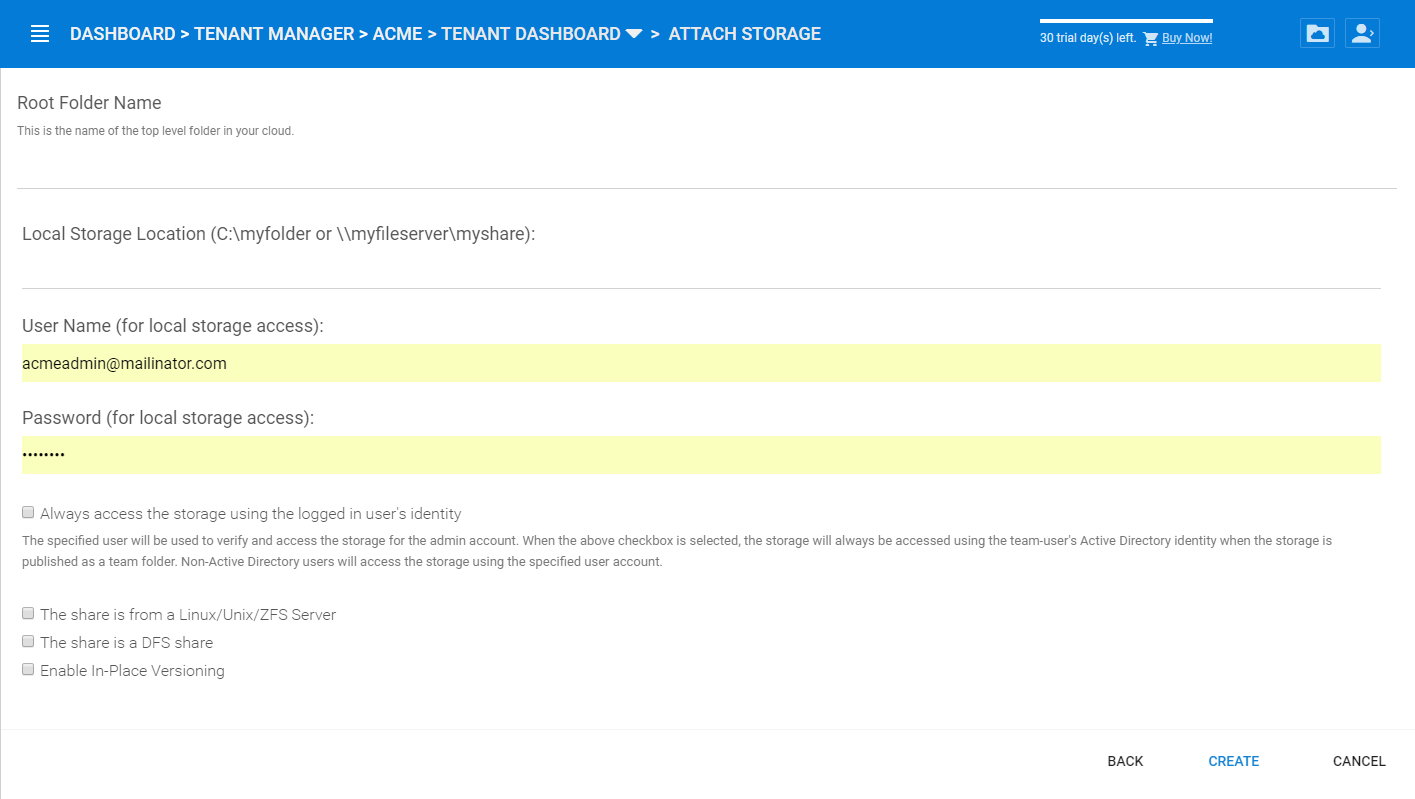

_images/image_s5_2_32.png

LAN ACCESS CREDENTIALS

5.2.4 Root Folder Name

Root folder name is the top level folder name that will show up in the tenant administrator’s folder structure. We recommend the folder name being descriptive and follow the normal Windows path recommendations (For example, there are certain characters that are not allowed).

Note

Remember this folder is only showing to the tenant administrator, it is not published to the team user yet. When it is time to publish the folder to the tenant users, the name that the tenant user will see can also be defined. It is recommend that if later the folder is continue to be published as a team folder, the name there for the team folder be the same as the folder name here. It is recommended but not necessary to have the root folder name the same as published team folder name.

5.2.5 Local Storage Location

This is the file server UNC path or local windows folder path that you will connect into the tenant administrator’s root folder structure. The idea here is you will take this folder, and mount the folder into the tenant administrator’s root folder structure with the name described in the “Root Folder name”.

User Name

The user name is the Windows username, either it being local Windows user or global Active Directory user, this is a Windows account that is capable of accessing the “Local Storage Location”

Password

This is the password for the Windows user above.

Note

We recommend this Windows user and credential being a service account, meaning the password isn’t subject to the maximum password days local security policy. Otherwise when it is time to rotate or change the user password, the connection here may be broken until the password is updated to match.

“Always access the storage using logon user identity”

When you have Active Directory Integration, and mount an existing file server network share in, you can select to “Always access the storage using logon user identity” so the ACL (NTFS Permission) on the file server share will be used natively. The access permission will be checked natively against the user’s Active Directory identity that is defined by the NTFS permission.

This option only applies to the “Local Storage” such as network share, DFS share, local folder and etc.

“The share is from a Linux/Unix/ZFS server”

Most of the time, you don’t want to check this flag because your file server share shall behave like a normal Windows Server share, even if it doesn’t come from a Windows Server.

In some small SOHO network storage devices, it may only allow one connection from one IP address, so if that is the case, you want to check this flag. Most of the time, you just don’t need to check this when the network share is capable of taking multiple connections/sessions from one single machine.

“This share is a DFS share”

If the share is a DFS share, you will check this checkbox, because DFS share has an extra layer of translation to translate back down to normal file server shares. This flag basically tell the Cluster Server to do an extra DFS translation back to SMB share before connecting to the share.

“Enable Inplace Versioning”

The underlying file server network share may not have explicit version control (It may have volume shadow copy for other purpose), this will add Cluster Server version control to the file server network share. It is independent from and not related to the volume shadow copy.

Note

In place versioning put the old version file into a __ver__ sub folder in the same folder structure, thus the name for In-Place Versioning so the folder structure is maintained as-is, while extra old copies of the file getting stored in a specific sub folder.

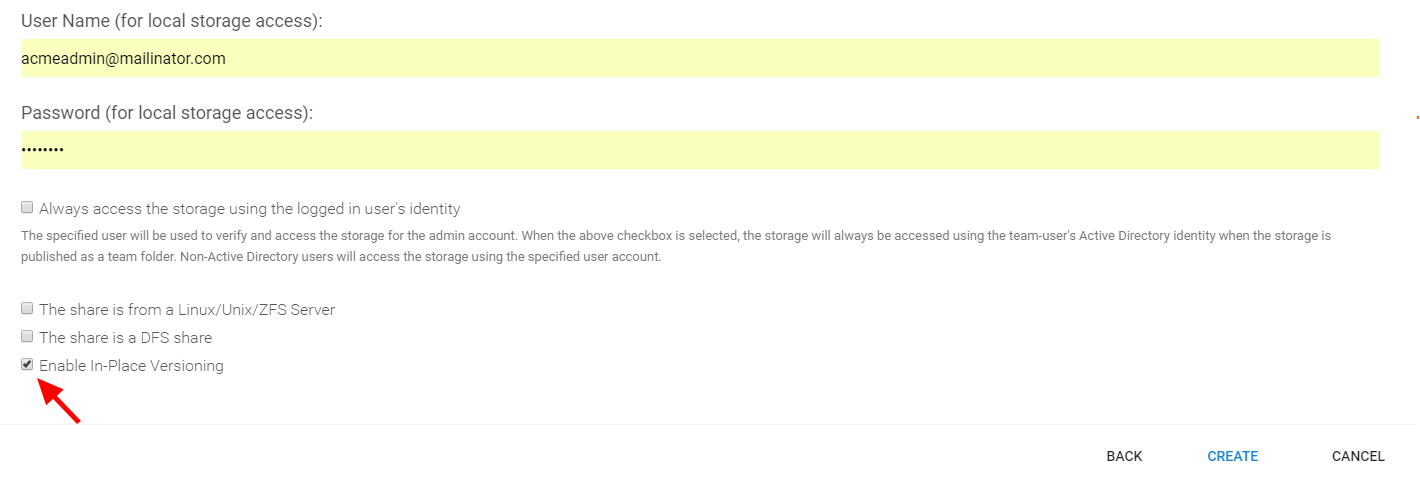

_images/image_s5_2_50.png

IN-PLACE VERSIONING

Here is a demo video showing the end result of “Enable Inplace Versioning” when the root folder (‘forward slash’) is mounted with the “Inplace versioning” enabled.

5.3 Storage Manager – Cloud Storage Property

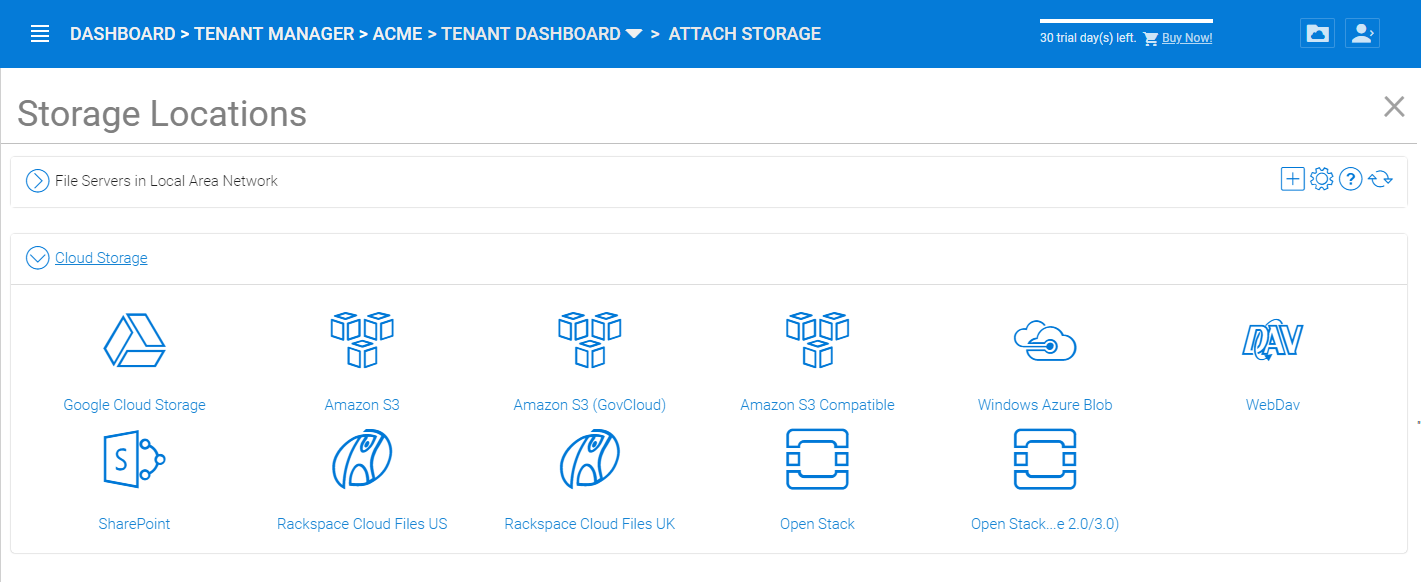

Besides local storage, you can also mount cloud storage into the system. If you have Amazon S3, or Amazon S3 compatible storage service, or if you have OpenStack Swift or OpenStack Swift compatible storage, you can connect it into the system. You can see the full list of storage services supported, including SoftLayer Object Storage, Google Cloud Storage, Microsoft Azure storage and more.

_images/image_s5_3_00.png

CLOUD STORAGE OPTIONS

5.3.1 Team Folders (Team Shares)

Tenant Management Console > Team Folder

The team folder concept is like a network share, meaning you can define a folder and then add users and groups to the folder and thus turn it into a team shared folder. The team folder will show up in the user’s folder list when the user is added to the team folder.

When the server agent is in use, the team folder can be mapped directly to a network share from the server where the server agent is installed.

When a directly connected network share is used, a team folder can be mapped to a SMB/CIFS network share directly.

You can also turn any existing folder into a team folder.

Team folder has a tenant administrator scope so the team folder related sharing is limited to the users inside the tenant.

Note

By default, the files and folders that the administrator can see is hidden away from the regular team user until those folders are published to the team users.

_images/image_s5_3_10.png

TEAM FOLDER SETTINGS

Create Team Folder

Tenant Management Console > Team Folder > Add New Team Folder

You can click on the “+” sign to create a new team folder

_images/image_s5_3_11.png

ADDING A TEAM FOLDER

Once it is clicked, it shows four main sources of team folder, among other options

  • Existing Tenant Storage (default location)
  • File Servers in Local Area Network
  • Remote File Servers
  • Cloud Storage
_images/image_s5_3_12.png

TEAM FOLDER LOCATIONS

Existing Tenant Storage (default location)

When you pick this option to create a team folder, the team folder will be created from the default storage from scratch with an empty team folder. Usually when you want to have a team folder that is brand new and empty, you can pick this option.
_images/image_s5_3_13.png

EXISTING TENANT STORAGE

File Servers in Local Area Network

When you have files and folders from local area network (LAN), you can convert the network share directly into a team folder in the Cluster Server. It is a one-to-one relationship between a team folder and a network share. When you pick this option, most of the time, the Active Directory server for this tenant is also in the same Local Area Network.

Publish Tenant Home Storage As a Team Folder

By default, the tenant’s root storage folder is not published to any team user. To use an analogy, it is like a C: drive on a Windows File Server, by default it is not published as network share to users. However, if you want to make it available to users, you can pick this option.

_images/image_s5_3_13a.png

LAN-BASED TEAM FOLDER

Remote File Server

When you have server agents installed on remote file servers, those file servers will be visible and the network shares from remote file servers will be imported to the Cluster Server.

_images/image_s5_3_13b.png

REMOTE TEAM FOLDER

Cloud Storage

You can also pick Cloud Storage as this team folder’s underlying storage. As shown in the following picture, you can pick Amazon S3, Windows Azure Blob, OpenStack Swift and other cloud storage services.

_images/image_s5_3_13c.png

CLOUD-BASED TEAM FOLDER

Team Folder Properties

Team Folder Information

Team Folder > {Pick a Team Folder} > info button

_images/image_s5_3_14.png

TEAM FOLDER INFORMATION ACCESS

Team Folder Permission Setting

Team Folder > {Pick a Team Folder} > edit button

_images/image_s5_3_16.png

EDITING FOLDER PERMISSIONS

Collaborators

Team Folder > {Pick a Team Folder} > edit button > Collaborators Tab

In the Collaborators section, you can define:

Display Name:

The name of the team folder

User List:

The users and groups that are assigned to the team folder. The users with the owner flag will be able to manage the users.

External Sharing

Team Folder > {Pick a Team Folder} > edit button > External Sharing Tab

You can see what folders and files have been shared and control access to those files from this setting.

_images/image_s5_3_16a.png

TEAM FOLDER PERMISSION SETTINGS

Folder Permissions

Team Folder > {Pick a Team Folder} > edit button > Folder Permissions Tab

You can browse to different sub-folders and define the folder permission. The folder permissions defined here represent the Cluster Server side of the permission.

If you are leveraging native Active Directory/NTFS permission from a file server, you don’t need to define any permissions here.

Note

You can think of the permissions as two different gates controlling the access to files and folders. The first gate is defined here as Cluster Server Folder Permission. After this permission check, there is still check at the file server level (which is NTFS permission).

In practice, usually it is done one way or the other. If you have decided to use NTFS natively, you can leave the permission settings here empty and not defined.

_images/image_s5_3_16b.png

TEAM FOLDER PERMISSION SETTINGS

Settings

Team Folder > {Pick a Team Folder} > edit button > Settings Tab

_images/image_s5_3_16c.png

TEAM FOLDER SETTINGS OVERVIEW

Here is a look at the details of the Team Folder Settings:

_images/image_s5_3_17.png

TEAM FOLDER SETTINGS DETAIL

Disable further sharing

Don’t allow users to share out team folder contents.

Create CIFS Share

If there are server agents connected to the tenant, create a CIFS share on the file server agent server as a standard Windows network share.

Disable Offline Access

Don’t allow Windows clients or Mac clients to mark folder as offline from within the team folder

Synchronize folder permission automatically

If the folder is coming from a file server agent, sync the NTFS permission over to the cloud side. This is emulating NTFS permission with the Cluster Server is away from the file server across the Internet.
_images/image_s5_3_18.png

TEAM FOLDER SETTINGS - PERMISSIONS

Don’t show folder users doesn’t have permissions to access

Hide folder instead of showing users folders that they will receive “Access Denied”.

Secure Data Room

Don’t allow download content but allow viewing directly in web browser.
_images/image_s5_3_19.png

IP White List

Security feature to lock team folder access down to a range of IP addresses.
_images/image_s5_3_20.png

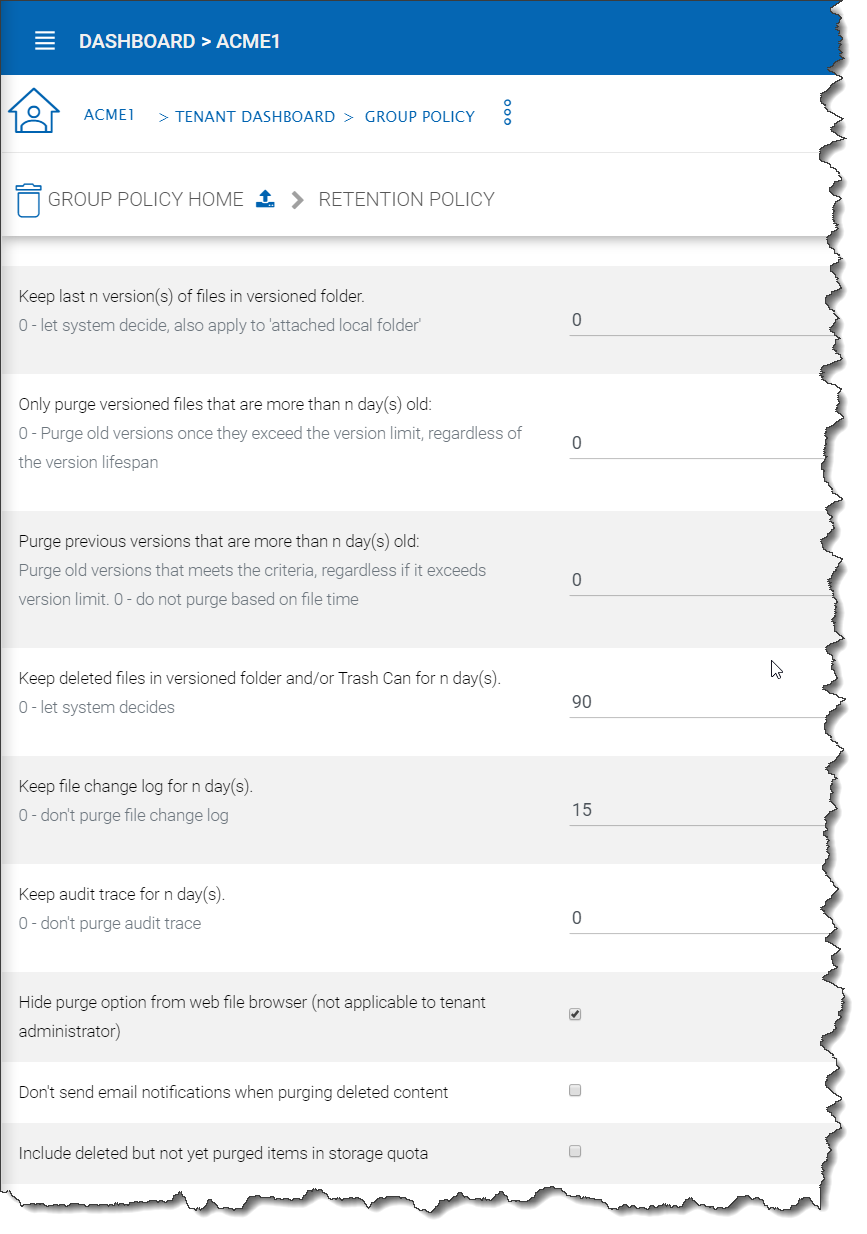

Quota and Retention Policy

Team folder can have a per-team folder retention policy.
_images/image_s5_3_21.png

QUOTA AND RETENTION POLICY

5.4 User Management

5.4.1 Regular User

Tenant Management Console > User Manager > User Manager

In the Documentation, the regular user is often referenced as “Team User”.

The first tab is the Regular User Manager. These are the users that have full privilege of home directory, sharing and other features.

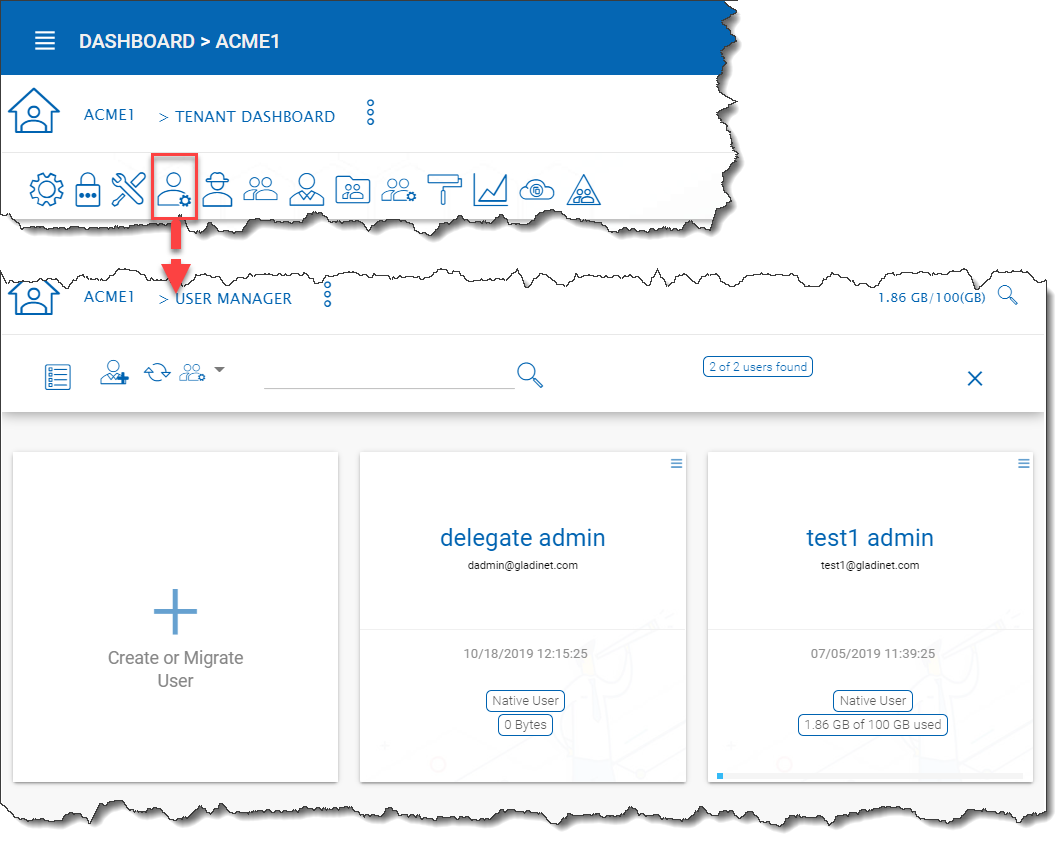

_images/image_s5_4_10.png

USER MANAGER SETTINGS

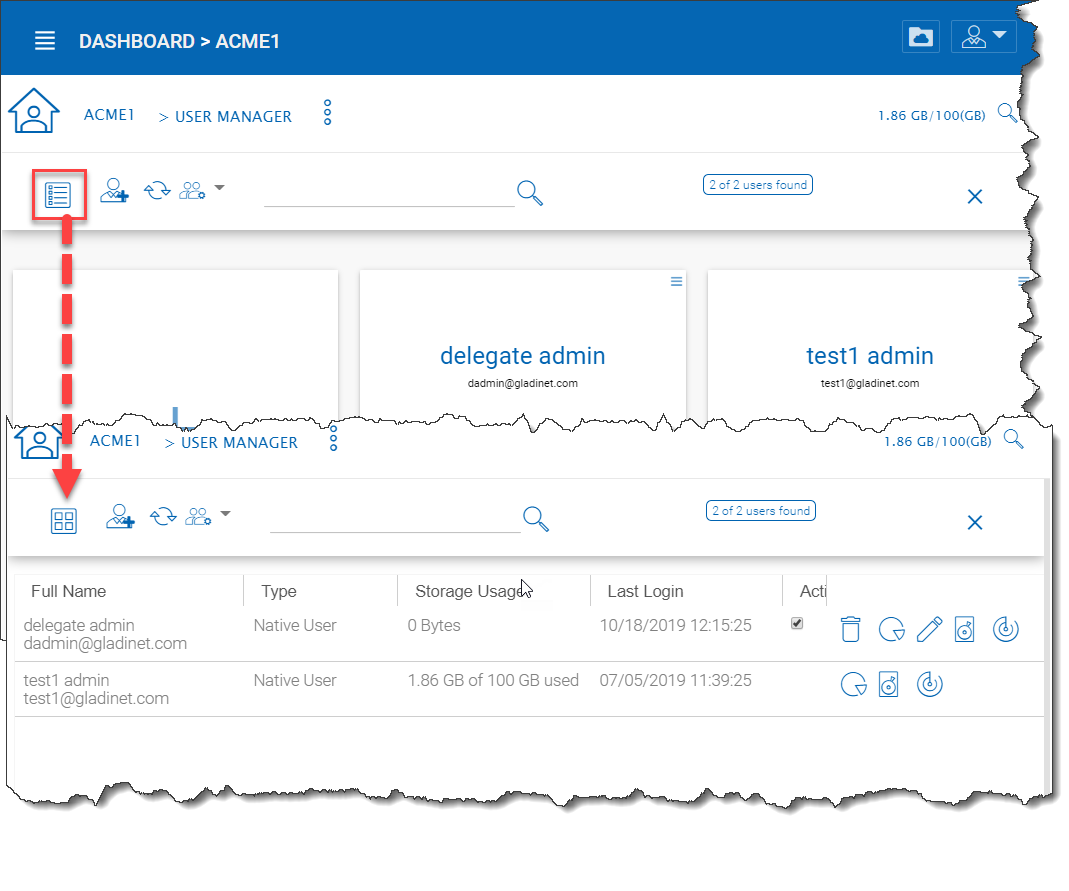

User Manager also have a list view:

_images/image_s5_4_11.png

USER MANAGER LIST/ICON VIEW TOGGLE

If you have Active Directory, normally these are the users in the Active Directory.

  • Native User

    these are the users that are created manually with an email.

  • AD User

    these are the users that are imported from Active Directory via LDAP.

  • Proxied AD User

    these are the users that are imported from Server Agent, where the file server agent is remote and away from the Cluster Server in the customer’s site. The customer’s Active Directory domain is also remote, and the file server itself (where server agent is installed) is in the remote Active Directory.

A create user demo video:

A delete user demo video:

5.4.2 Guest User

Tenant Management Console > User Manager > Guest User Manager

Guest users are users that don’t have a home directory. The only folder they have is “Files Shared with Me”. So they rely on other “Regular User” sharing files and folders with them before they can do anything. If nobody is sharing anything with a guest user, the guest user doesn’t have any read/write permission to any folder.

The primary reason for guest user to exist is to have a secure way for external user to collaborate and edit documents.

5.5 Group Manager

Tenant Management Console > User Manager > Group Manager

When you have Active Directory integration, you will leverage Active Directory group instead of using Group Manager here. This group manager is to create group of users in a simple way. It is not as complicated as Active Directory (such as supporting nested groups) but make it easy for non-Active Directory users. This is native Cluster group. In the product, you may also see AD group from the user selection user interface and Proxied AD group from the user related interface. The AD group and the proxied AD group are not the same as the group mentioned here.

5.5.1 Role Manager

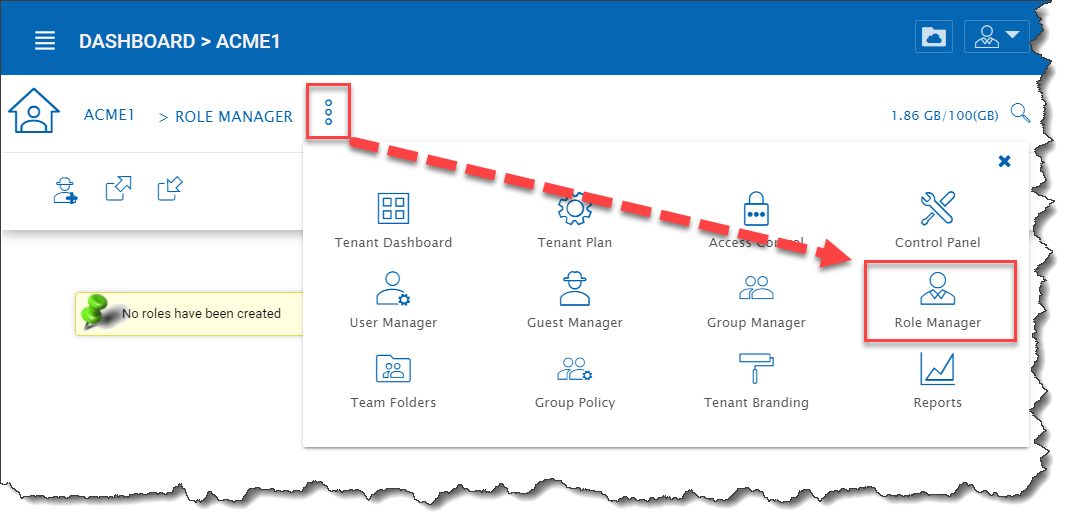

Tenant Management Console > User Manager > Role Manager

Role Manager is to provide role based administration. For example, you may want to provide read-only permissions to some users. You can also assign some group policies to some groups of users. More and more policy items are added to the role manager so in addition to only use role manager for administration, it can be also used to define policy items for users.

When creating a role, there are 4 different sections

  • Permissions
  • Sharing
  • Policies
  • Assigned Users/Groups

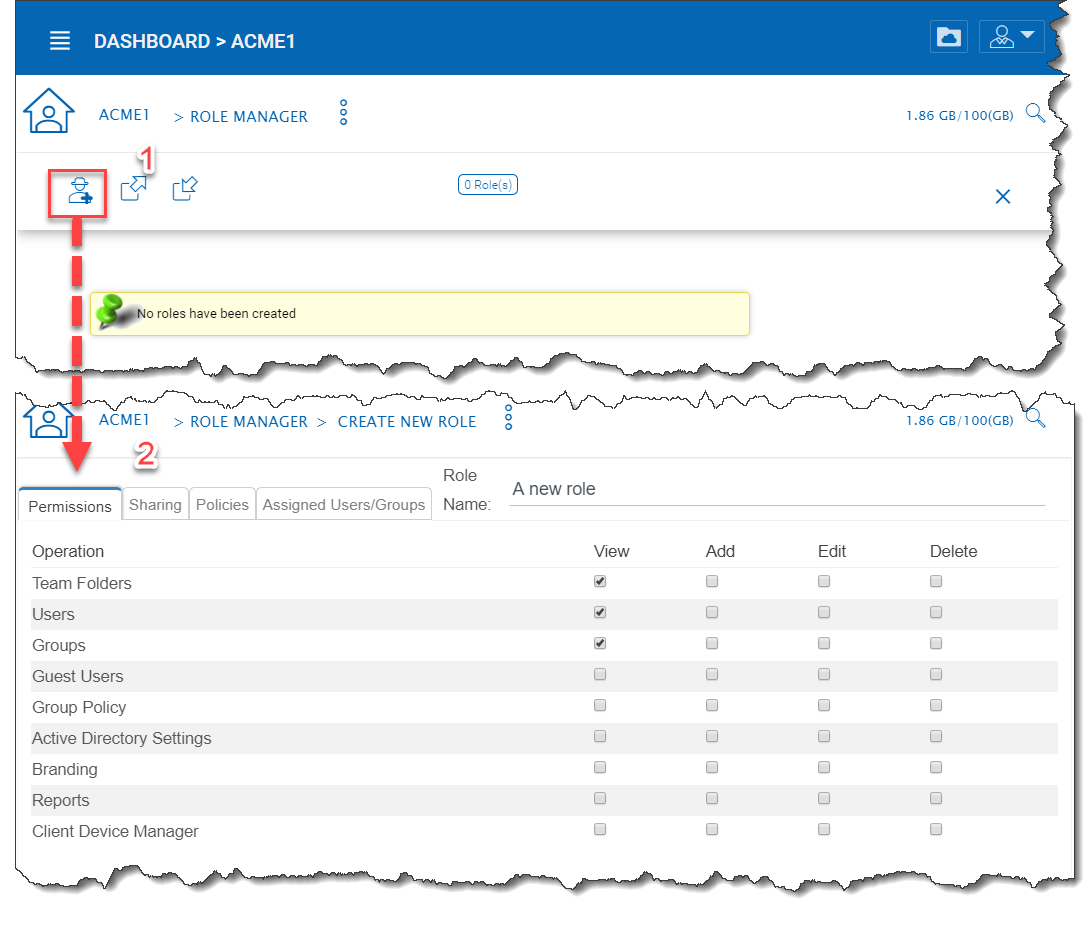

Role Manager - Permissions

You can define areas in the tenant administrator’s management console and assign it into a role.

_images/image_s5_5_10.png

ROLE MANAGER PERMISSIONS

Role Manager - Sharing

additional sharing policies for the role.

_images/image_s5_5_10b.png

ROLE MANAGER SHARING

Role Manager - Policies

Additional policies that can be assigned to a role.

_images/image_s5_5_10c.png

ROLE MANAGER POLICIES

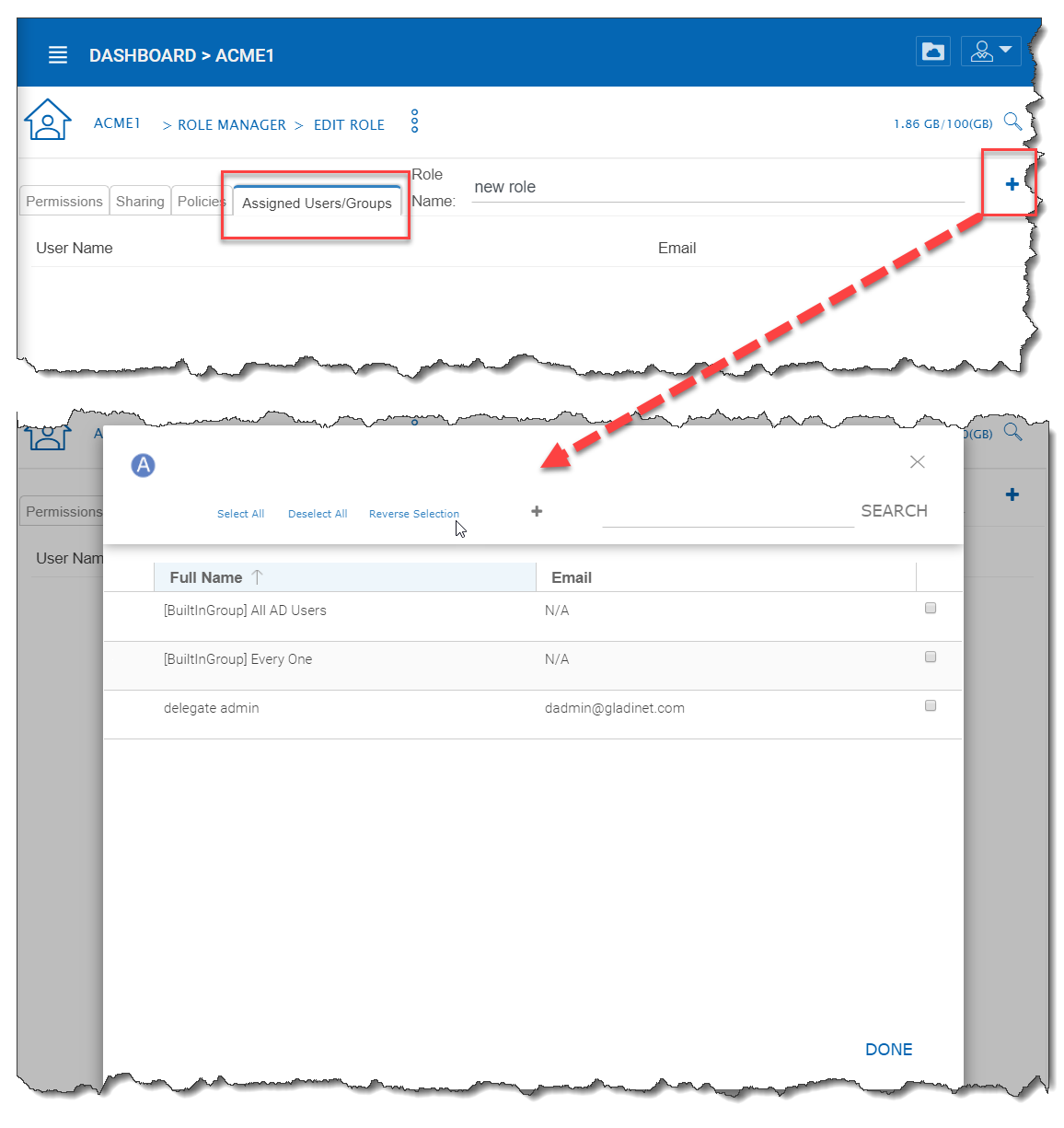

Role Manager - Assigned Users/Groups

Additional policies that can be assigned to a role.

_images/image_s5_5_10d.png

ROLE MANAGER ASSIGNED USERS/GROUPS

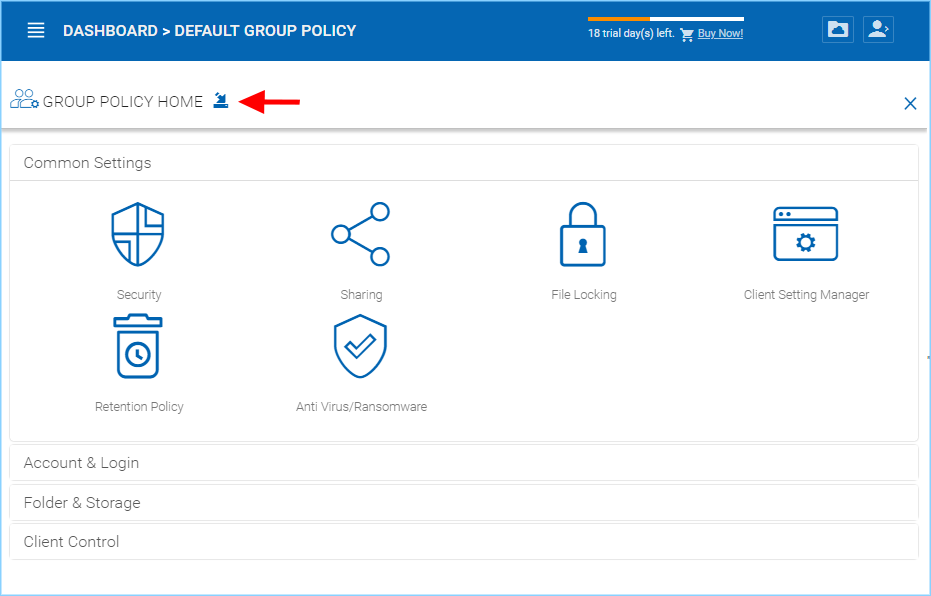

5.6 Group Policy

Tenant Management Console > Group Policy

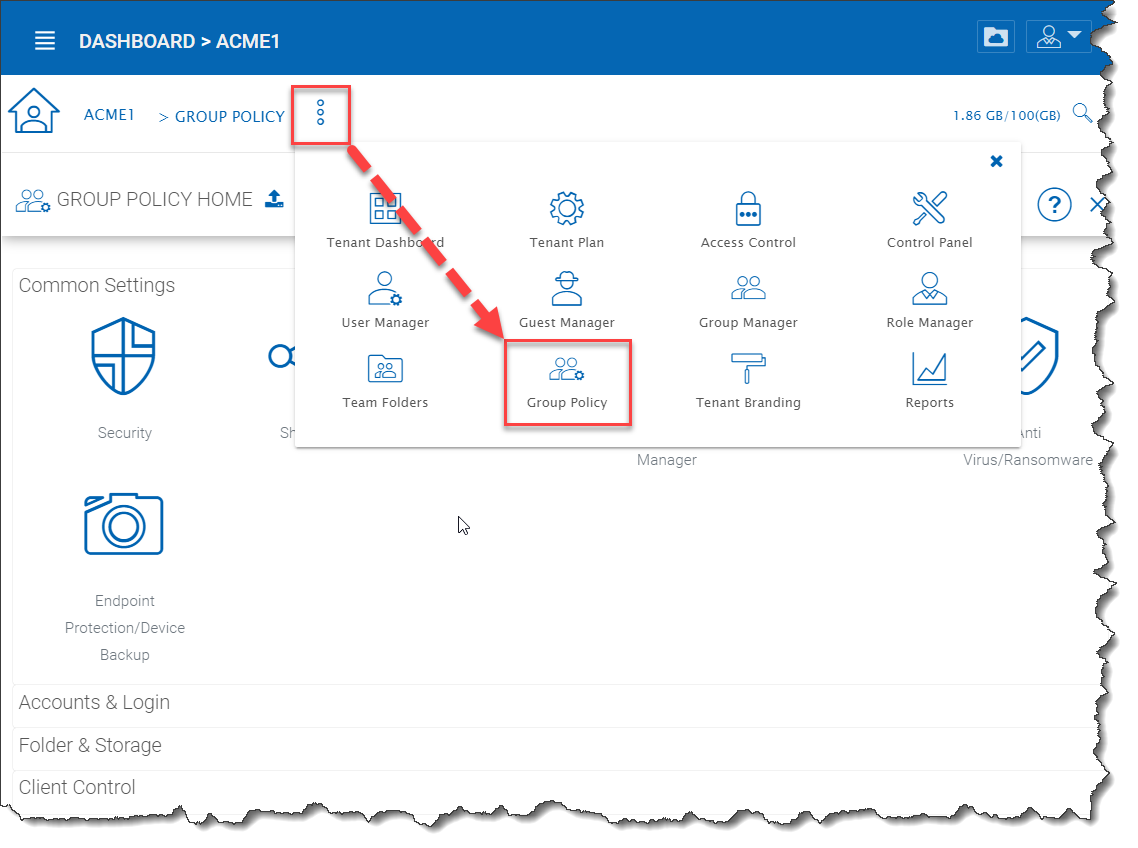

_images/image_s5_6_00.png

GROUP POLICY SETTINGS

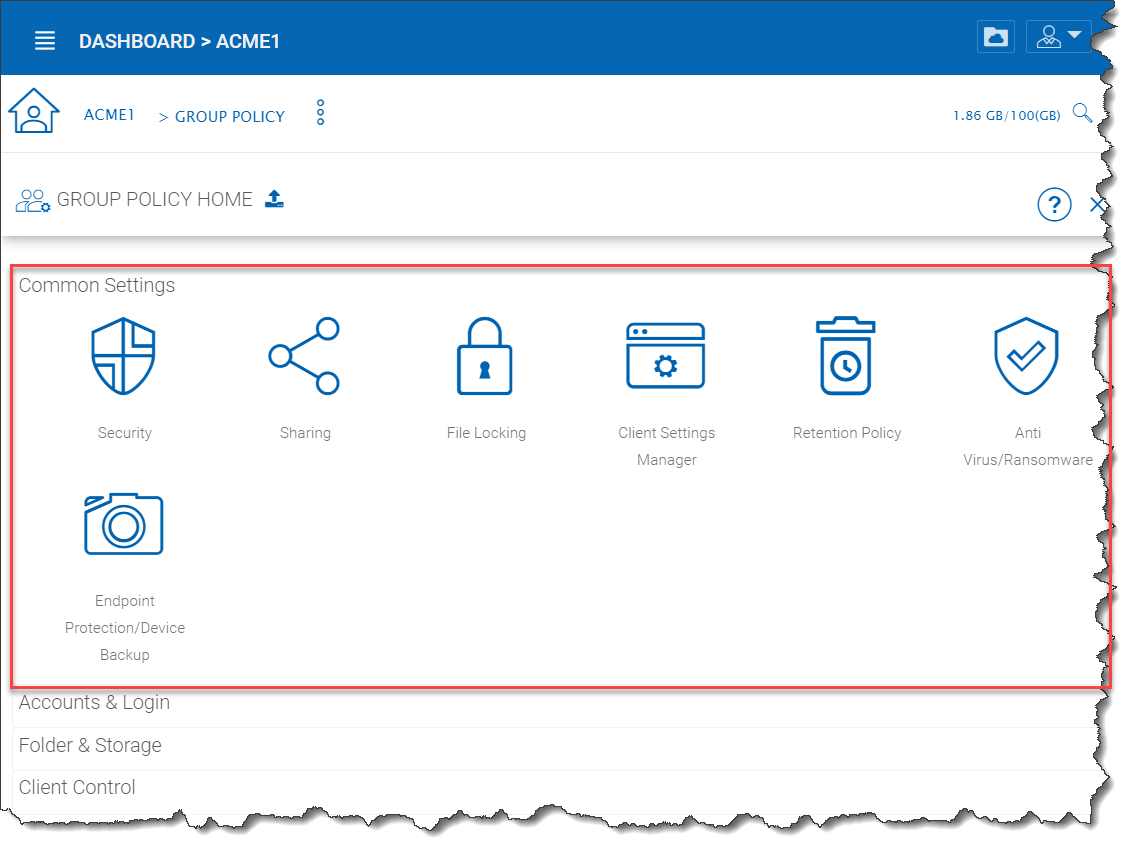

5.6.1 Common Settings

Tenant Management Console > Group Policy > Common Settings

_images/image_s5_6_10.png

GROUP POLICY COMMON SETTINGS

Security

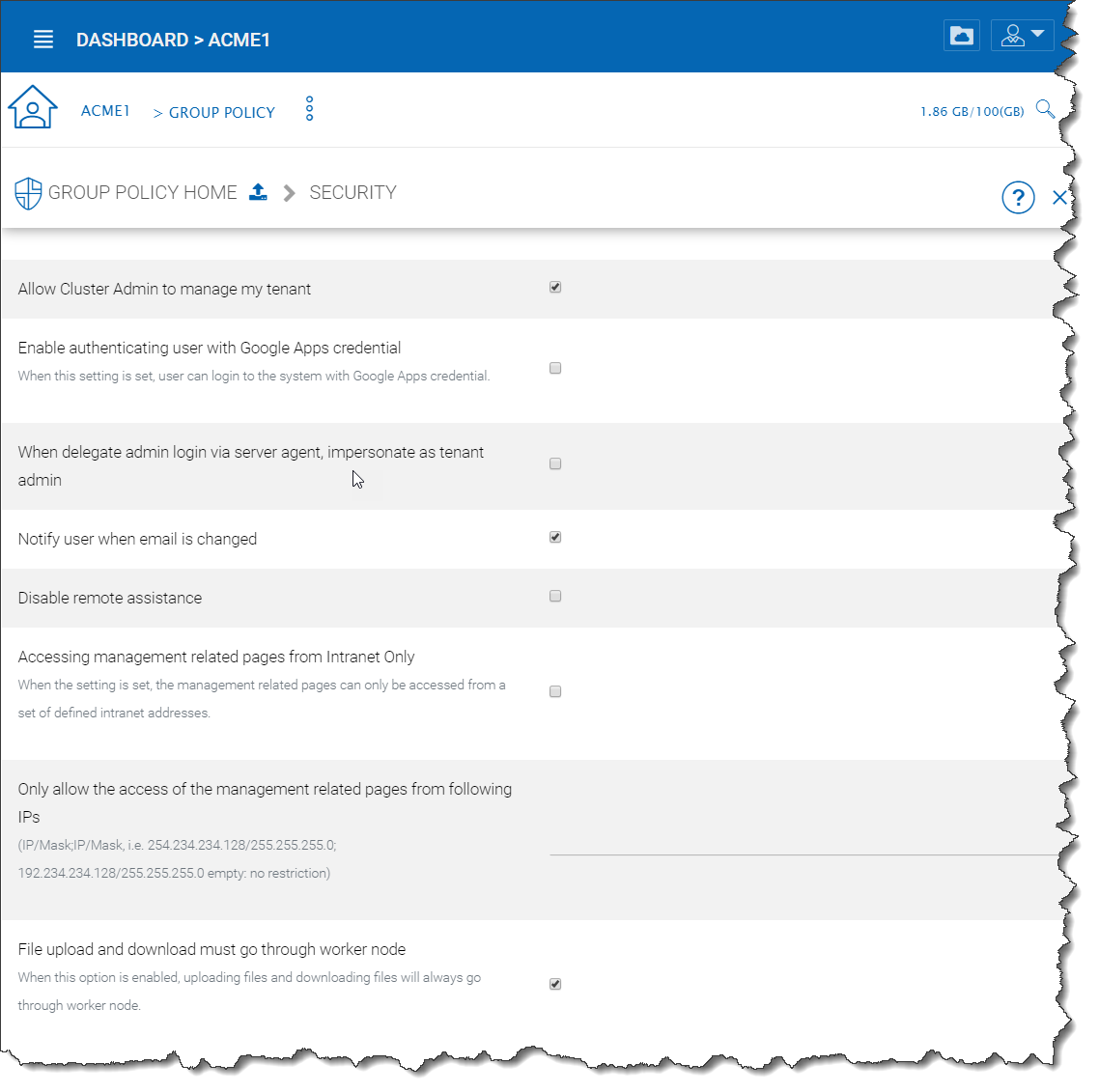

Tenant Management Console > Group Policy > Common Settings > Security

_images/image_s5_6_11.png

GROUP POLICY SETTINGS

“Allow Cluster Admin to manage my tenant”

when enabled, the cluster admin will be able to use “Manage Tenant” link to manage the tenant in the tenant manager. This is very convenient for cluster administrator (typically system administrator from service provider) to provide management work to the tenant.

“Enable Authenticating User with Google Apps Credentials”

when enabled, users can login using Google Apps credentials.

“When delegate admin login via server agent, impersonate as tenant admin”

Server agent typically need to sync to the default tenant administrator. It is recommended when a delegate administrator setup server agent, it needs to impersonate the default tenant administrator.

“Access management related pages from Intranet Only”

(This setting may only be available from cluster administrator side)

Intranet is defined as 10.x.x.x or 192.168.x.x kind of IP addresses. Usually you can achieve the same functionality by disable the management functionality on external facing worker nodes but enable that for an internal facing worker node. But if your intranet meets certain IP address criteria, you can use this setting to achieve that goal too. It is a security feature to limit the management scope to intranet only. As mentioned above, an alternative way is to go to the cluster manager, then cluster server farm and disable the “management functionality on this node”.

“File upload and download must go through worker node”

(This setting may only be available from cluster administrator side)

For Amazon S3 type of cloud storage/object storage, it is recommend NOT to force file upload and download going through worker nodes, because Amazon S3 is good for offload the upload/download to between the access clients and the backend Amazon S3 storage. However, for OpenStack Swift storage, depending on how it is setup, you may want to turn this on to force File Upload/Download going through worker node for security reason.

This setting may be checked by default. However, based on your configuration, it may not need to be checked.

For example, if you are using file server network share as the storage location, the upload and download has to go through worker node anyway, so there is no need to check this checkbox.

There may be some situations that this setting must be checked. For example, you may be using native object storage such as Amazon S3 for storage. However, your company policy may disable direct access to Amazon S3. So in this case, you will have to route traffic through the worker node.

Sharing Settings

Tenant Management Console > Group Policy > Common Settings > Sharing

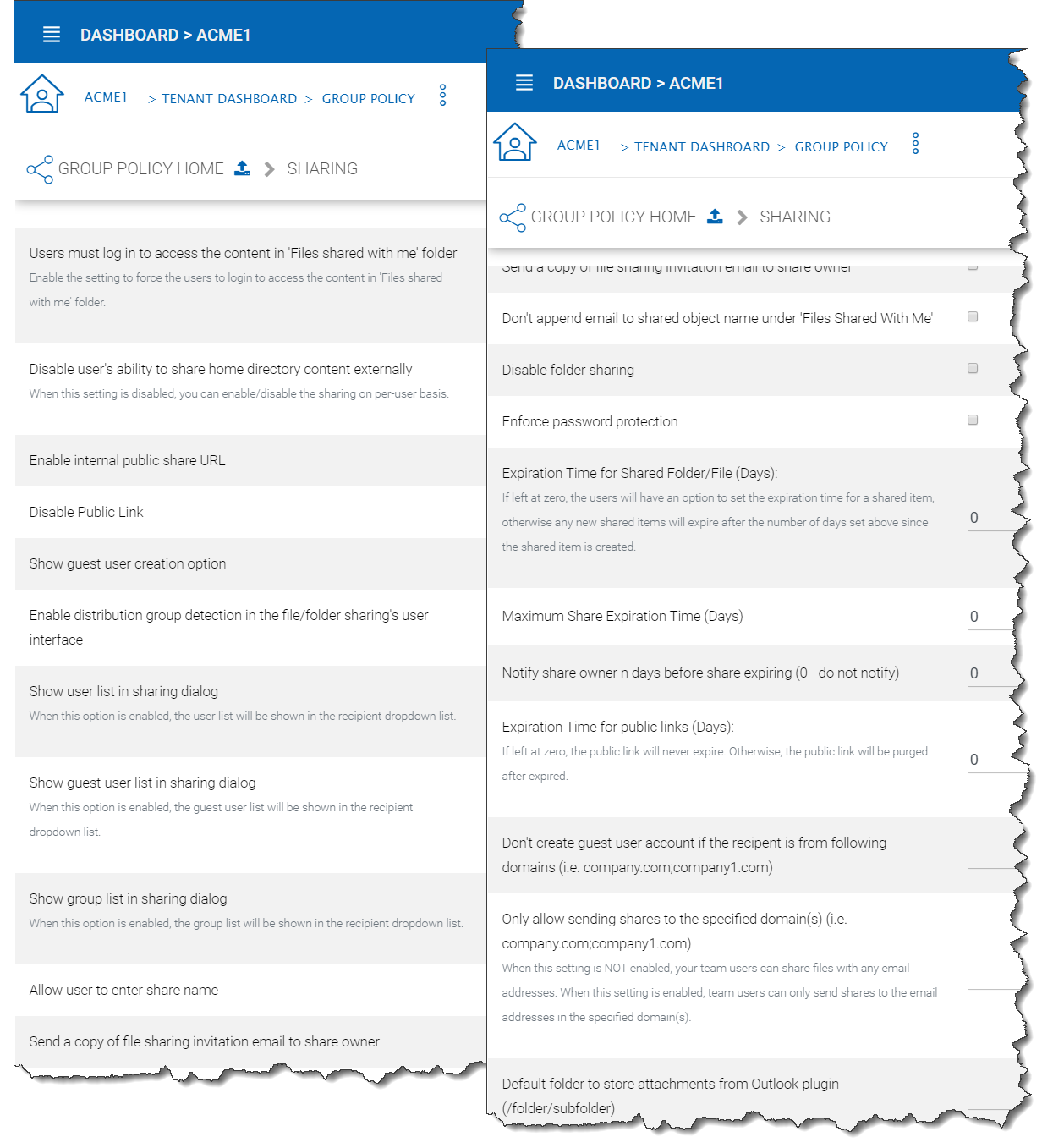

_images/image_s5_6_12.png

GROUP POLICY SHARING SETTINGS

“User must login to access shared files/folders”

When sharing files and folders with users, you can force the sharing to create guest accounts for users that are not already in the system. It is more secure when asking the receiver of the share to sign in to receive shared items. This disables the anonymous sharing.

If this setting is not enabled, users can share files and folders to outside email address without requiring outside user to create guest user account.

“Disable user’s ability to share home directory content externally”

This feature disables the ability for regular user to share home directory contents for security reasons.

“Enable Internal Public Share URL”

If you have an internal public share you can use this setting to enable it.

When this is enabled, it will use the Internal URL property to generate the link.

Disable Public Link

This will disable the public link feature in the sharing dialog.

“Show guest user creation option”

When enabled this shows the guest user creation option which you will see when ‘Sharing’ a file or folder by email. This is how you can provide full edit capability to a guest user, as they must be logged in to modify a file or folder in the CentreStack Server.

“Enable distribution group detection in file/folder sharing’s user interface”

With active directory integration, sometimes you want to share files and folders with a distribution group. This feature allows detection of distribution group and expand the group so the sharing will be done with the users in the group, instead of using the group as a single user.

“Show user list in sharing dialog”

When enabled, the user list will be displayed in the recipient’s dropdown list.

“Show guest user list in sharing dialog”

When this option is enabled, the guest user list will be shown in the recipient dropdown list.

“Show group list in sharing dialog”

When this option is enabled, the group list will be shown in the recipient dropdown list.

“Allow user enter share name”

By default the file name or folder name is used for the share name. However, if user has many same name folders or files. Sharing them out sometimes many not know which is which. This setting allows user to change share name. For example, when sharing out a “Documents” folder, it can be named “Documents in top level folder”.

“Don’t append email to shared object name under ‘Files Shared With Me’”

When enabled, emails won’t show next to object names in ‘Files Shared With Me’ view.

“Disable folder sharing”

When enabled users will not be able to share folders.

“Enforce password protection”

When enabled all users (including guest users) will be required to use complex password protection.

“Expiration Time for Shared Folder/File (Days):”

When set, during the file/folder sharing wizard, the expiration time dropdown selection will not be shown, it will be pre-set to expiration set in here.

“Maximum Share Expiration Time (Days):”

When set, this creates an upper limit to the time a share will be available, which forces all shares to expire when this limit is reached.

“Expiration Time for public links (Days):”

If left as zero, public link will never expires, otherwise the public link will be purged after expired.

“Don’t create a guest user account if the recipient is from the following domains (i.e. company.com;company1.com)”

Blacklist guest emails from the domains listed here. Do not allow sharing to these domains.

“Only allow sending shares to the specified domain”

You can further limit the sharing to some domain instead of random email. For example, if your primary collaboration target is with ACME corporation and you can limit the sharing to your domain and also ACME domain.

“Default folder to store attachments from Outlook plugin (/folder/subfolder)”

Allows you to designate where Outlook attachments are saved.

File Locking Settings

`Tenant Management Console > Group Policy > Common Settings > File Locking

_images/image_s5_6_13a.png

FILE LOCKING SETTINGS

Settings under file locking applies to all clients which include desktop clients as well as server agent clients.

“Enable Distributed locking when accessing files”

In the Cluster Server, there are two ways to lock files, one is manually by right clicking on a file and select “Check out”. The other way is automatic based on certain binary executables. For example, you can see Microsoft Office executable files like winword.exe and so on.

“Lock file exclusively”

When set, the other user won’t be able to open the file for edit or read.

“Automatically open file in read only mode when file is locked and “Lock file exclusively” is not checked.”

When this setting is enabled (default), a second attempt to open a locked file will result in the file opening in read-only mode. If “Lock file exclusively” is checked, then second user will not be able to open a locked file.

“Delay sync until file is unlocked”

It is recommended to check this setting. Most users have habit to save files in the middle of editing. You don’t want these edit to go every time to the cloud for these intermediate saves. You want to do a save to the cloud at the end like a grand finale. So you can delay sync until file is unlocked.

“Unlock file after file is uploaded”

After the file is uploaded, unlock the file.

“Lock file natively on network shares”

When a file is locked in the CentreStack Server, if the file is from an attached network share, the CentreStack Server lock will be converted into a native file system lock on the network share. This provides locking interoperability between the CentreStack Server and the underlying file system network share.

“Enable scheduled sync for files with following extensions (i.e.[.mdb][.qbw]) when the file is locked”

When files are locked, the client will consolidate multiple changes into one upload event and use Volume Shadow Copy to avoid interfering with applications that are using the files. Typically this applies to database files that are constantly in use and constantly actively writing (commit) to the database file.

“How often to sync the files with above extensions”

This setting allows you to control the interval of synchronization that takes place on the above file extensions.

“Apply lock only to the following processes (Lower case)”

You can specify the processes here for which locking should be applied. By default, locking is enabled for Microsoft Word, Excel, and PowerPoint.

“Apply lock only to the following MAC processes”(Lower case)

You can specify the processes here for which locking should be applied. By default, locking is enabled for Microsoft Word, Excel, PowerPoint and MAC text editor.

“Locking is disabled for files with the following extensions (i.e.[.xml][.exe])”

You can use this setting to specify which file types will be ignored with regard to the file-locking feature.

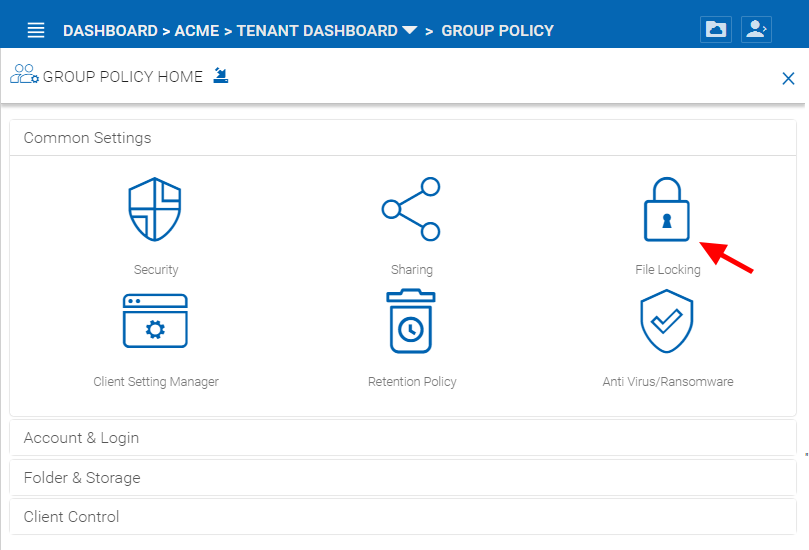

File Locking

Tenant Management Console > Group Policy > Common Settings > File Locking

File Locking can be accessed from the following location in the Tenant Dashboard’s Group Policy section.

_images/image_s5_6_13.png

GROUP POLICY FILE LOCKING

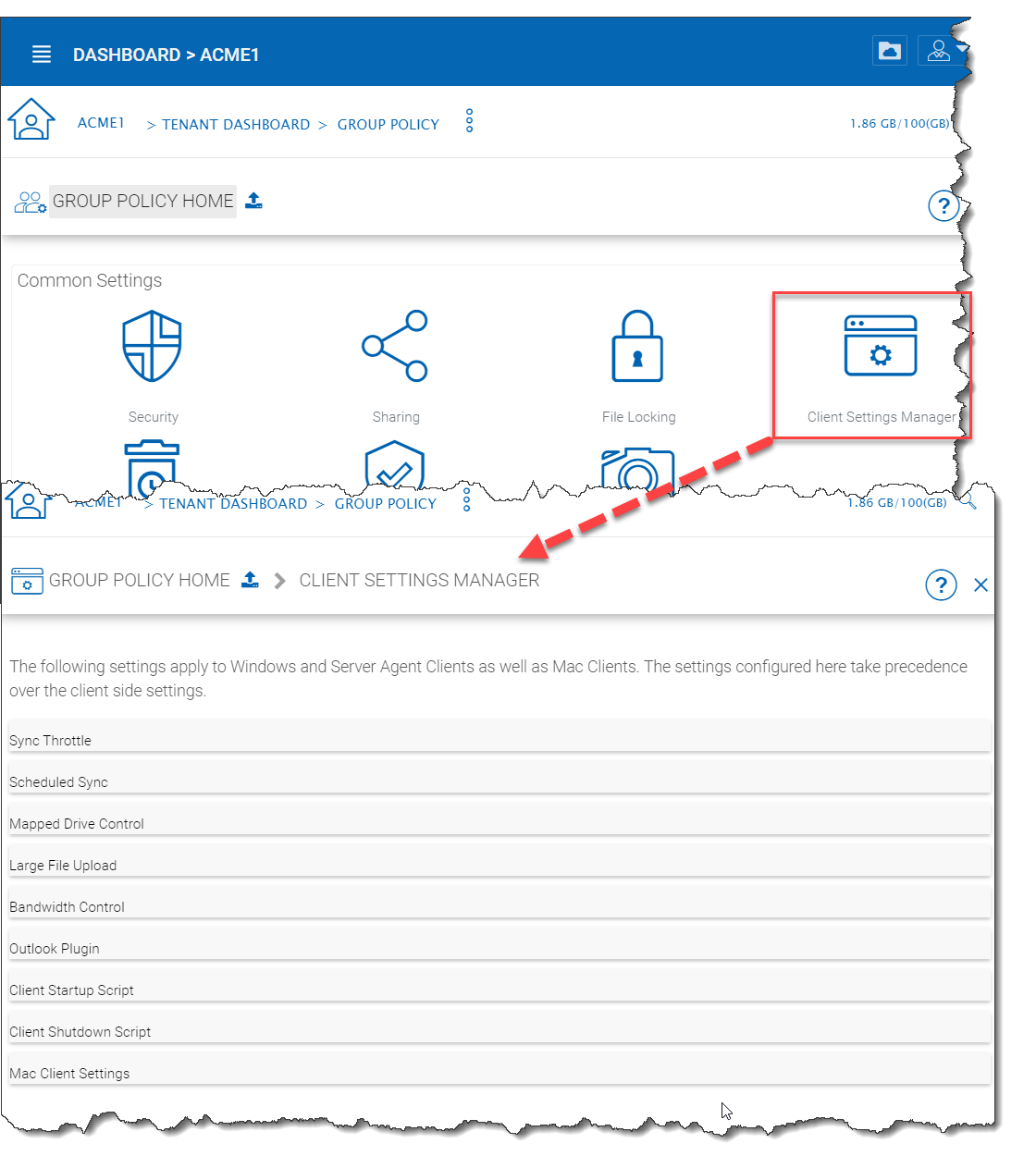

Client Setting Manager

Tenant Management Console > Group Policy > Common Settings > Client Setting Manager

_images/image_s5_6_14.png

GROUP POLICY CLIENT SETTING MANAGER

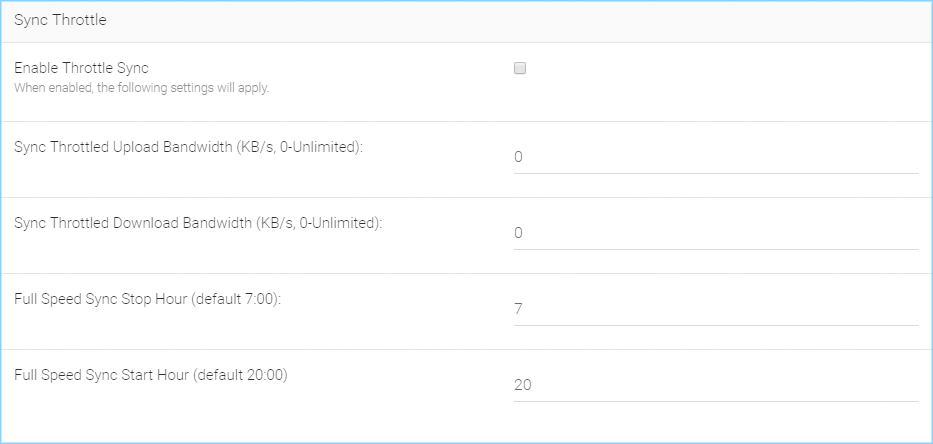

Sync Throttle
_images/image_s5_6_14a.png

SYNC THROTTLE SETTINGS

Enable Throttle Sync

When disabled (default) all Sync Throttle settings in this section are disabled. Must be enabled to activate the following settings.

Sync Throttled Upload Bandwidth (KB/s, 0-Unlimited):

This setting controls the upload bandwidth from the client machine.

Sync Throttled Download Bandwidth (KB/s, 0-Unlimited):

This setting controls the download bandwidth from the client machine.

Full Speed Sync Stop Hour (default 7:00):

Full speed sync means multiple thread concurrent upload or download. This is typically good for after hour activity. We recommend default setting stop at 7am so when people return to work, the full speed sync stops so to give back more bandwidth to users who may be using the Internet for other purposes.

Full Speed Sync Start Hour (default 20:00)

Similar to the above setting, we recommend start full speed sync after working hours.

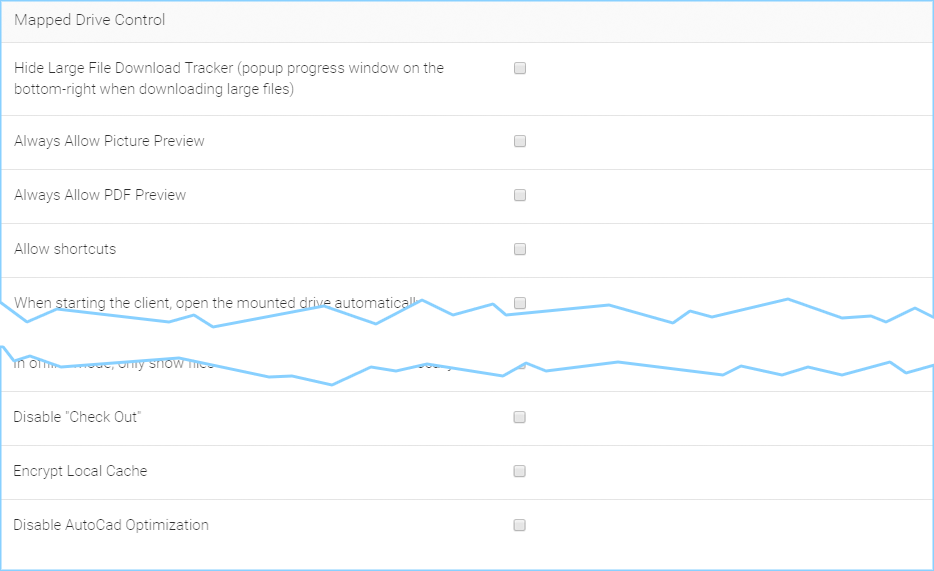

Mapped Drive Control
_images/image_s5_6_14b.png

MAPPED DRIVE CONTROL SETTINGS

Hide Large File Download Tracker (popup progress window on the bottom-right when downloading large files)

This is usually good for usability but people may find it annoying if download is popping up a download progress dialog at the lower right corner.

Always Allow Picture Preview

Windows Explorer may want to download pictures in the background to generate thumbnails. This consumes bandwidth and may slow system down until all the preview thumbnails are generated. By default the client program disables the preview. However you can re-enable it.

Allways Allow PDF Preview

Windows Explorer may want to download PDFs in the background to generate thumbnails. This consumes bandwidth and may slow system down until all the preview thumbnails are generated. By default the client program disables the preview. However you can re-enable it.

Allow shortcuts

Allow shortcuts (.lnk) files.

When starting the client, open the mounted drive automatically

Enabling this opens the mounted drive in Windows Explorer when the client starts.

Do not show file change notifications

This is another feature that shows file change notification at the lower right hand corner of Windows desktop. People may find it annoying if the change notification comes in quite often.

Do not show file in-place editing/preview disabled notifications

This feature also shows file change notification at the lower right hand corner of Windows desktop. People may find it annoying if the change notification comes in quite often.

Enable Inplace Open Zip File

Windows Explorer has zip built-in extension that can open a zip file when double clicked on. It maybe good for local drive but for cloud drive, that means the zip file is unzipped and re-upload back into the cloud. By default client application disables opening zip file directly in the cloud drive.

Enable Single Sign On with login windows user identity

Enable Single Sign On with Login Windows User Identity - For Windows client agent running on a Windows Desktop machine, the login windows’ user’s identity will be used for single sign on to the CentreStack Server account.

Max Size of Zip File Allowed to Open In-place (MB)

Limits the size of a Zip File that can be opened in-place.

Max Size of File Allowed to Generate Thumbnail (MB)

Limits the size of Files that can be used in the generation of thumbnails.

Cloud Drive Label

What do you want to call your windows client drive.

Drive Letter

What do you want to give the drive letter to the client application.

Cache Size Limit (MB)

The Windows client maintains a client-side cache of this size (0 - unlimited)

Minimal free disk space (GB)

This setting is used to establish a minimum amount of disk space used for the windows client drive.

Purge logging db n days old (0 - don’t purge)

This limits how many days of logging are kept in the Windows client cache.

Mount Drive in global space (Windows Client Only)

A drive mounted in the global space will not be subject to UAC (User Account Control) limitations, such as when legacy applications are required to run with administrative privilege and cannot see the drive guarded by the UAC. On the other hand, drives that are mounted in the global space are visible to any other users who log in on the same Windows machine at the same time.

In offline mode, only show files that are chached and available locally

Typically there will be place-holder files and representative icons created for all of the files in the client drive. If this setting is enabled, only locally stored files will be shown.

Disable “Check Out”

Turn off the “Check Out” feature and remove it from the right-click context menu.

Encrypt Local Cache

Once enabled, when a file is downloaded to cache, it is encrypted in-place. When an authorized user then accesses the file from the (M:) Mapped Cloud Drive, CentreStack automatically decrypts it on the fly and then returns it to the user.

Disable AutoCad Optimization

By default, there is an AutoCad optimization that delays the synchronization of updated .dwg file and schedules it to sync upwards to cloud at a later time. Use this setting to disable this AutoCad optimization and make saving AutoCad .dwg files act the same as saving other regular files and lets .dwg file behavior follow other policy settings.

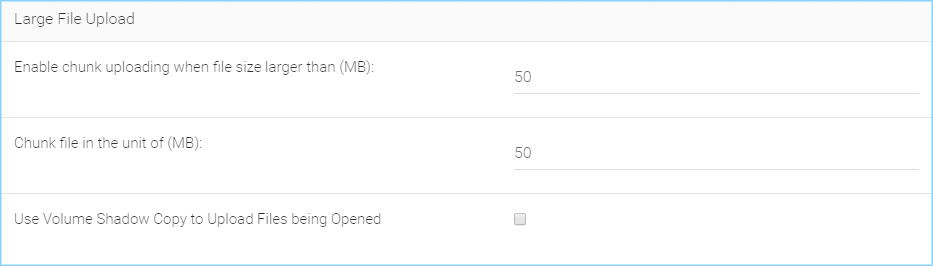

Large File Upload
_images/image_s5_6_14c.png

LARGE FILE UPLOAD SETTINGS

Enable chunk uploading when file size larger than (MB)

Uploading a single large file can be disrupted by an Internet glitch. This setting breaks large files into smaller chunks to increase the success rate.

Chunk file in the unit of (MB):

Works with the above setting to establish what size the chunks will be in as they are transferred.

Use Volume Shadow Copy to Upload Files being Opened

There is pro and con of using this flag. When file is open by other application, the file usually is locked and can’t be uploaded until the file is closed. However using volume shadow copy can still upload the file. The down side is when the volume shadow copy happens, the file is not known to be in a consistent state.
Endpoint Protection
_images/image_s5_6_14d.png

ENDPOINT PROTECTION SETTINGS

Backup “My Documents” folder

Forces files in “My Documents” to be backed-up to the cloud.

Backup to location (Leave empty for default location. e.g., myroot/{email} or {samAccountName} or {upn}/My Pictures)

Allows you to set an alternative storage location for the above setting.

Backup “My Pictures” folder

Forces files in “My Pictures” to be backed-up to the cloud.

Backup to location (Leave empty for default location. e.g., myroot/{email} or {samAccountName} or {upn}/My Pictures)

Allows you to set an alternative storage location for the above setting.

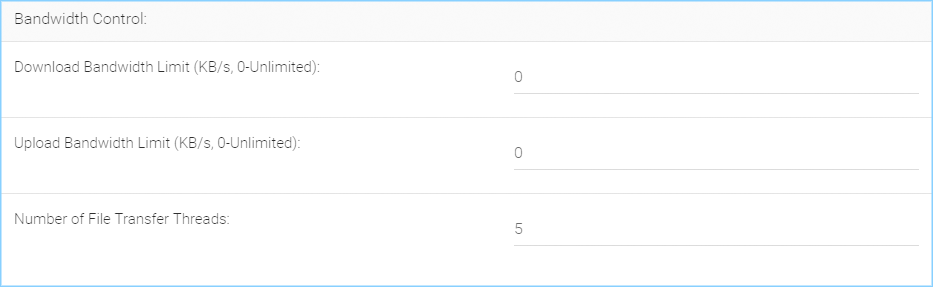

Bandwidth Control
_images/image_s5_6_14e.png

BANDWIDTH CONTROL SETTINGS

Download Bandwidth Limit (KB/s, 0 - Unlimited):

This is download bandwidth control.

Upload Bandwidth Limit (KB/s, 0 - Unlimited):

This is upload bandwidth control.

Number of File Transfer Threads:

This is the number of concurrent upload/download allowed (default is 5).

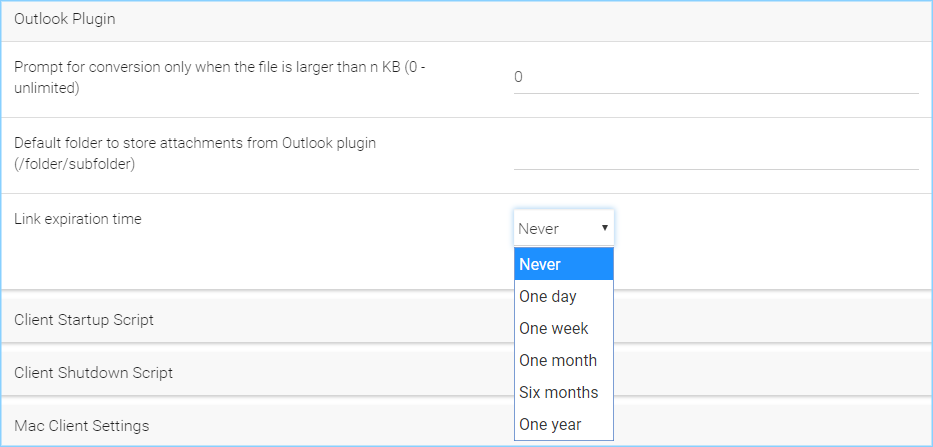

Outlook Plugin
_images/image_s5_6_14f.png

OUTLOOK PLUGIN SETTINGS

Prompt conversion only when file is larger than n KB (0 - unlimited)

For smaller files, it may be as well to just use the native outlook attachment.

Default folder to store attachments from Outlook plugin (/folder/subfolder)

Allows you to set a storage location for the above setting.

Link expiration time

Allows Outlook share link to last indefinately or expire in a specified timeframe (e.g., never, one day, one week, one month, six months, one year).
Client Startup Script

After the Windows client is completely started and finished loading, a command line script can be run. You can be upload that script here. For example, a script to map an additional drive letter to a specific folder inside the cloud drive.

Client Shutdown Script

Right before the Windows client is completely shutdown and finished running, a command line script can be run. You can upload that script here. For example, a script to clean up any reference to folders and files inside the cloud drive.

Mac Client Settings

Do not show Mac Client sync status pop up dialog

This is usually good for usability but people may find it annoying if the file status is popping up a progress dialog at the lower right corner.

Start Mac Client automatically

(Enabled by default.) If this is disabled, the Mac Client must be started manually.

Retention Policy

Tenant Management Console > Group Policy > Common Settings > Retention Policy

_images/image_s5_6_15.png

RETENTION POLICY SETTINGS

The cloud monitoring service on the Cluster Server will be responsible for the retention policy. The settings of the retention policy are described below.

“Keep last n version(s) of files in versioned folder.”

This setting lets you decide how many versions of files to keep in the version folder. (0 - let system decide, also apply to “attached local folder’)

“Only purge versioned files that are more than n day(s) old:”

This is a security feature. For example, there is a virus modified the same file many times so it created many versions causing good old versions to be scheduled for deletion. However, with this set, the good old versions will be kept for at least the amount of days so give enough time to recover. (0 - purge old versions once they exceed the version limit, regardless of the version lifespan)

“Keep deleted files in versioned folder and/or Trash Can for n day(s).”

When a file is deleted in the version folder, it is not actually deleted. It will be kept for several days defined here. The same policy also apply to

“Keep file change log for n day(s).”

file change log is the biggest database table and could be growing without trimming. You can decide how often you want to trim the table.

Note

There is also a cluster setting about the file change log length. The cluster setting overrides the per-tenant setting.

“Keep audit trace for n day(s).”

audit trace log is stored in a local device directory and keeps a record of high-level activity from a device (e.g., windows client, server agent). This setting limits the number of days that are stored in the local database file.

“Hide purge option from web file browser (not applicable to tenant administrator)”

Do not show the purge window to users when deleting content.

“Don’t send email notifications when purging deleted content”

There are times when an admin would not want to send or see delete email notifications for purged contents.

“Include deleted but not yet purged items in storage quota”

Allows you to decide if you want to include not visible (purged) files in the storage quota that is used.

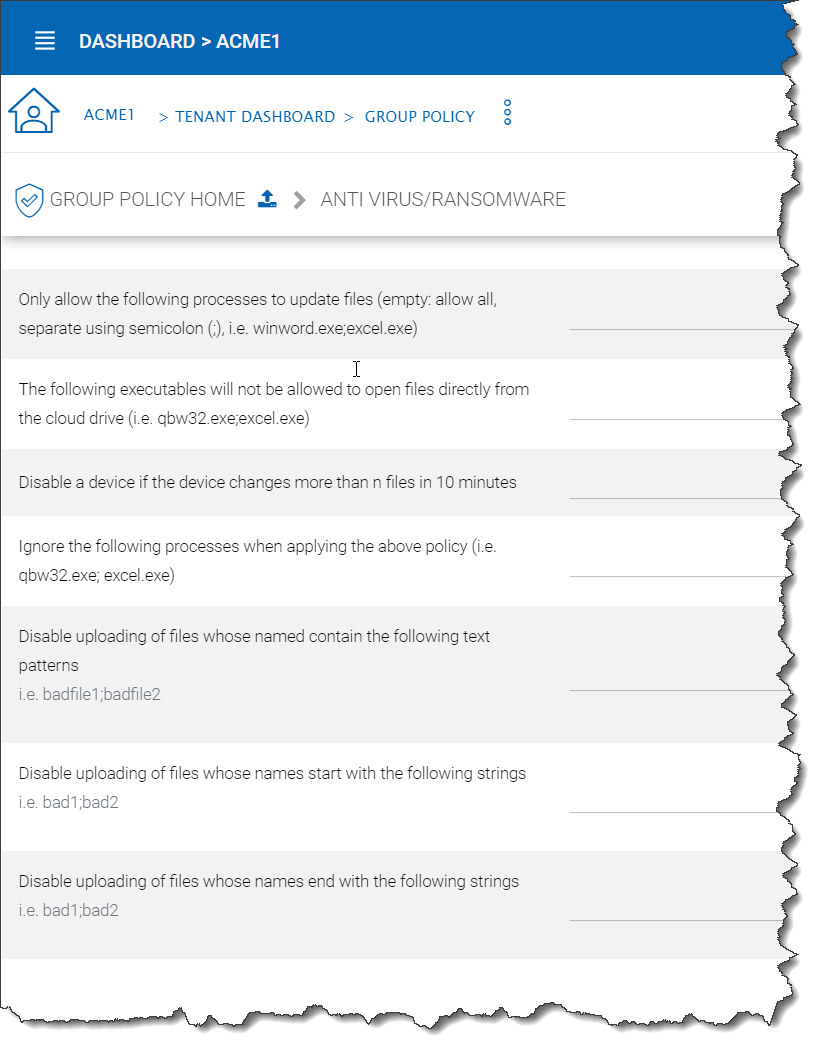

Anti Virus

Tenant Management Console > Group Policy > Common Settings > Anti Virus

_images/image_s5_6_16.png

ANTI VIRUS SETTINGS

Only allow the following processes to update files (empty: allow all, separate using semicolon (;), i.e. winword.exe;excel.exe)

This is a white list of applications that are allowed to update files. The applications that are not in the list will not be able to upload files.

The following executables will not be allowed to open files directly from the cloud drive (i.e. qbw32.exe;excel.exe)

This is the opposite of the above policy. The applications in this list will be denied.

Disable a device if the device changes more than n files in 10 minutes

When users are using the cloud drive in a normal way. Human speed will not be able to generate large amount of file upload.

Ignore the following processes when applying the above policy

This is a white list of files that will not be monitored for the activity described above. (e.g., qbw32.exe; excel.exe)

Disable uploading of files whose named contain the following text patterns

When file name text contains the following strings, the files will not be uploaded. (e.g., badfile1; badfile2)

Disable uploading of files whose names start with the following strings

When the starting text of files contain these strings, the files will not be uploaded. (e.g., bad1; bad2)

Disable uploading of files whose names end with the following strings

When the ending text of files contain these strings, the files will not be uploaded. (e.g., bad1; bad2)

5.6.2 Account & Login

Tenant Management Console > Group Policy > Account & Login

_images/image_s5_6_20.png

ACCOUNT AND LOGIN SETTINGS

User Account Settings

Tenant Management Console > Group Policy > Account & Login > User Account

This is how “User Account” settings looks when “2-Step Verification is not turned on by the Cluster Manager.

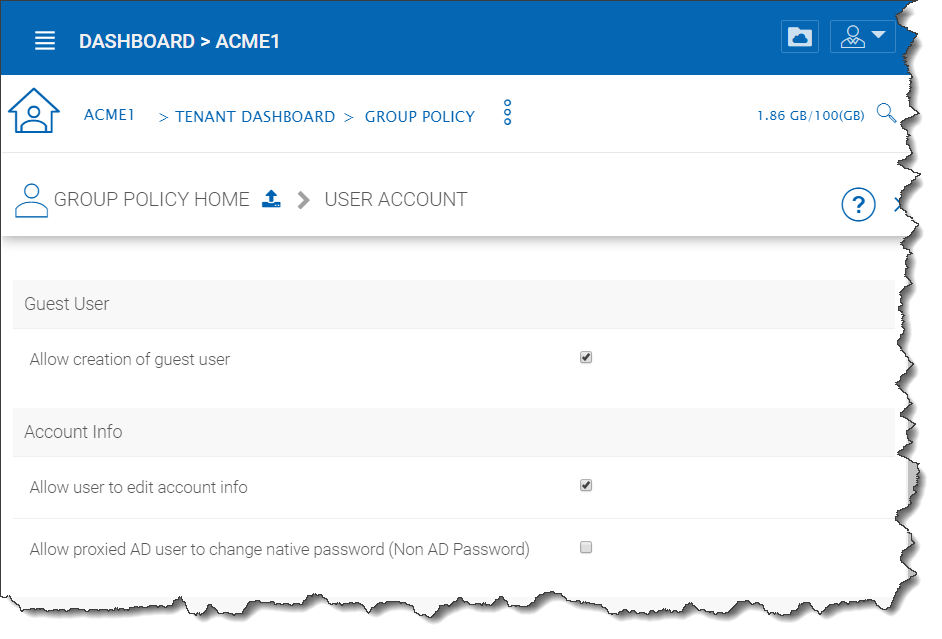

_images/image_s5_6_21.png

GROUP POLICY USER ACCOUNT SETTINGS

Guest User

“Allow creation of guest user”

When enabled (default), you will allow creating of guest user when team user share files or folders with external users. When disabled, the file/folder sharing is limited to regular users only or anonymous users only.
Account Info

“Allow user to edit account info”

When enabled (default), this setting allows users to edit their account information.

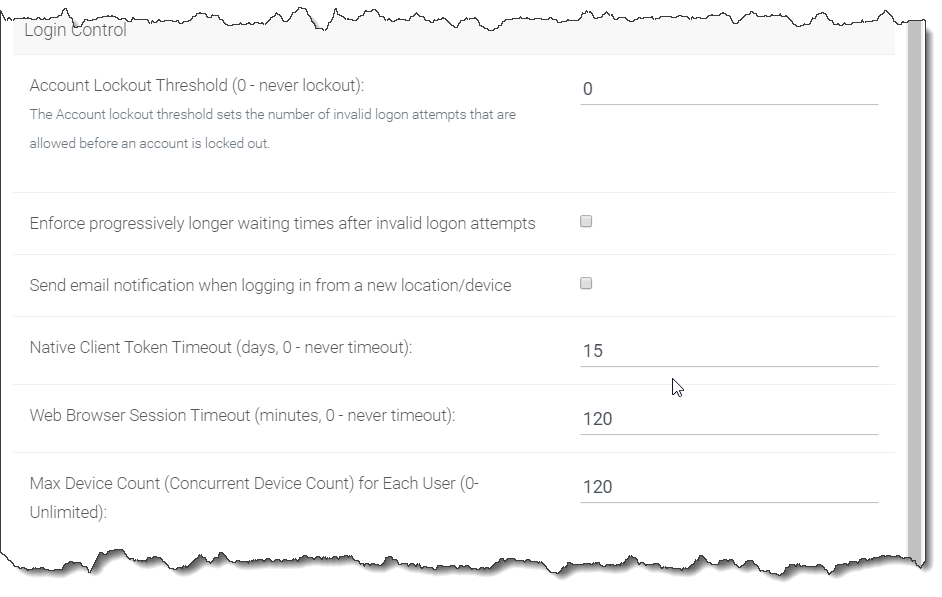

Login Control

“Account Lockout Threshold (0 - never lockout):”

You can specify the Account lockout threshold limit here. The limit specified will be the number of invalid logon attempts that will be allowed before an account is locked out. Default is 0 (never lockout).

“Enforce progressively longer waiting times after invalid logon attempts”

Disabled by default. Under login control, you can also enforce progressively longer waiting times after invalid logon attempts.

“Send email notification when logging in from a new location/device”

Disabled by default. Another setting under login control is the ‘Send email notification when login from new location/device’. This setting will send an email to users whenever a different device or location is used to login.

“Native Client Token Timeout (days, 0 - never timeout):”

Determines if and when the Native Client Token will timeout, in days. Default is 15 days.

“Web Browser Session Timeout (minutes, 0 - never timeout):”

Determines if and when the Web Browser Session timeout, in minutes, will occur. Default is 120 minutes.

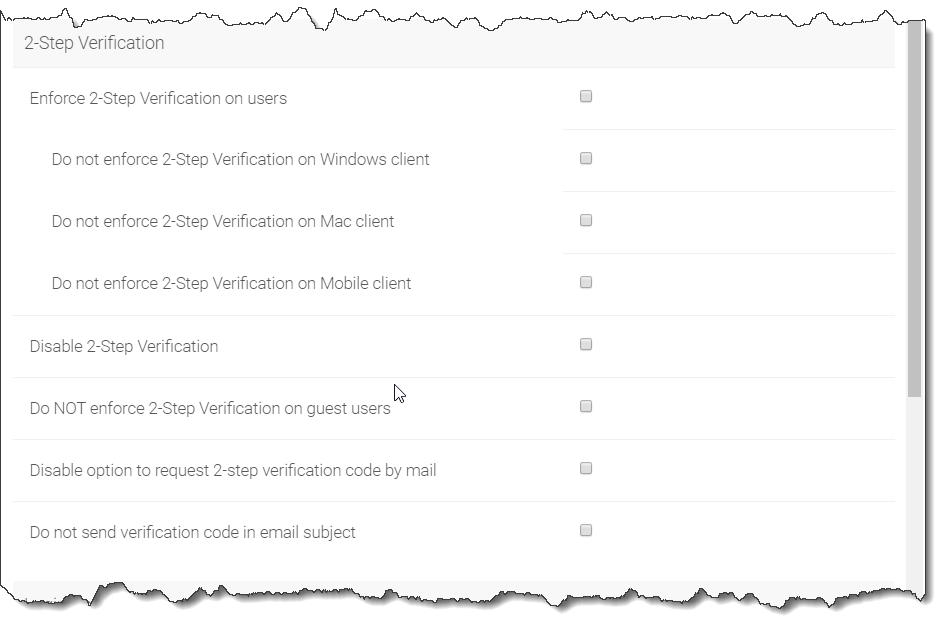

2-Step Verification

These settings will appear under the User Account settings only when the Cluster Manager has enabled 2-Step Verification is turned on in Cluster Control Panel > Settings.

_images/image_s5_6_21a.png

2-STEP VERIFICATION SETTINGS

“Enforce 2-Step Verification on users”

Disabled by default. When 2-Step verification is enabled, enforce it for all tenant users.

You can determine which device users are required to use 2-Step Verification by setting these options.

  • Do not enforce 2-Step Verification on Windows client
  • Do not enforce 2-Step Verification on Mac client
  • Do not enforce 2-Step Verification on Mobile client

Disable 2-Step Verification

When 2-Step verification is enabled, disable it.

Do NOT enforce 2-Step Verification on guest users

When unchecked (default), guest users are required to use 2-Step verification if it is enforced above. Enable this option if you want to allow guest users access without 2-Step verification.

Disable option to request 2-step authentication code by mail

When unchecked (default), users can request 2-step authentication codes by email. Enable this to remove this option.

Do not send authentication code in email subject

When unchecked (default), users will see the authentication code in the email subject line. Enable this to remove the authentication code from the subject line.

Password Policy Settings

Tenant Management Console > Group Policy > Account & Login > Password Policy

Here you can adjust your password policy settings.

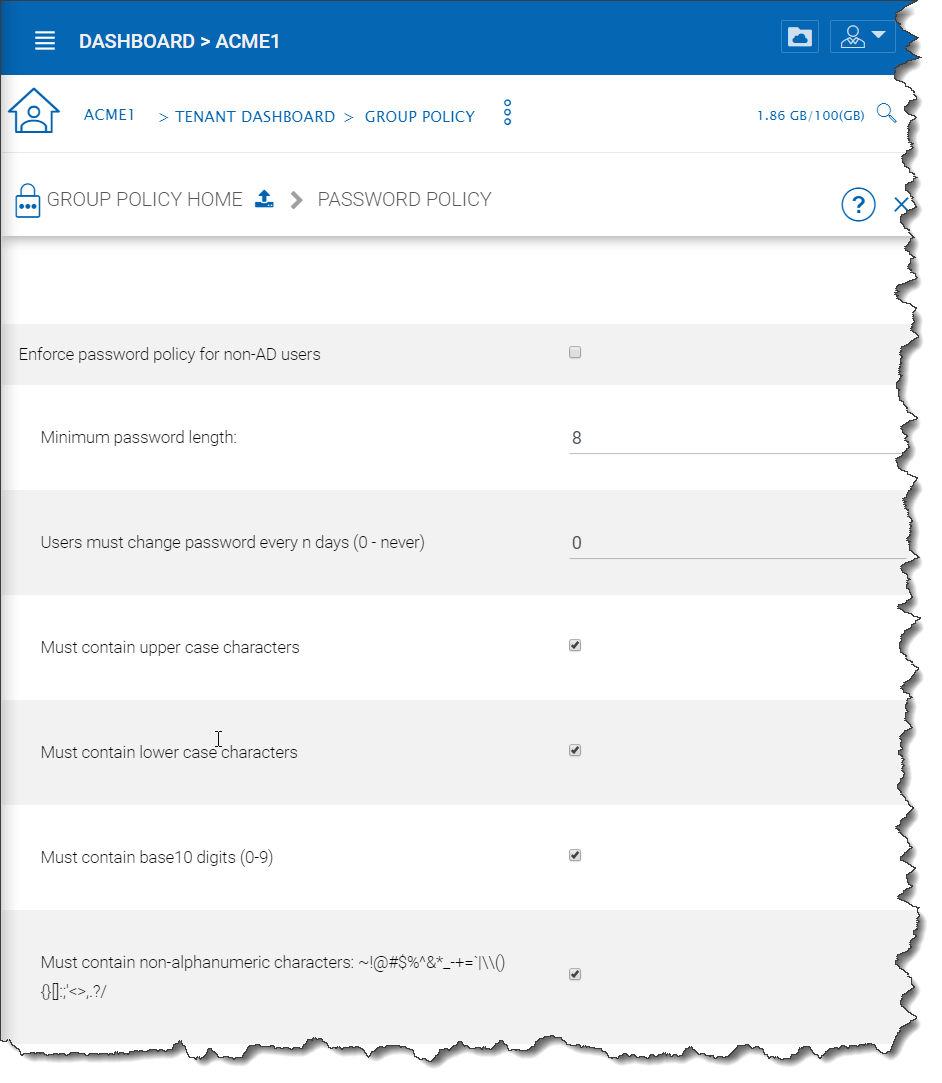

_images/image_s5_6_22.png

PASSWORD POLICY SETTINGS

Enforce password policy for non-AD users

By default, non-AD users are not enforced to use this policy when setting their passowrd. Enable this to enforce the following rules.

Minimum password length:

Require the password to contain a certain number of characters as a minimum. Default is 8.

Users must change password every n days (0 - never)

Force users to change their passwords every so many days. Default is 0 (never).

Must contain upper case characters

Enforce the use of upper-case characters in the password. Default is enabled.

Must contain lower case characters

Enforce the use of lower-case characters in the password. Default is enabled.

Must contain base10 digits (0-9)

Enforce the use of base10 digits in the password. Default is enabled.

Must contain non-alphanumeric characters: (e.g., ~ ! @ # $ % ^ &)

Enforce the use of special non-alphanumeric characters when creating a password. Default is enabled.

Single Sign-On Settings

Tenant Management Console > Group Policy > Account & Login > Single Sign-On

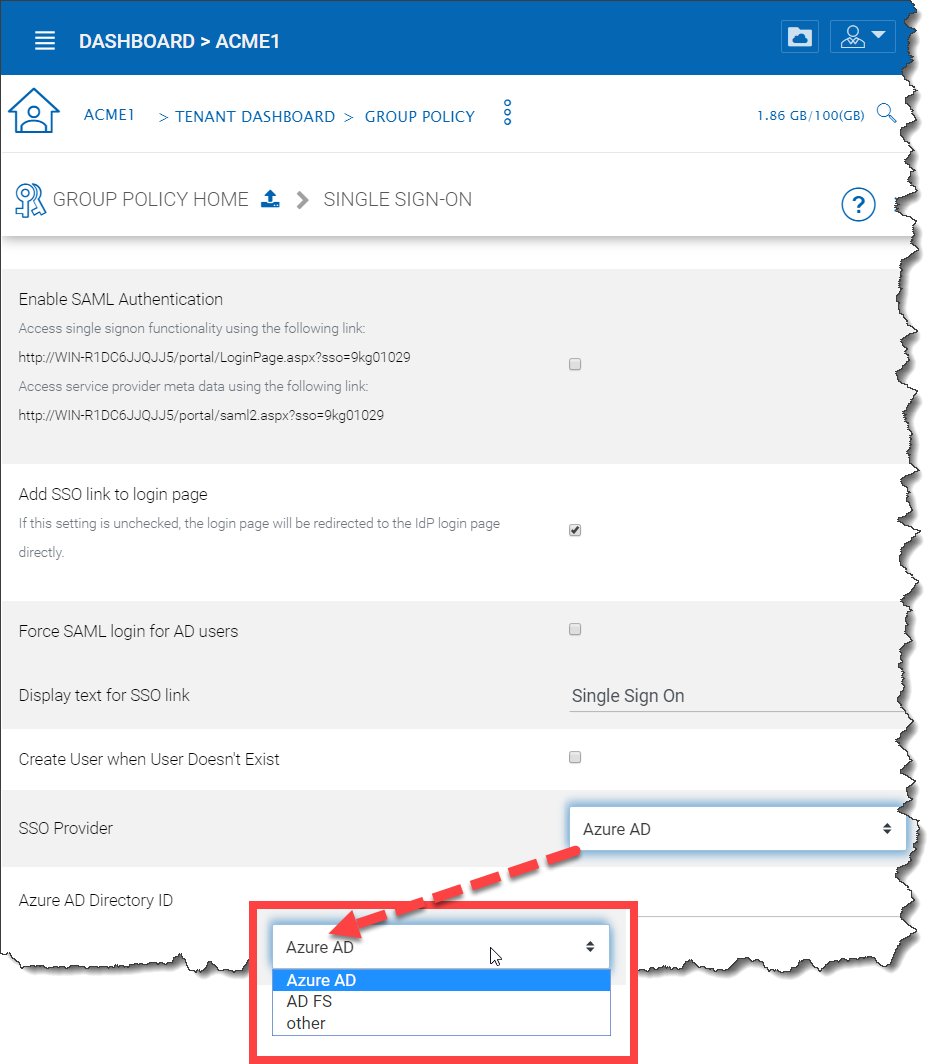

_images/image_s5_6_23.png

SINGLE SIGN ON (SSO) SETTINGS

Single Sign-On is available using SAML authentication.

When it comes to Single Sign-On support via SAML, there are always two parties.

  • One is the IdP (the identity provider)
  • and the other is SP (service provider)

A user will be registered with the identity provider and use the service from service provider. The setup here is to allow service provider (the Cluster Server) to use an identity provider.

Here, The IdP will be a public IdP such as SSOCircle and the SP will be the Cluster Server. The SSOCircle is used as an example to set up the IdP; it can work with other IdP as well.

In a multi-tenant Cluster Server deployment each tenant may want to have its own SSO service. Therefore, the Single Sign On is a per-tenant setting.

You can find the Single Sign-On setting under management console > group policy > security.

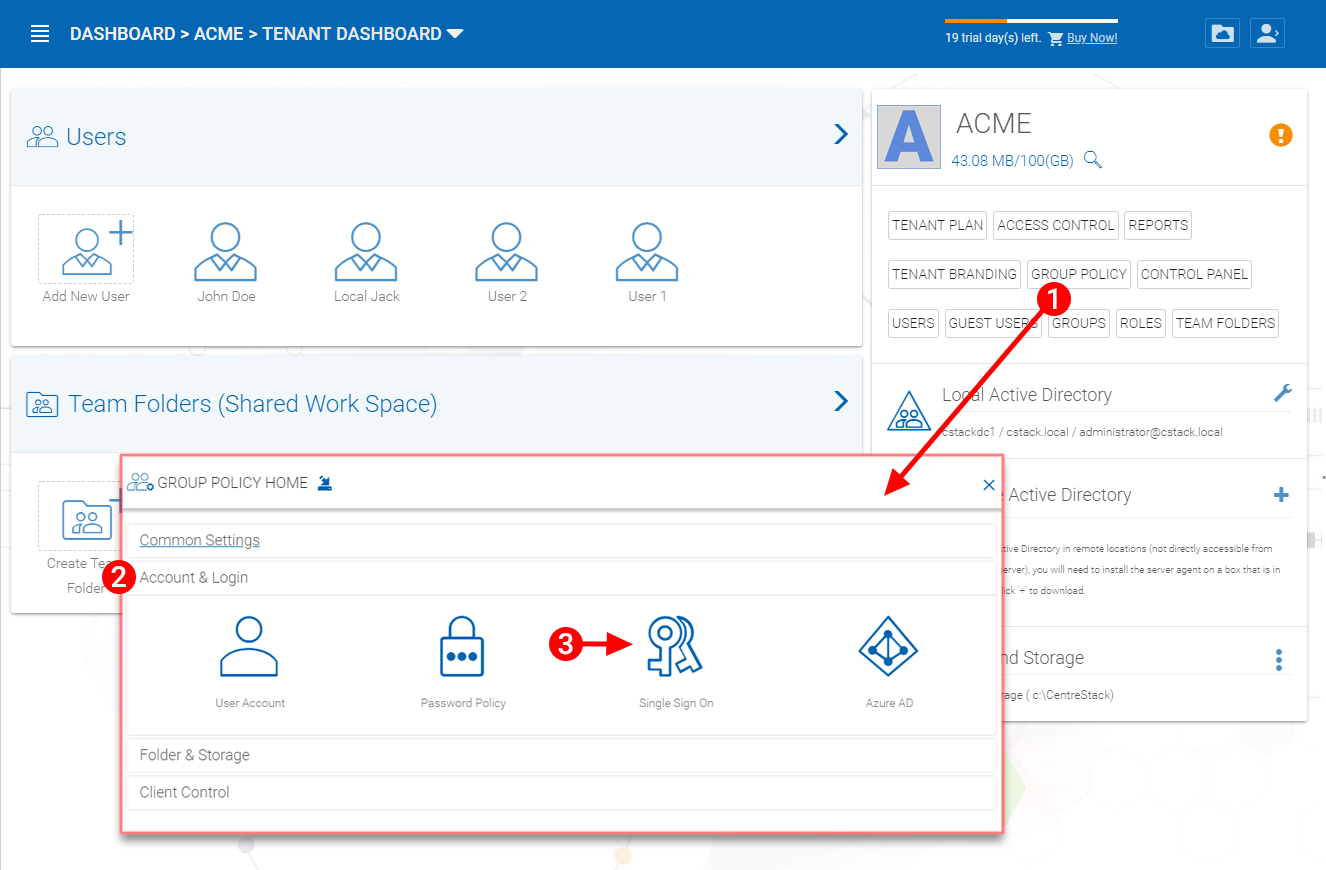

_images/image_s5_6_23a.png

ACCESSING TENANT GROUP POLICY SETTINGS

Step 1: Register the Cluster Server at IdP

IdP will need to register the Cluster Server as a service provider (SP) by importing the SP’s meta data. You will find the Cluster’s metadata at the following location (per-tenant setting).

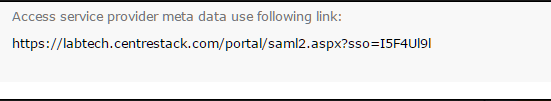

_images/image073.png

SERVICE PROVIDER META DATA LINK

We can use the following xml to register the Cluster as an SP at SSOCircle:

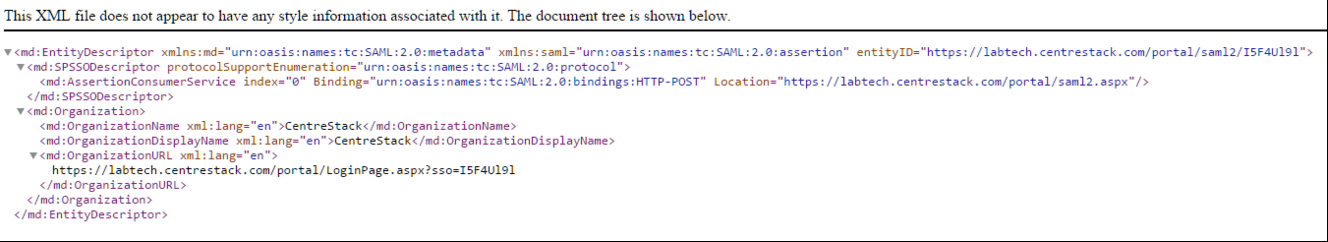

_images/image074.png

REGISTER CLUSTER SERVER AS AN SP AT SSOCIRCLE

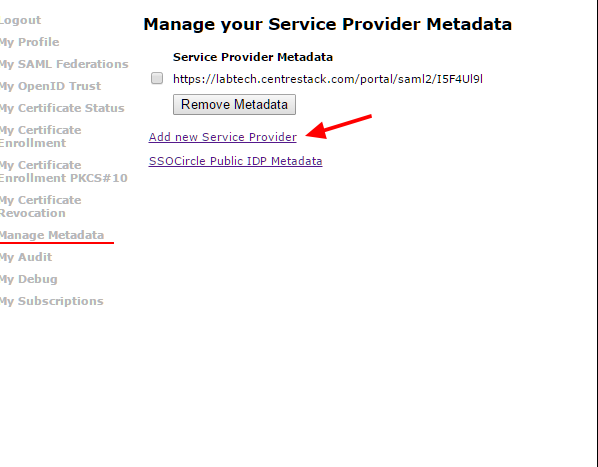

Now at the SSOCircle, need to add a new service provider:

_images/image075.png

ADD A SERVICE PROVIDER AT SSOCIRCLE

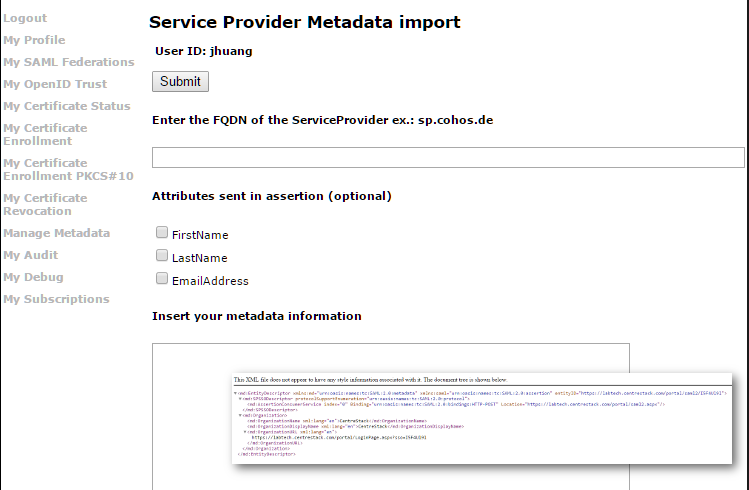

In the next screen we can paste in the xml from the Cluster side, set the FQDN to the URL contained within the XML, and check the 3 parameters, the FirstName, LastName and Email.

_images/image076.png

INSERT YOUR METADATA INFORMATION

Now the SSOCircle side of the registration is done.

Step 2: Register SSOCircle at the Cluster Server side

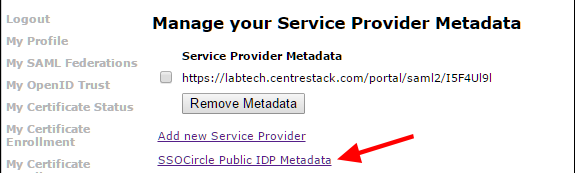

The IdP registration and SP registration is a two-way I trust you and now you trust me kind of manual setup.

_images/image077.png

MUTUAL TRUST SP REGISTRATION

The meta data from the SSOCircle look like this and it can be imported to the Cluster Server.

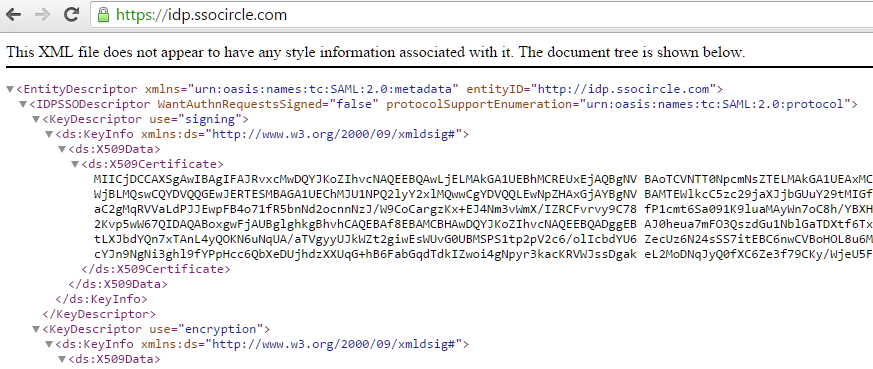

_images/image078.png

EXAMPLE OF SSOCIRCLE META DATA

Inside the meta data from SSOCircle, you will see there is a HTTP-Redirect URL, that will be the URL we use to register the IdP. And also register the 3 paramaters (FirstName, LastName, EmailAddress) from the IdP.

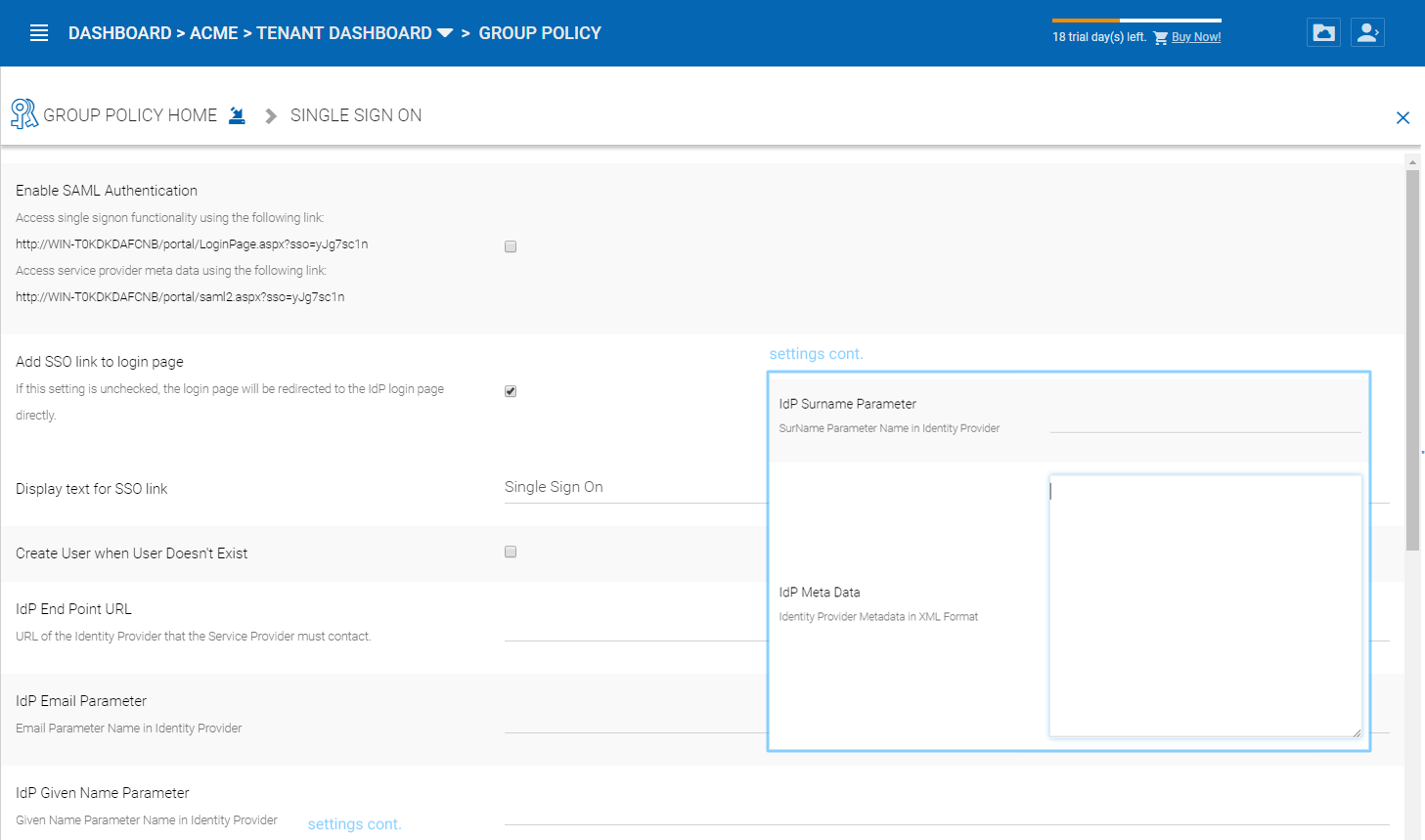

_images/image_s5_6_25.png

SINGLE SIGN ON SETTINGS

Step 3: Login at the IdP, but use service at SP

As the summary, the IdP and SP register each other’s meta data, register each other’s URL and parameters. After that, it will be single signon at the IdP side. The login will be at the IdP side, and after login, it will redirect back to the SP side.

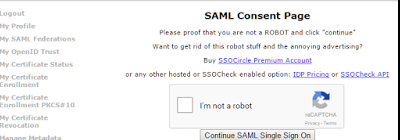

_images/image080.png

IDP SIDE SIGLE SIGNON

Azure AD

Tenant Management Console > Group Policy > Account & Login > Azure AD

Azure AD integration allows users to use their Azure AD credentials to login to the Cluster Server, including web portal and native clients.

You will still need to create Azure AD users as if they were local Cluster users first. After that, you can enable Azure AD integration.

To enable Azure AD integration, you will need to create an Azure AD native client application.

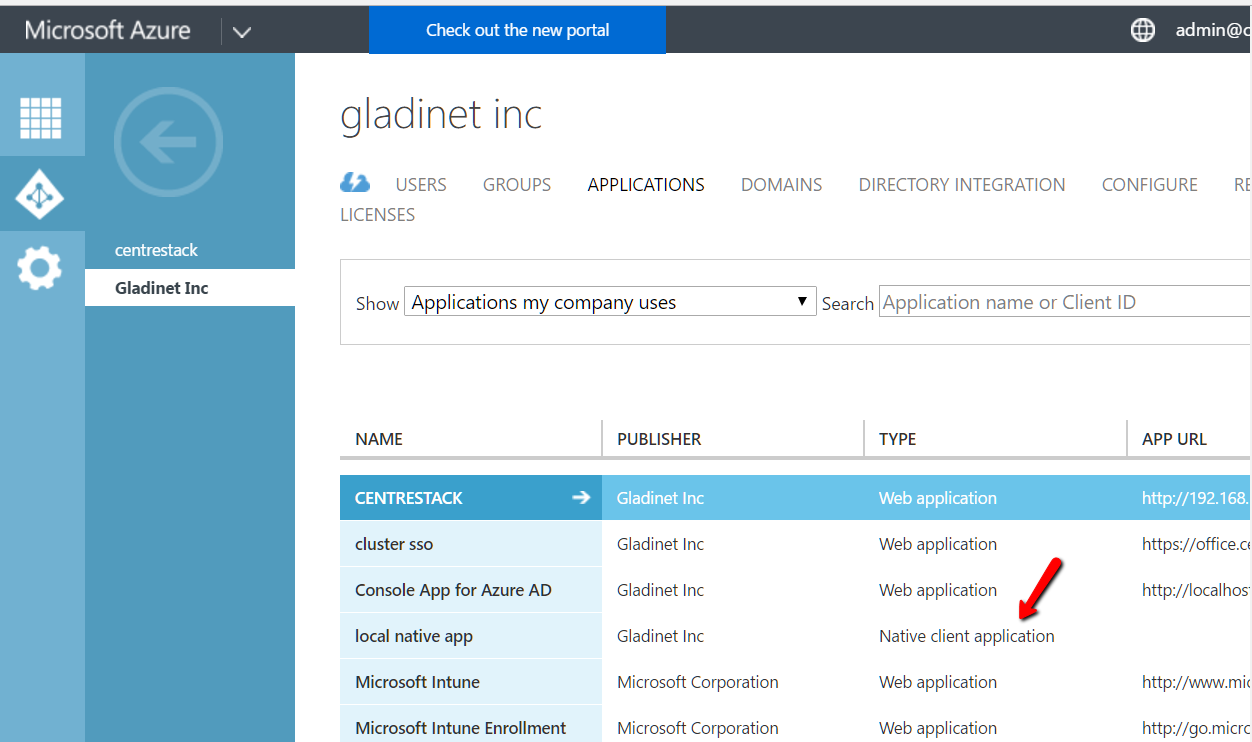

_images/image191.png

ENABLE AZURE AD INTEGRATION

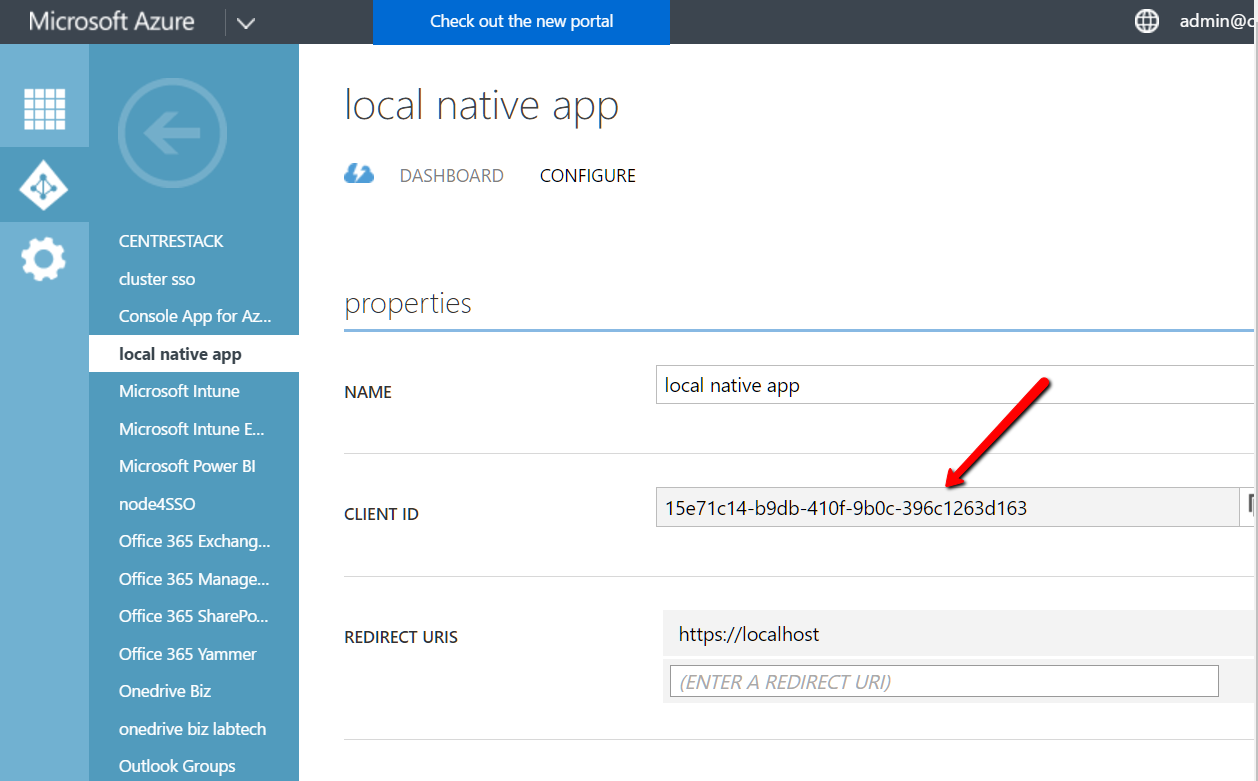

You will need the client id from the Azure Native Client Application

_images/image192.png

AZURE CLIENT ID FIELD

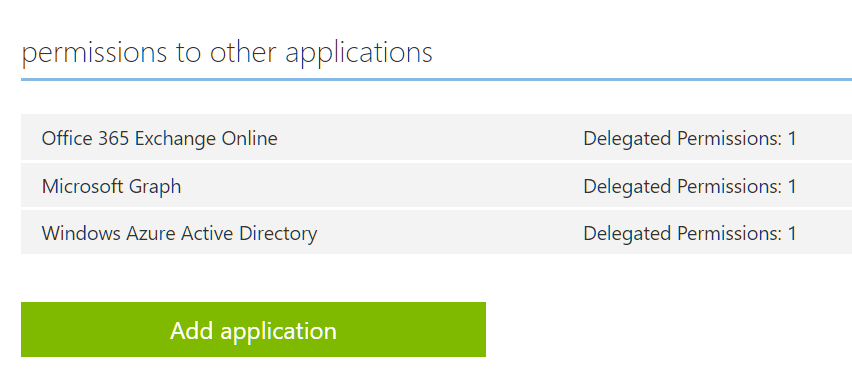

You will give the Azure Native Client Application full read permission to the following two items

  • Azure Active Directory
  • Microsoft Graph API
_images/image193.png

AZURE PERMISSIONS TO OTHER APPLICATIONS

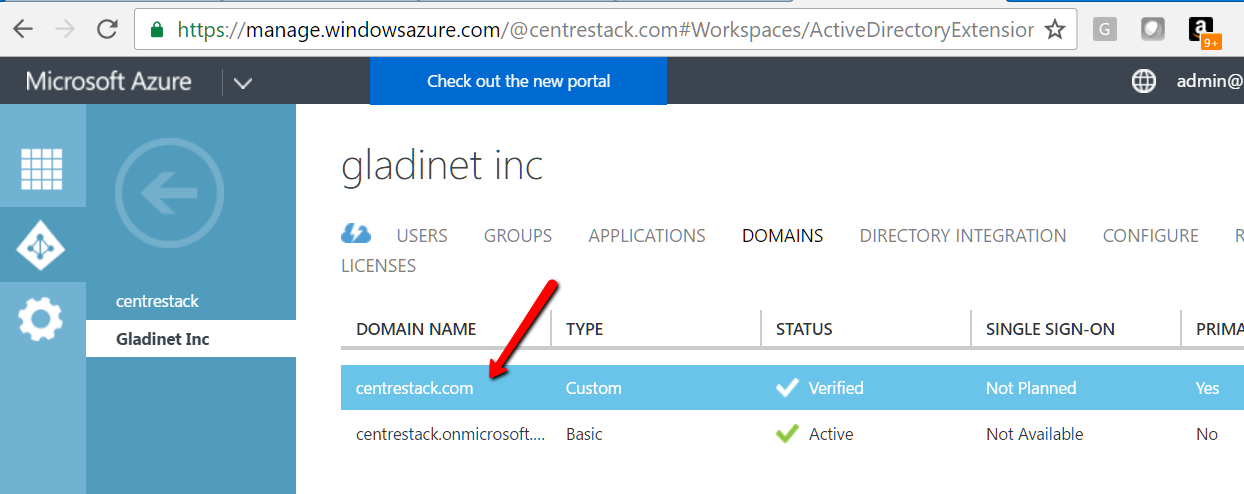

You will also need the domain name

_images/image194.png

AZURE DOMAIN SETTING

5.6.3 Folder & Storage

Tenant Management Console > Group Policy > Folder & Storage

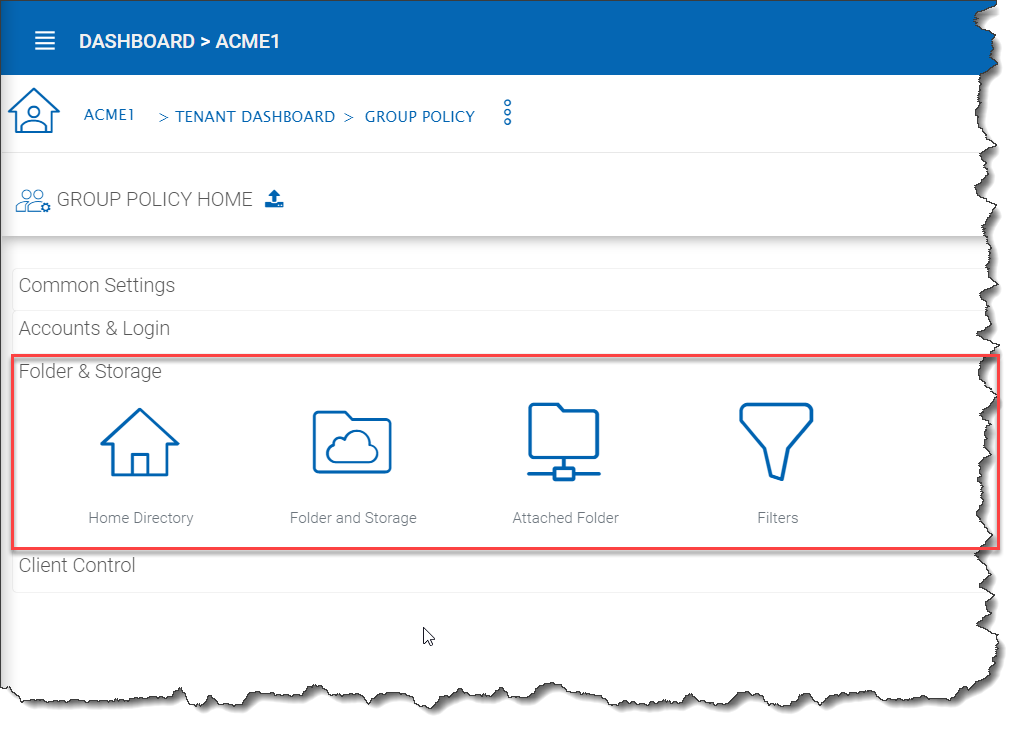

_images/image_s5_6_30.png

FOLDER AND STORAGE PANEL

These are the settings available to the tenant manager in the Folder and Storage view.

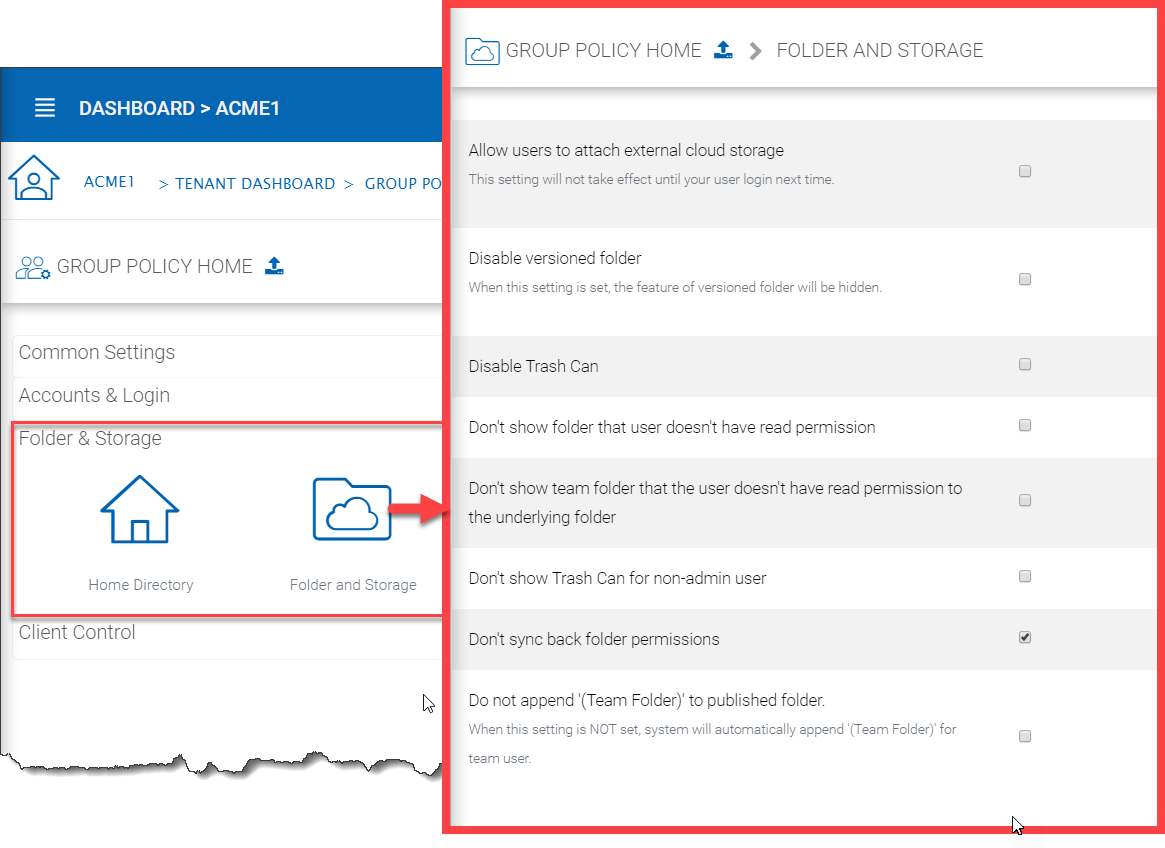

_images/image_s5_6_30a.png

FOLDER AND STORAGE SETTINGS

Allow users to attach external cloud storage

Disabled by default. After this is enabled, your user must log out and in again for this feature to take effect.

Disable versioned folder

Disabled by default. When this setting is enabled, the Versioned Folder feature will be hidden.

Disable Trash Can

Disabled by default. When this setting is enabled, the Trash Can feature will be hidden.

Don’t show folder that user doesn’t have read permission

Disabled by default. When this setting is enabled, users will not see folder for which they do not have permissions.

Don’t show Trash Can for non-admin user

Disabled by default. When this setting is enabled, users will not see the Trash Can unless they are administrators.

Do not append ‘(Team Folder)’ to published folder.

Disabled by default. When this setting is NOT enabled, system will automatically append ‘(Team Folder)’ for team user.

Home Directory

Tenant Management Console > Group Policy > Folder & Storage > Home Directory

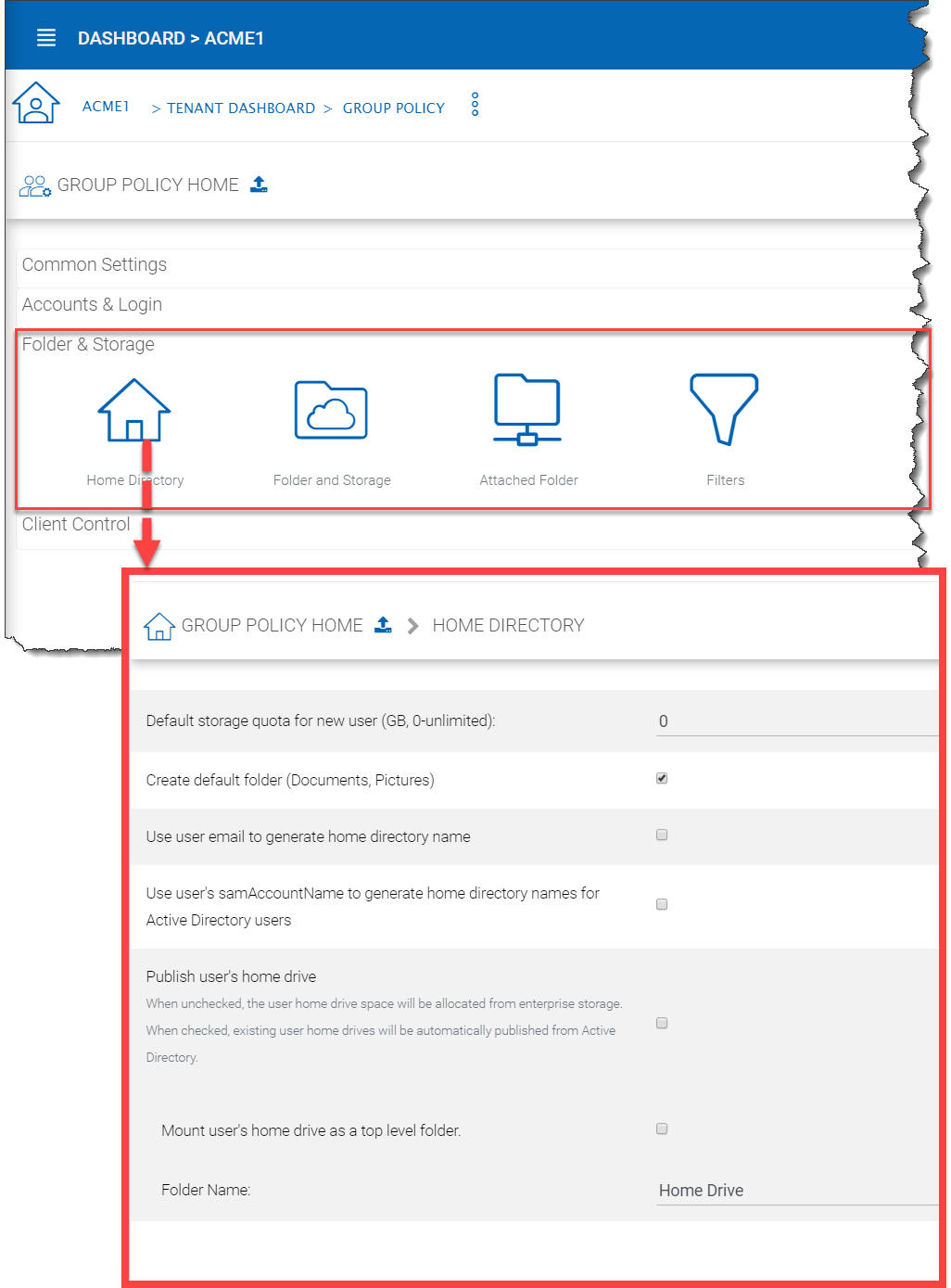

_images/image_s5_6_31.png

HOME DIRECTORY SETTINGS

“Default Storage quota”

This policy will not affect existing user and their quota. It can affect a newly created user for the default storage quota.

“Create default folders”

When the new user account is provisioned, the default root folder is empty.

“Create default folder (Documents, Pictures)” will make the root folder look less empty and more user-friendly. This hints at how to organize files and folders in the cloud.

“Use user email to generate home directory name”

The home directory name will be created using user’s email address.

By default, it is user’s GUID that is used to create user’s home directory.

“Use user’s sAMAccountName to generate home directory names for Active Directory users”

This option supports clients and servers from previous versions of Windows that use Security Account Manager (SAM)type user accounts.

Folder and Storage Settings

Tenant Management Console > Group Policy > Folder and Storage

_images/image_s5_6_31a.png

FOLDER AND STORAGE SETTINGS

“Allow users to attach external cloud storage”

when checked, you will allow users to see storage manager and allow them to attach external storage such as their own Amazon S3 bucket into the system.

“Disable Versioned folder”

Normally you will NOT disable versioned folder. Because versioned folder is the supporting feature for “Two-way sync locally attached folder”. If you disable versioned folder, you will lose the two-way synchronization folder feature as well.

Disable Trash Can

For folders that are not under version control, a deleted file will be moved into Trash Can. If this feature is not useful, you can disable it.

“Don’t show folder that user doesn’t have read permission”

With native Active Directory integration and with network share as backend storage, the user’s permission to the folders are checked natively. When this option is set, for those folders that users doesn’t have read permission, the folder will be hidden.

Don’t show Trash Can for non-admin user

Trash Can is a virtual folder that shows up at the web browser portal only. This setting controls whether or not to show it for regular team user.

“Don’t append (Team Folder) to published folders”

A team folder by default, when showing up in a team user’s folder list, it will have “(Team Folder)” appended to the end of the folder name to signify it is a team folder. This feature allows a team folder showing up as it is without the (Team Folder) suffix. The use case is that when a network share is mounted and then turned into a team folder, since the users are already familiar with the network share in its original name, so it is not necessary to append (team folder) to the folder name. You shouldn’t change this setting in the middle of operation because if users have pending upload/download, changing the name could cause those tasks to fail.

Attached Folder Settings

Tenant Management Console > Group Policy > Folder & Storage > Attached Folder

_images/image_s5_6_32.png

ATTACHED FOLDER SETTINGS

“Disable backup/attach local folder from client device”

Attached Local Folders are two-way synchronization folders. In order to do version backup and two-way synchronization, there are multiple folder structures created in the backend storage. Some organization doesn’t need this feature and want the users to work exclusively with the cloud drive.

“Enable Snapshot backup for server agent”

It is a feature related to server agent on Windows 2003-2012 servers.

“Allow syncing empty files”

By default, empty file (0-byte) will be skipped for syncing in attached folder. when enabled, those files will be synchronized.

Enable scheduled sync for files with following extensions

this is to help sync/upload frequently changed file such as Microsoft access database or QuickBook files. These type of files typically are constantly open (thus prevent other application to hold on to them) and also changed frequently. So you can define the time period to check back on these type of files and use volume shadow copy to upload these files.

Filters Settings

Tenant Management Console > Group Policy > Folder & Storage > Filters

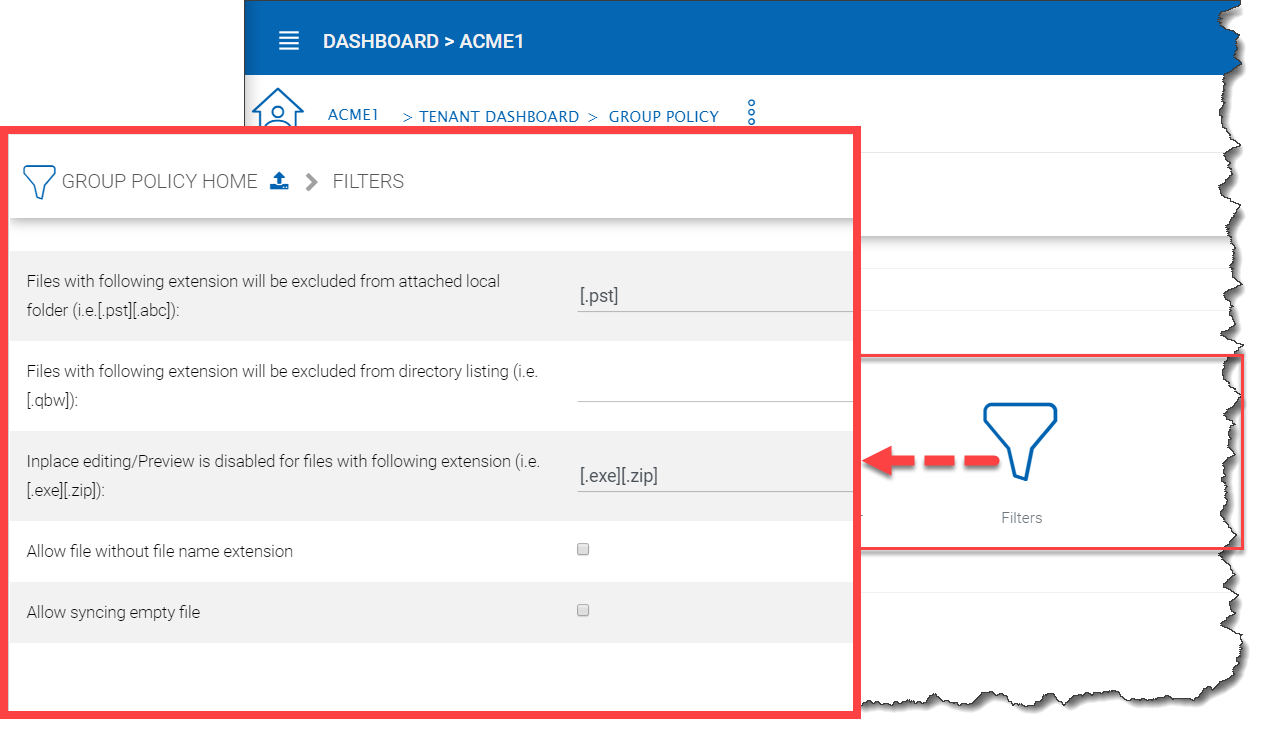

_images/image_s5_6_33.png

GROUP POLICY FILTER SETTINGS

“Files with the following extensions will be excluded from attached local folder”

You can stop certain file types from being uploaded. For example .pst files. These are local outlook email files, which is not necessary to upload into the cloud storage because usually it is backed up by an exchange server.

“Files with following extensions will be excluded from directory listing (i.e.[.qbw]):”

You can specify the executables which should not be listed under a user’s directory.

“In-place editing/Preview is disabled for files with following extension”

Windows Explorer has a habit to peek into large files to generate thumbnail and present other information. It may not be a good fit for cloud drive files because each peek will generate a download from cloud.

Allow file without file name extension

Allow files without extension suffix to synchronize.

5.6.4 Client Control

Web Portal Settings

Tenant Management Console > Group Policy > Client Control > Web Portal

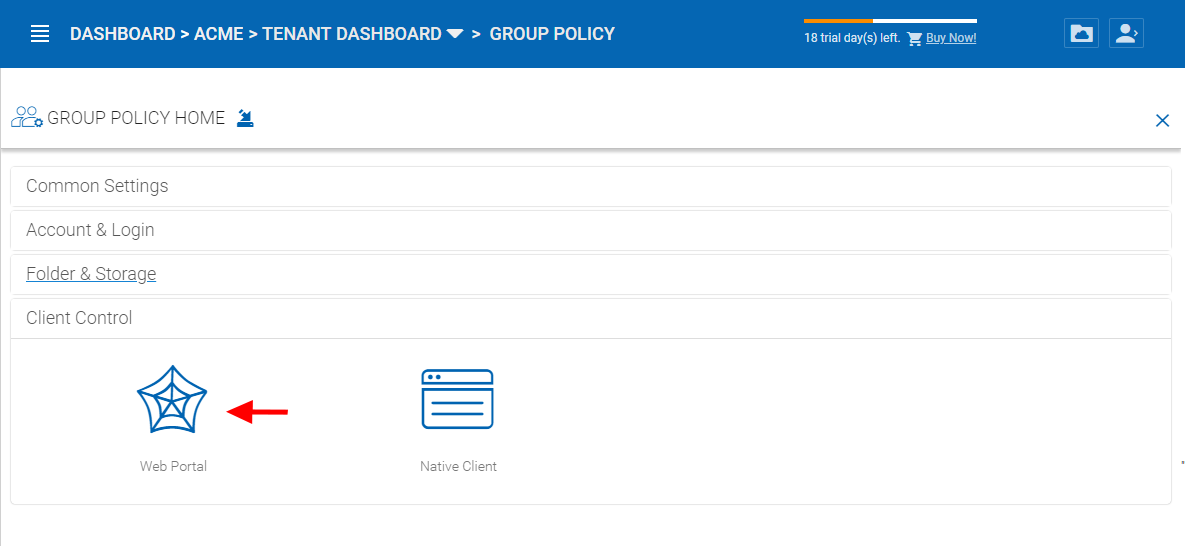

_images/image_s5_6_40a.png

WEB PORTAL PANEL

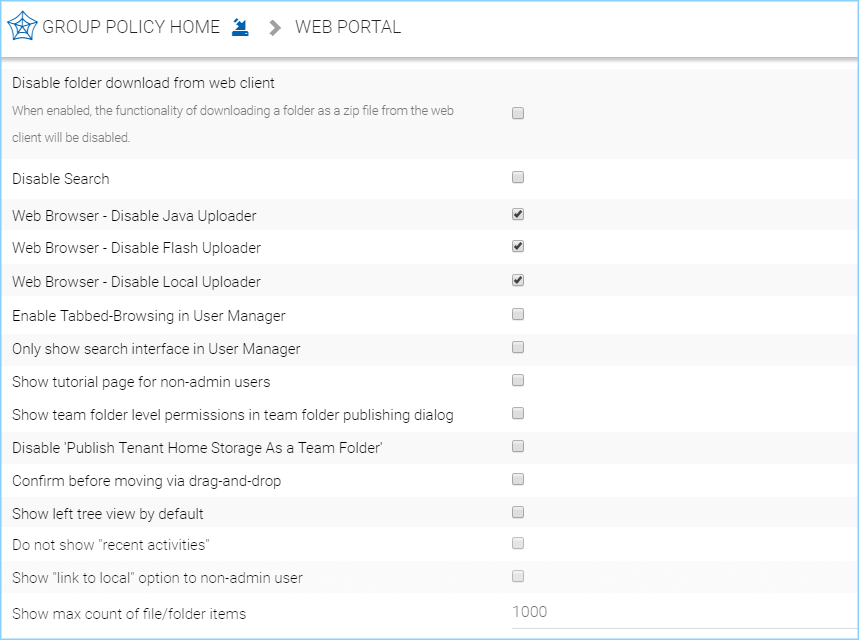

_images/image_s5_6_40b.png

WEB PORTAL SETTINGS

“Disable folder download from web client”

Disabled by default. The folder download from web client will zip up the folder and download it. It is CPU intensive so if you don’t want it to be consuming too much CPU, you can disable it using this setting.

“Disable Search”

Disabled by default. If you don’t need the search by file name feature, you can check this setting to disable it.

“Web Browser - Disable Java Uploader”

Some organization standardized on web browser, for example, all web browser are HTML5 compliant. In this case, Java Uploader is not necessary and could be confusing to support when different users have different Java version installed.

“Web Browser - Disable Flash Uploader”

Some organization standardized on web browser, for example, all web browser are HTML5 compliant. In this case, Flash Uploader is not necessary and could be confusing to support when different users have different Flash version installed. Different kind of web browser may also have different levels of Flash support, causing different behavior.

“Web Browser - Disable Local Uploader”

Admin can also disable local uploaded in which case the upload will happen using the browser directly.

“Enable Tabbed-Browsing in User Manager”

When enabled, the user manager will order users by their last name so if you have many users, you have an easy to access way to find the users.

“Only show search interface in User Manager”

When you have even more users, Tabbed-Browsing can’t handle it any more, you can enable search-only interface.

“Show tutorial page for non-admin users”

Display tutorial page for regular users when they login to the web portal.

“Show team folder level permissions in team folder publishing dialog”

The advanced setting refers to “Create CIFS Share”, “Disable further sharing”, and “Disable Offline Access” settings.

“Disable ‘Publish Tenant Home Storage As a Team Folder’”

This feature can be hidden in Tenant Management Console > Team Folder > Add New Team Folder

“Confirm before moving via drag-and-drop”

In web portal, sometimes there can be accidental drag and drop, in this case, having a confirmation dialog can help prevent accidental drag and drop.

“Show left tree view by default”

Disabled by default. When enabled left-tree is displayed when you log in to the web portal.

“Do not show “recent activities”

Disabled by default. When enabled “recent activities” is not visible in the Show/Hide Info Panel on the right side of the Web Portal File Browser.

“Show ‘link to local’ option to non-admin user”

Disabled by default. When enabled, non-admin user will have access to the “Link to Local” option in the Sharing and Collaboration tab under the Show/Hide Info Panel on the right side of the Web Portal File Browser.

“Show max count of file/folder items”

Default files to show is 1,000. Some customers may have a very flat folder that has more than one thousand files. It is not recommended to have a cloud system have flat folder structure like this. But if customer has many files in a flat folder. This setting can be used to show all files by increasing this number as needed.

Native Client Settings

Tenant Management Console > Group Policy > Client Control > Native Client

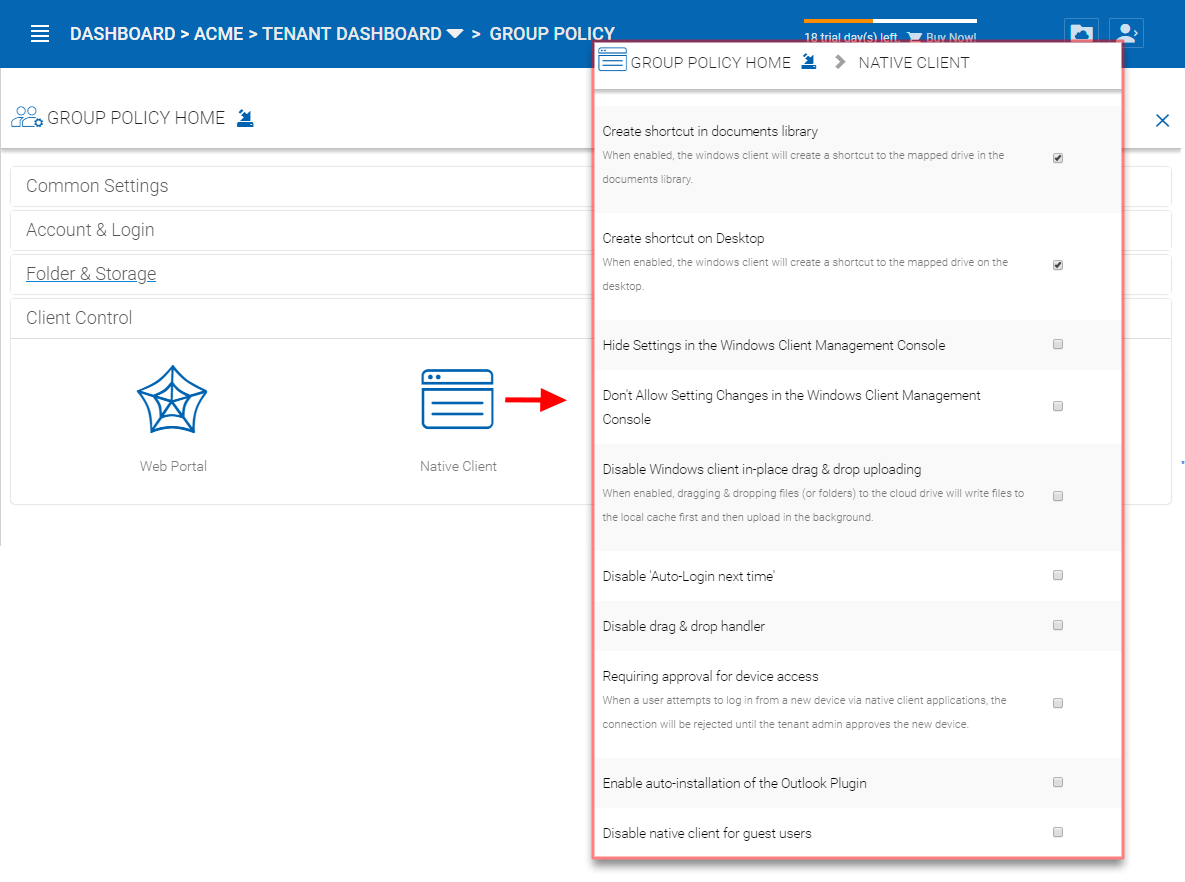

_images/image_s5_6_40.png

NATIVE CLIENT SETTINGS

“Create a shortcut in the documents library”

Enabled by default. This is a convenience feature to add a link to documents library to the cloud drive.

“Create shortcut on desktop”

Enabled by default. Same as above but the shortcut is on the desktop.

“Hide Settings in Windows Client Management Console”

Disabled by default. The Settings in the Windows client may be viewed as “too much information for normal user”. If that is the case, enabling this option will hide those settings.

“Don’t Allow Setting Changes in Windows Client Management Console”

Disabled by default. When disabled the Windows Client user can change the settings in the Windows Client Management Console.

“Disable Windows client in-place drag & drop uploading”

Unchecked by default. When enabled, dragging & dropping files (or folders) to the cloud drive will write files to the local cache first and then upload in the background.

“Disable Auto-Login next time”

Unchecked by default. When you want the user to type in username/password every time they login to the Windows client, you can check this to disable auto-login.

“Disable drag & drop handler”

Unchecked by default. If you check this option, the Windows file drag and drop will take over, this typically means the files will be copied into cache before upload, thus resulting in two copies of files being uploaded.

Requiring approval for device access

Disabled by default. When a user attempts to log in from a new device via native client applications, the connection will be rejected until the tenant admin approves the new device. The approval can be done from the “Client Device Manager”

“Enable auto-install of Outlook Plugin”

Disabled by default. The Cluster Server Windows Desktop client comes with an Outlook plug-in. If this option is enabled, the Outlook plugin will be enabled upon client startup.

“Disable native client for guest users”

Unchecked by default. For guest users, don’t allow them to use native client, so the guest users can only use web browser files and folder view.

5.6.5 Export/Import

_images/image_s5_6_50.png

EXPORT/IMPORT ICON LOCATION

You can also export the group policy settings to other clusters in the environment or import existing settings from another cluster.

5.7 Tenant Branding

Tenant Management Console > Tenant Branding

If per-tenant branding is enabled, The tenant branding section will be available.

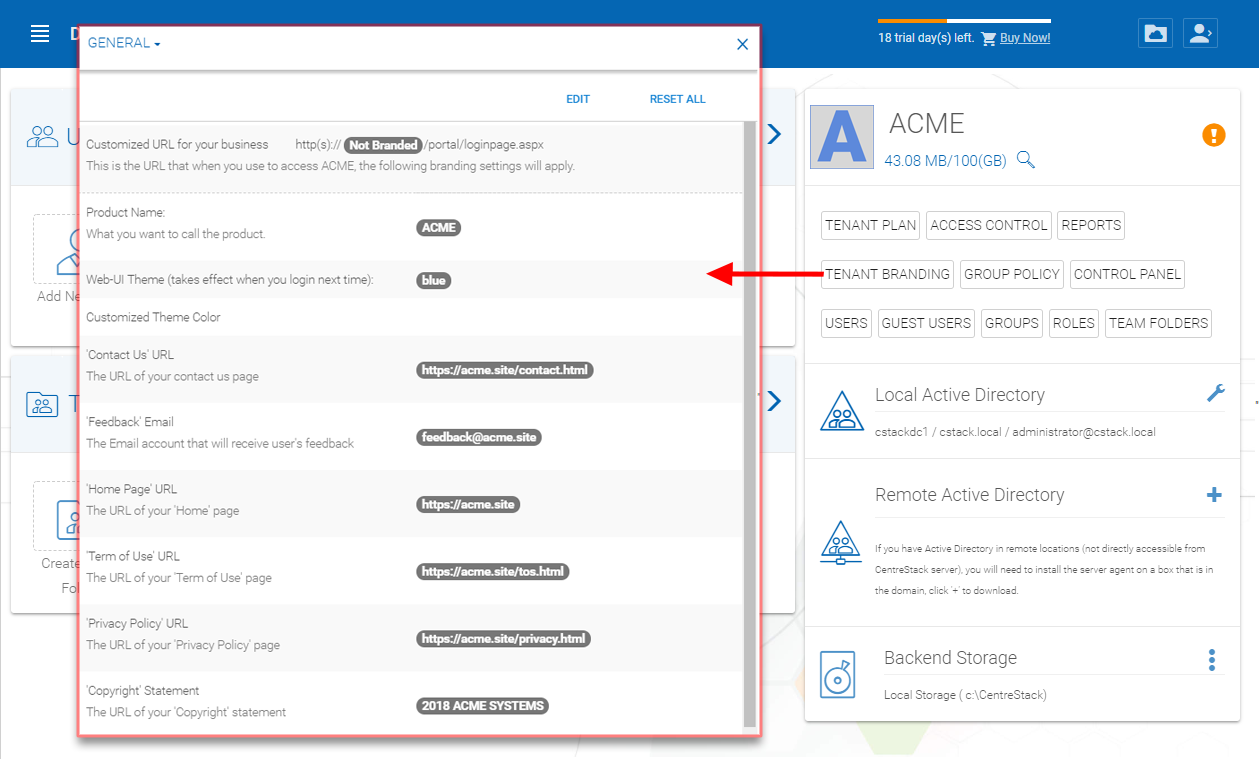

_images/image_s5_7_00.png

PER-TENANT BRANDING OPTIONS

Customized URL for your business

Typically the customize URL is a sub domain of the Cluster Server. For example, if the Cluster Server is at https://cloud.mycompany.com, the sub domain can be https://acme1.mycompany.com

In Windows 2012 and above (the server that has the Cluster Server running), it also allows SNI (Server name indicator) in the SSL certificate binding. So it is possible to bind multiple SSL certificates to the same IIS server. In this case, the Customized URL can be a fully qualified domain name.

5.8 Tenant Administrators

Tenant Management Console > Tenant Administrators

You can define a group of administrators here.

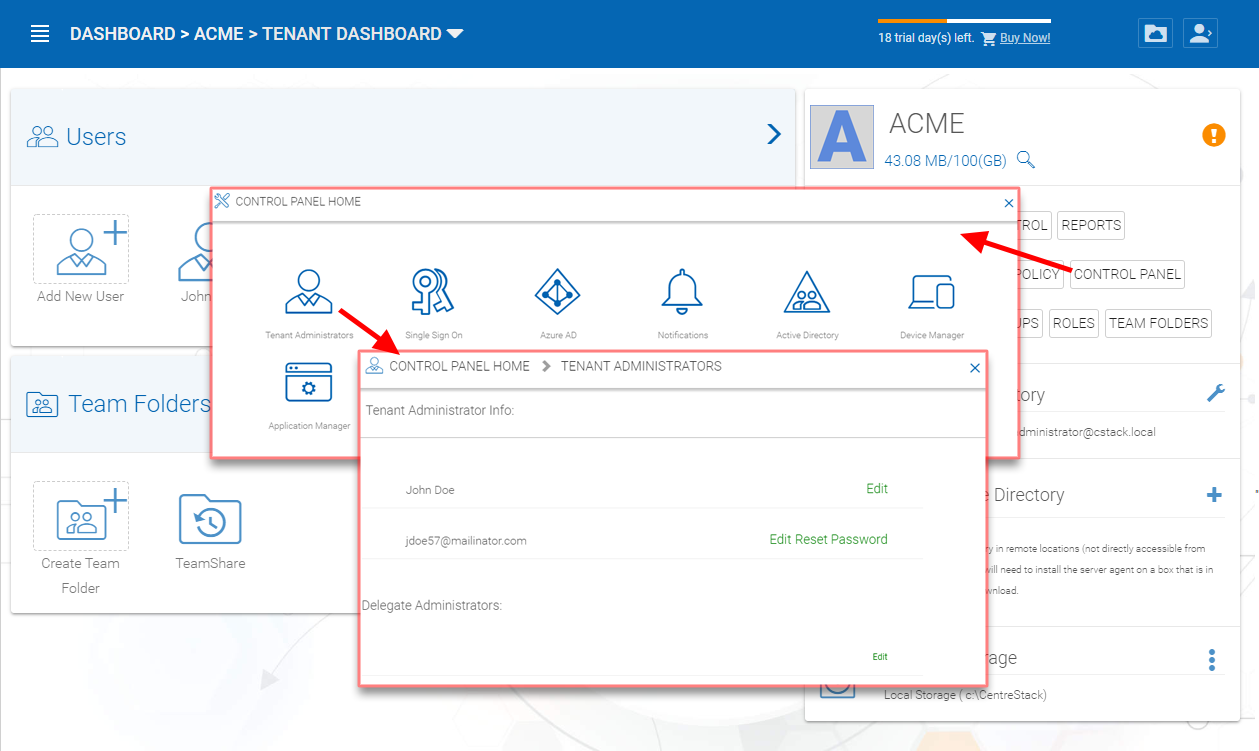

_images/image_s5_8_00.png

ADDING/EDITING TENANT ADMINISTRATORS

Here is a demo video for adding delegated administrators.

5.9 Reports

Tenant Management Console > Reports

You can see upload report, storage statistics, team folders, shared objects, audit trace, and file change logging.

5.9.1 Upload Report

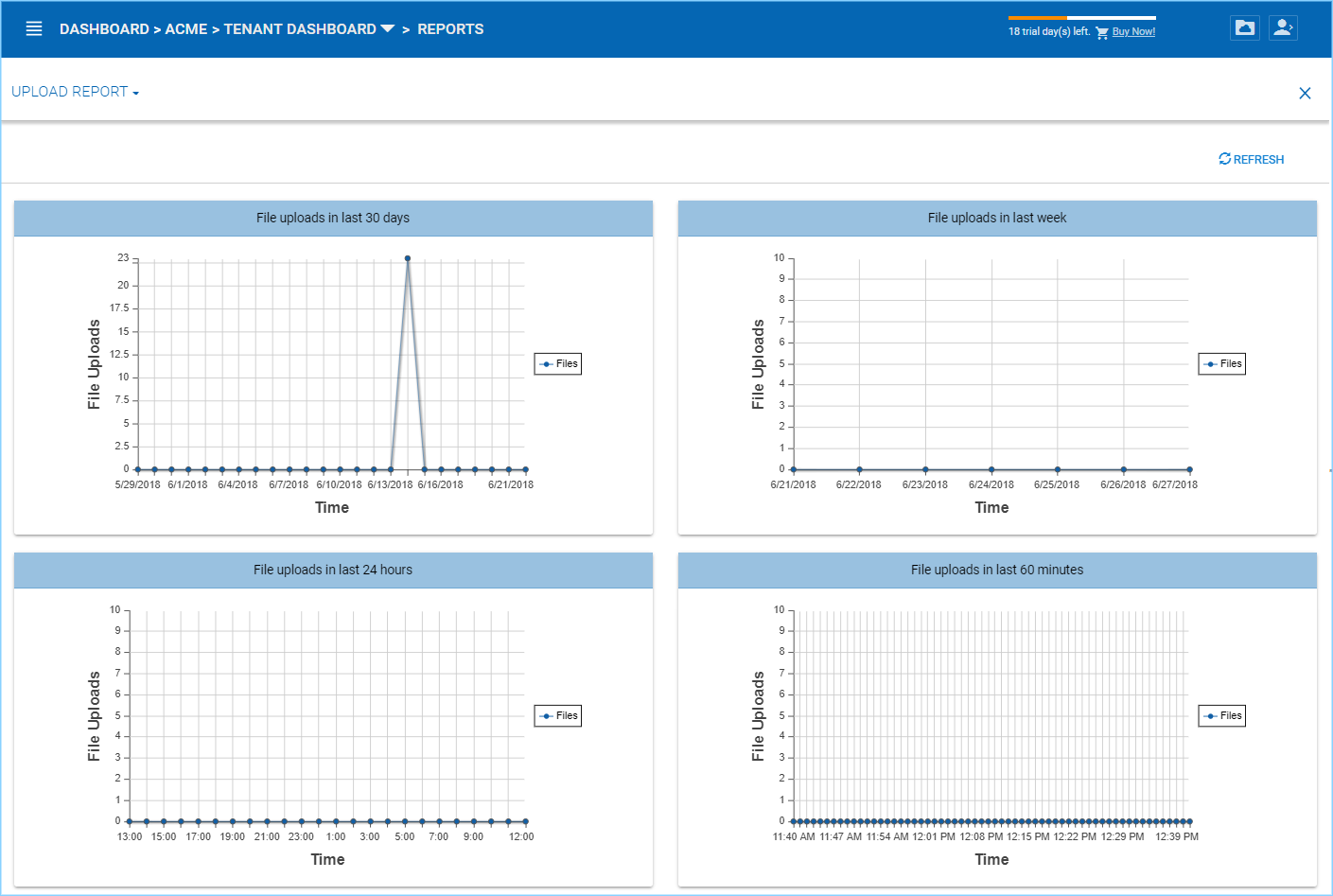

_images/image_s5_09_10.png

UPLOAD REPORT

5.9.2 Storage Statistics

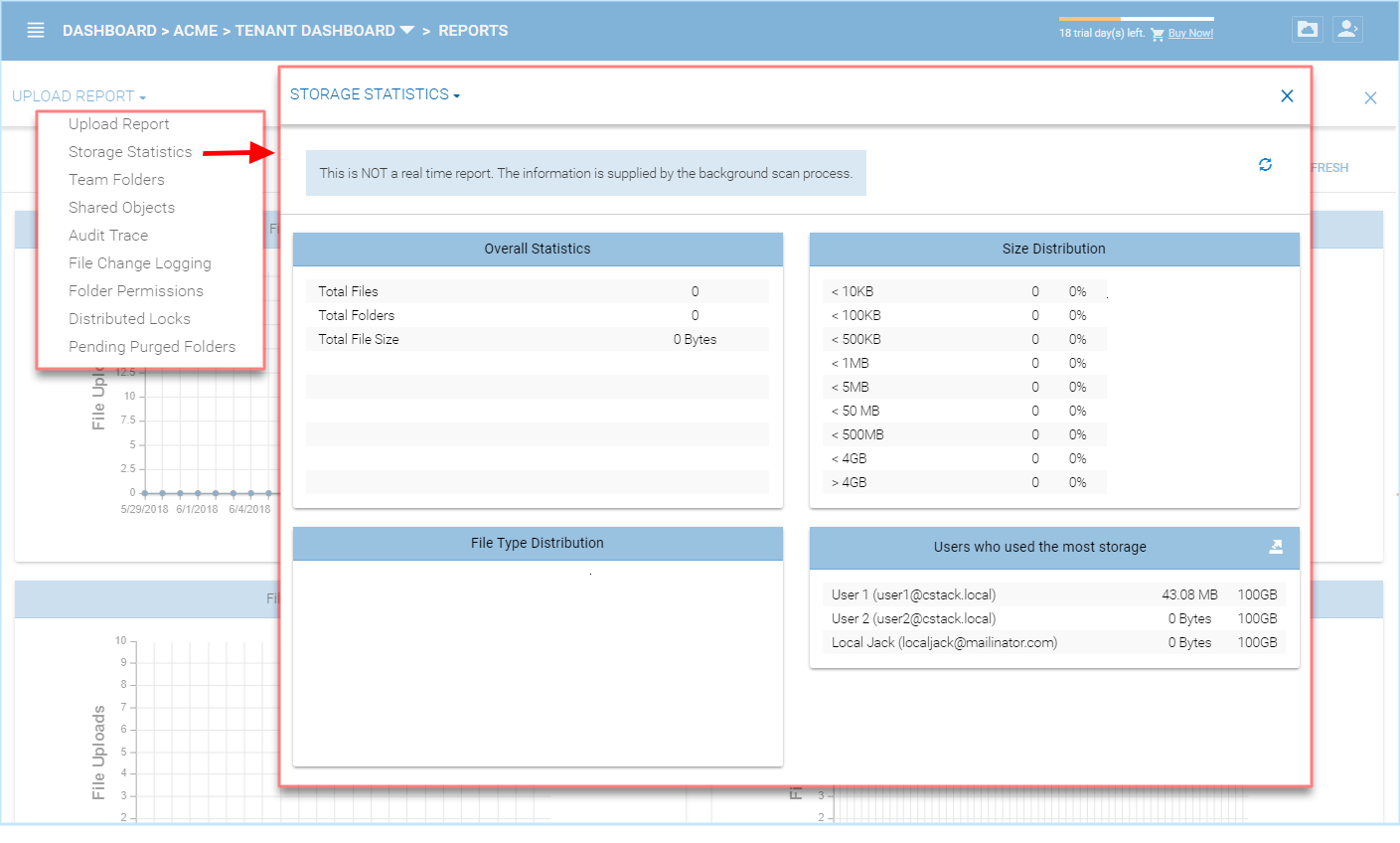

_images/image_s5_09_20.png

STORAGE STATISTICS REPORT

5.9.3 Team Folders

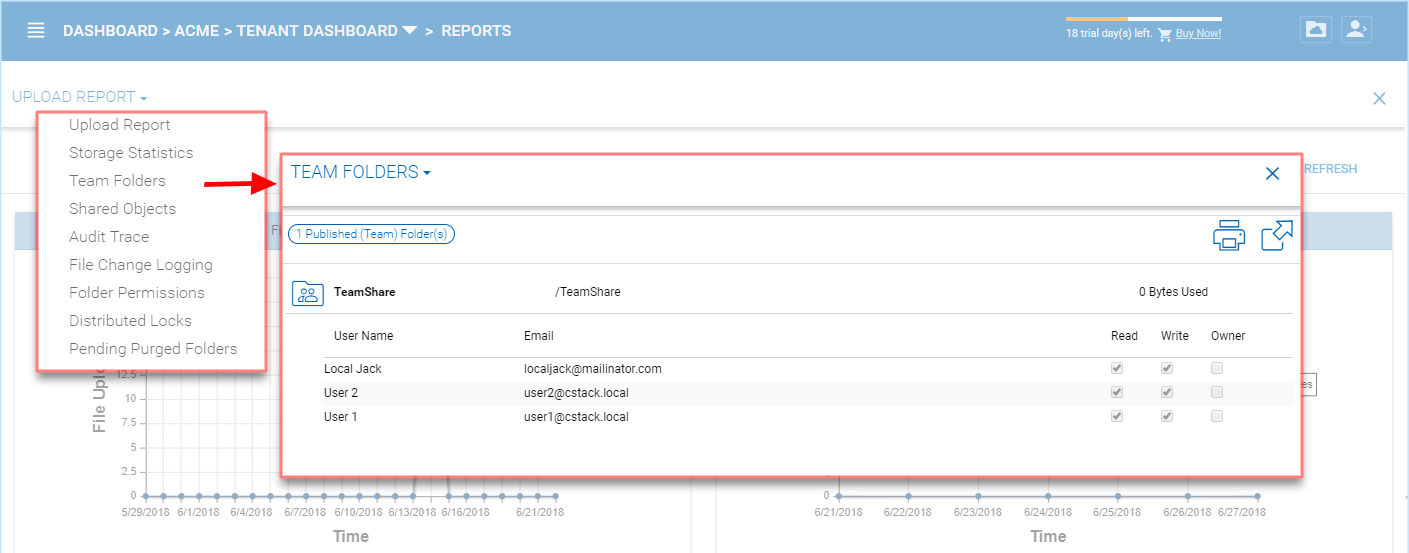

_images/image_s5_09_30.png

TEAM FOLDERS REPORT

5.9.4 Shared Objects

_images/image_s5_09_40.png

SHARED OBJECTS REPORT

5.9.5 Audit Trace

Audit trace contains the management events, such as login success, login fail , shared a folder and etc.

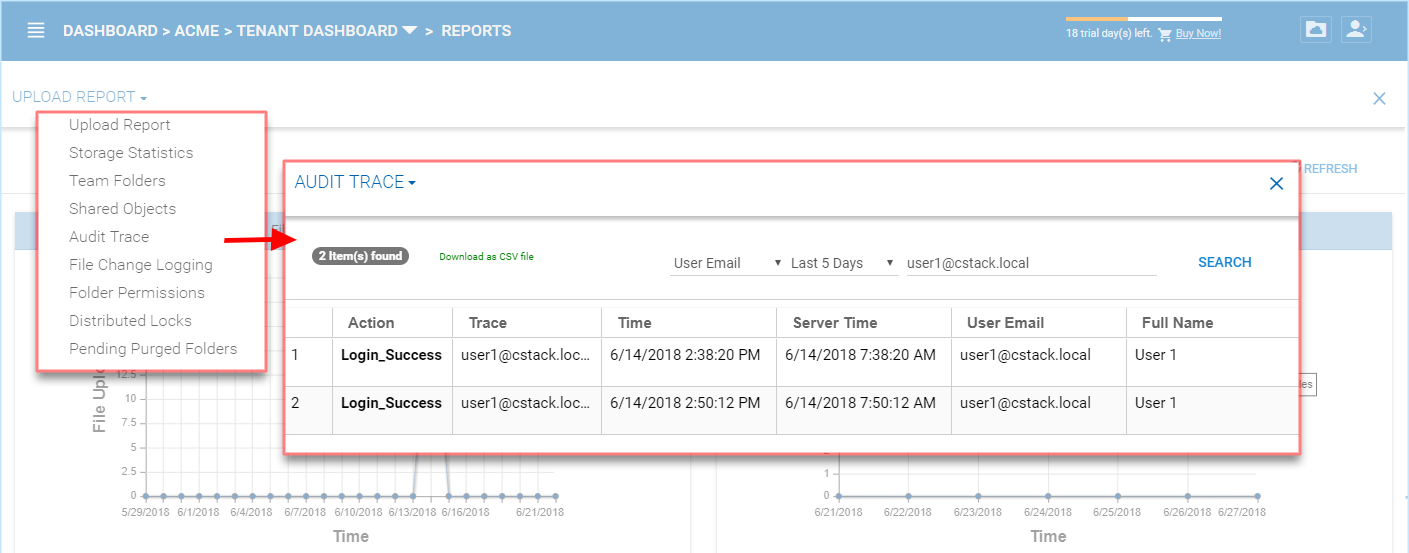

_images/image_s5_09_50.png

AUDIT TRACE REPORT

5.9.6 File Change Log

File change log is capable of search for user’s file change history. It is most useful when helping user troubleshoot issues. For example, you can point to the file change log and say, you deleted this file on this day.

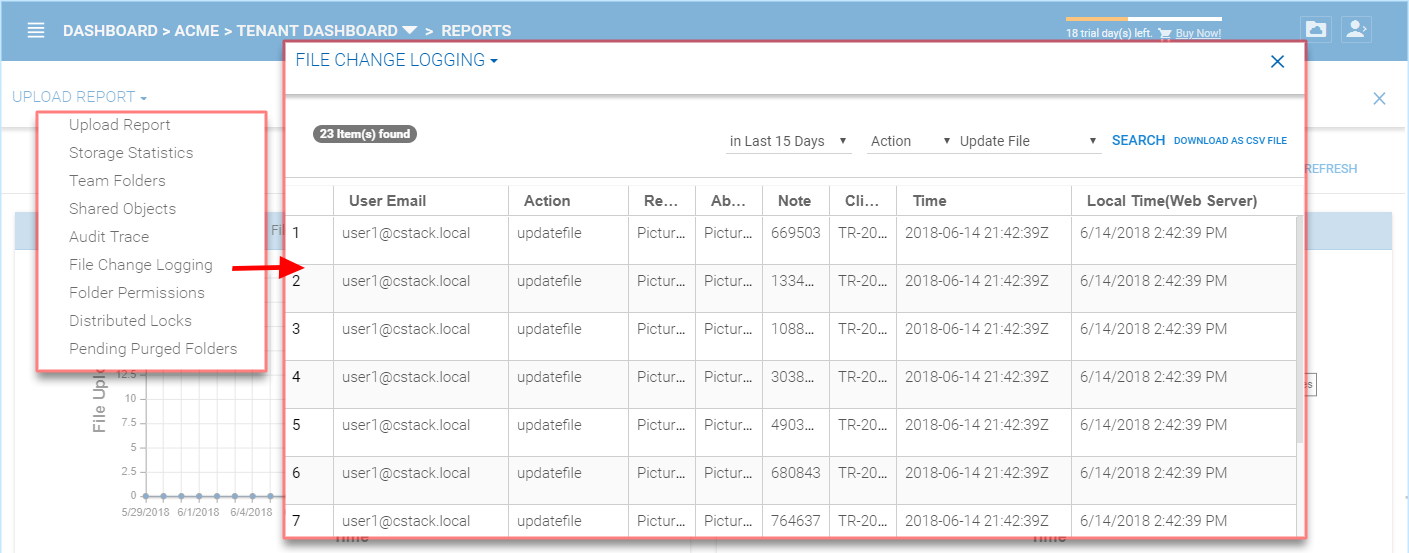

_images/image_s5_09_60.png

FILE CHANGE LOGGING REPORT

5.9.7 Folder Permissions

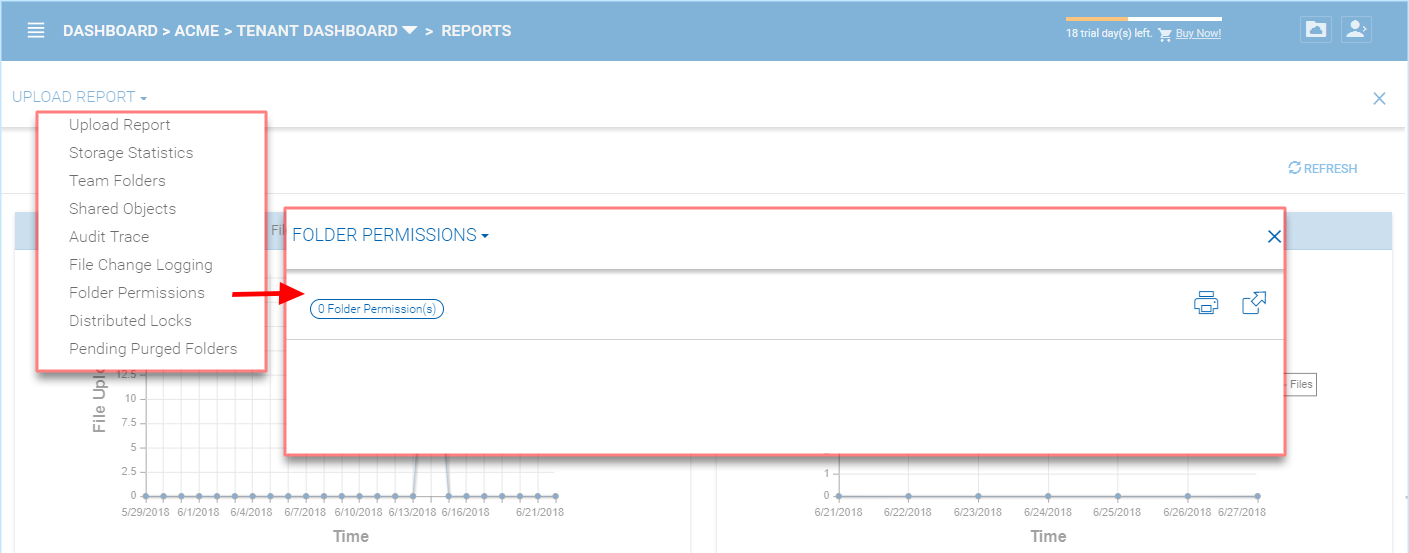

_images/image_s5_09_70.png

FOLDER PERMISSIONS REPORT

5.9.8 Distributed Locks

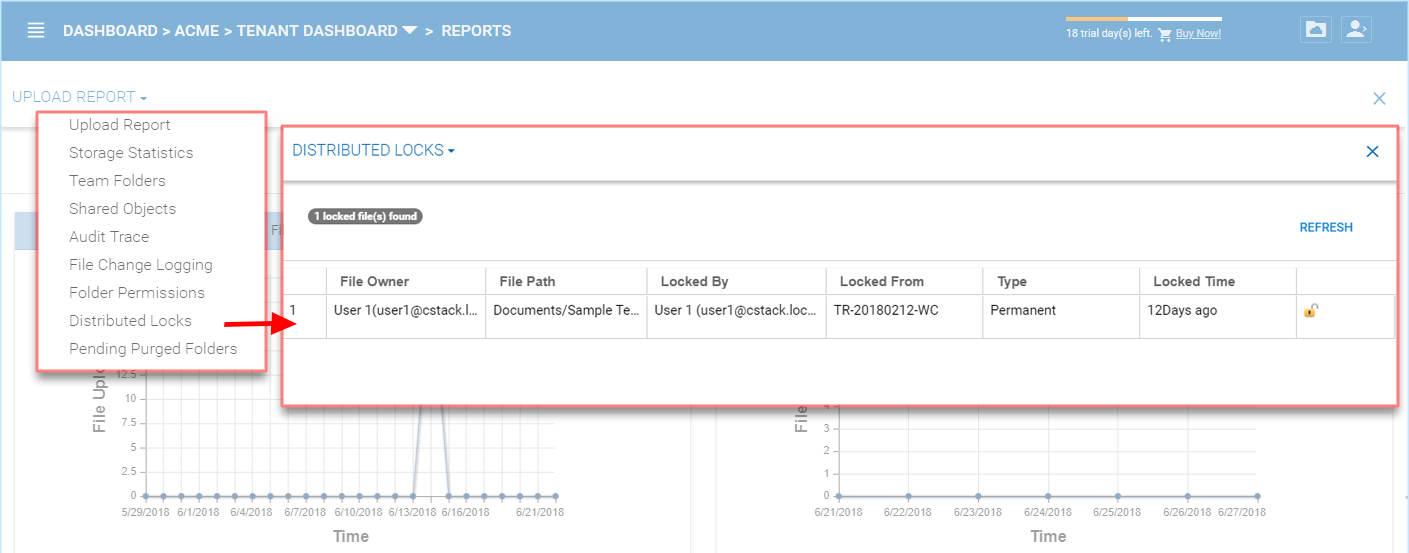

_images/image_s5_09_80.png

DISTRIBUTED LOCKS REPORT

5.9.9 Pending Purged Folder

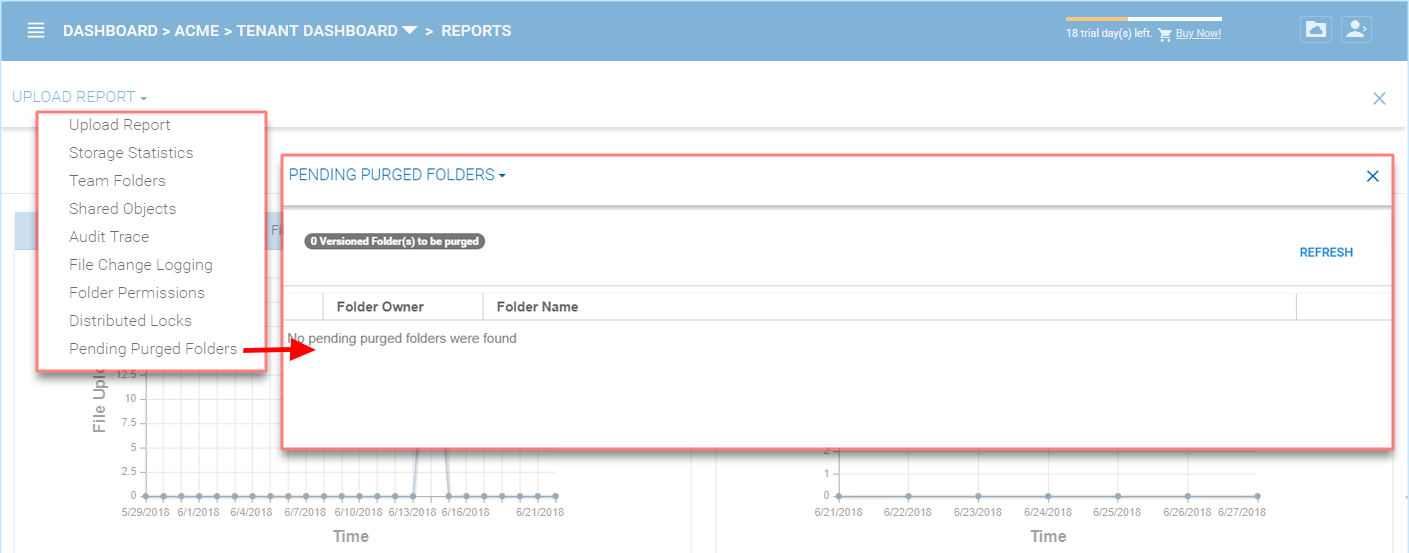

_images/image_s5_09_90.png

PENDING PURGED FOLDER REPORT

5.10 Advanced Information

Tenant Management Console > Control Panel

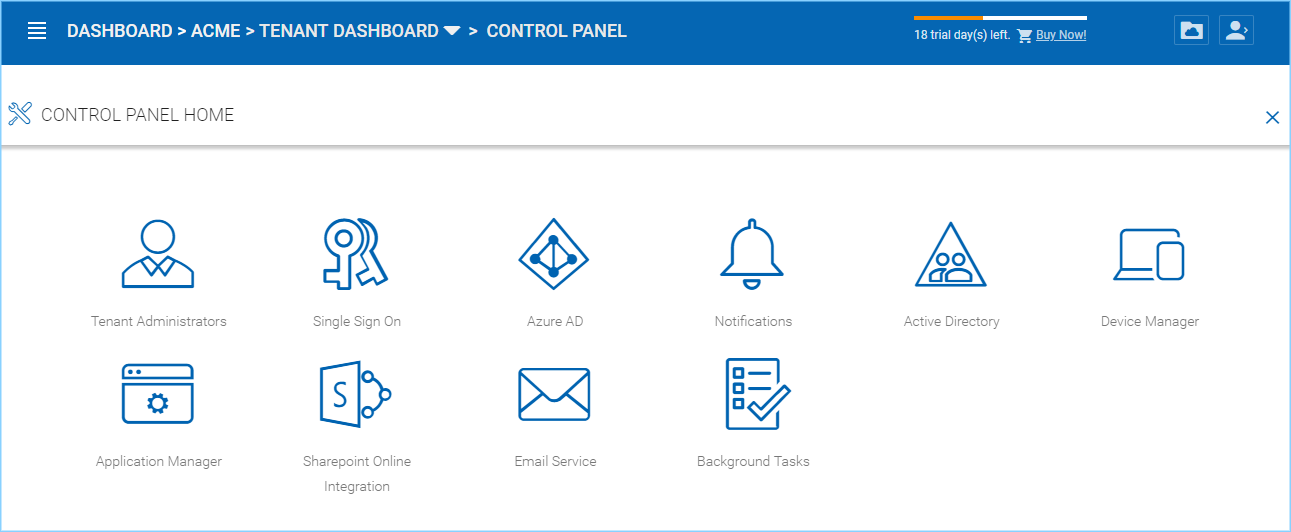

_images/image_s5_10_01.png

TENANT MANAGEMENT CONTROL PANEL

5.10.1 Active Directory Settings

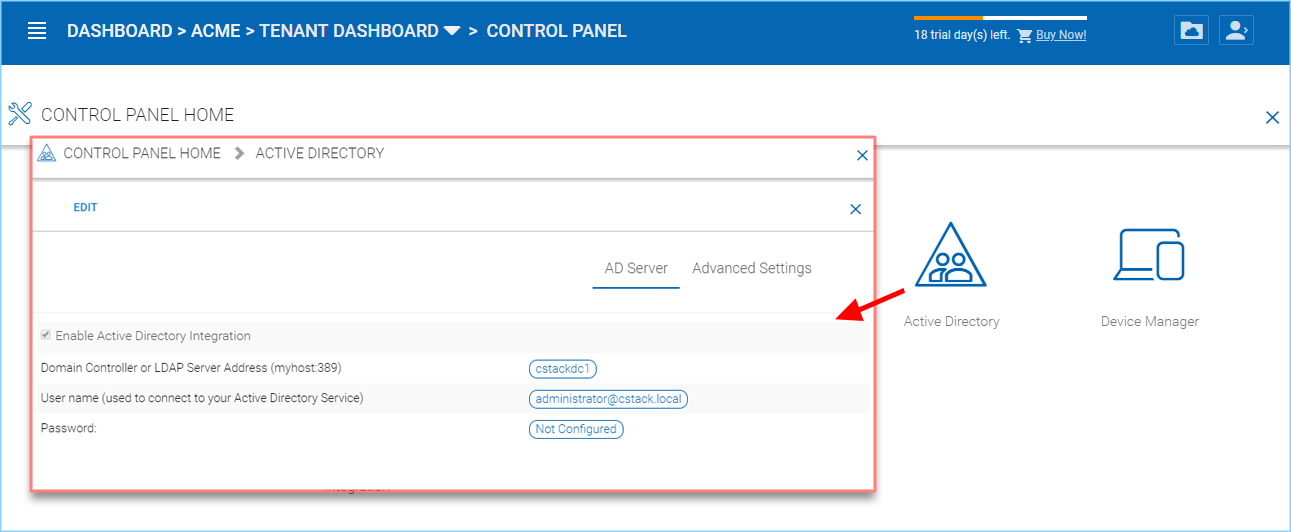

_images/image_s5_10_11.png

CONTROL PANEL AD SERVER SETTINGS

AD Server Tab

“Enable Active Directory Integration”

You will check this when you want to integration with Active Directory.

Note

There are two different ways to integrate with Active Directory. One way is here, using the Lightweight Directory Access Protocol (LDAP) connection. The other way is to leverage the server agent software. The server agent software is capable of connecting a remote Active Directory.

“Domain Controller Address”

The domain controller’s address, typically in the form of DNS name.

“User Name”

This is recommended to be a service account (password never expire, account never disable” so the user will be able to query LDAP for users and authenticate users on the login user’s behave.

“Password”

This is the password for the service account for the “User Name” field.

Advanced Settings Tab

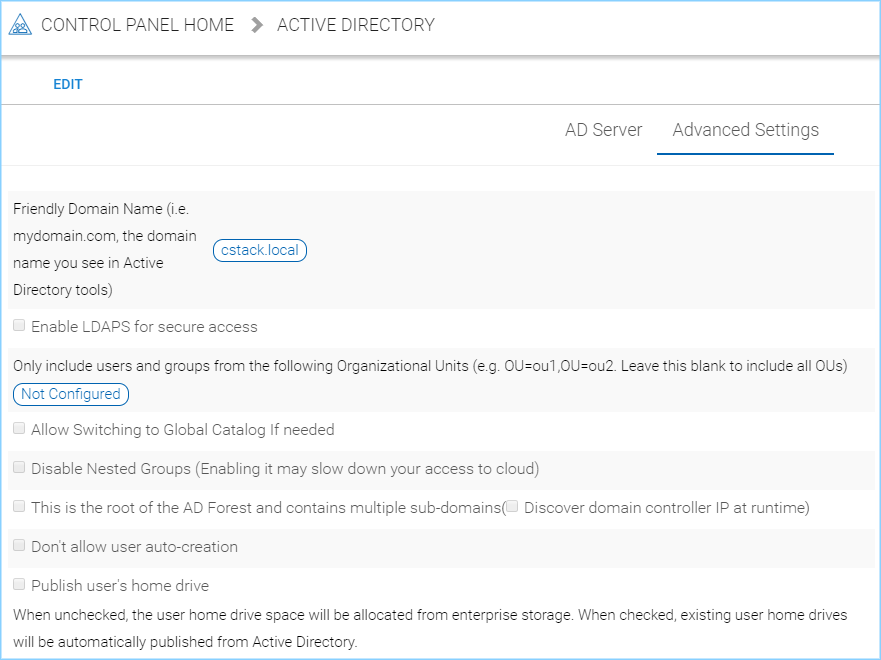

_images/image_s5_10_11a.png

CONTROL PANEL AD ADVANCED SETTINGS

“Friendly Domain Name”

(i.e. mydomain.com, the domain name you see in Active Directory tools) This is typically the domain name you see in the Microsoft Domain and User tool. It needs to be exact match of the domain name. Otherwise, you will see error message about “referral is required” , which translates to the domain controller didn’t match the domain name and need to refer you to somewhere else for another domain name.

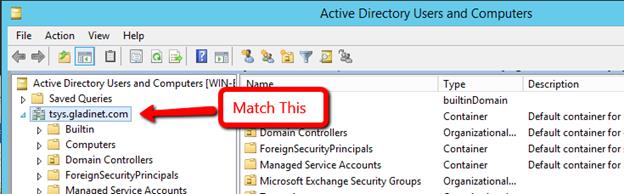

_images/image038.jpg

FRIENDLY DOMAIN NAME EXAMPLE

“Enable LDAPS for secure access”

Disabled by default. Enable this if you are using SSL security on the domain.

“Only include users and groups from the following Organizational Units”

(e.g. OU=ou1,OU=ou2. Leave this blank to include all OUs) When you type in the organization unit, you don’t need to type the domain part any more. It just need the Organization Unit part of the string. This is allowed for only single Organization Unit specified in its distinguishedName format without the domain suffix.

“Allow Switching to Global Catalog If needed”

Disabled by default. For some organization that has multiple domain, sometimes there is a Global Catalog that stores everything inside. This may be required if you have such situation.

“Disable Nested Groups”

Not checked by default. (Activating this checkbox may slow down your access to cloud) Normally you will activate this option if you have many groups.

“This is the root of the AD Forest and contains multiple sub-domains”

The Cluster Server supports multiple domains in the same AD forest. You will need to point to the root of the AD and it is capable of finding all the sub-domains if you enable the Discover domain controller IP at runtime sub-opion.

“Don’t allow user auto-creation”

By default, the Enterprise package is capable of creating users upon first login into the web portal. However, for big enterprise, they may want to control the pace of adding users to the system so they will disable this feature.

“Publish user’s home drive”

When unchecked (default), the user home drive space will be allocated from enterprise storage. When checked, existing user home drives will be automatically published from Active Directory.

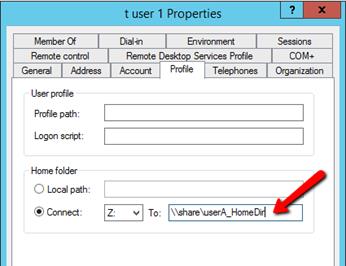

_images/image039.jpg

USER’S PROFILE HOME FOLDER SETTING

5.10.2 Client Device Manager

This feature is used to control BYOD (Bring your own device). For some organization, they want to control who can bring what device into the system. This is the tool to control that and allow/disallow on a device by device basis.

_images/image_s5_10_20.png

CONTROL PANEL DEVICE MANAGER

5.10.3 Application Manager

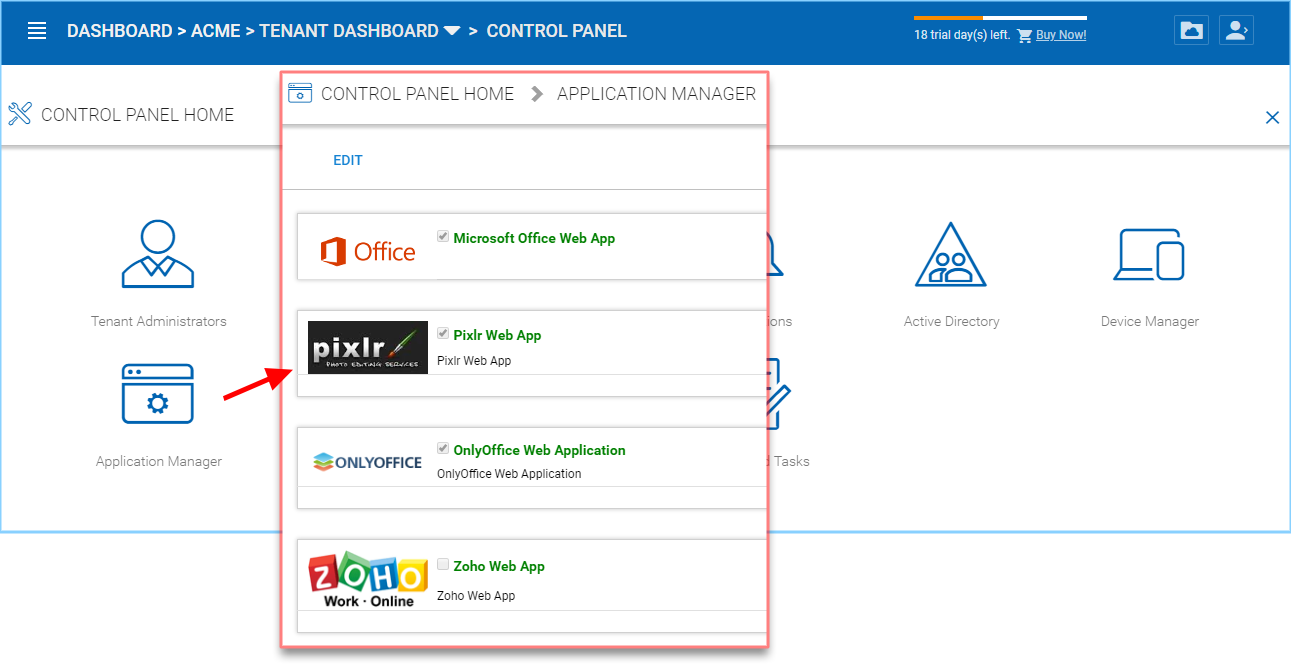

_images/image_s5_10_30.png

CONTROL PANEL APPLICATION MANAGER

This section configure several web applications to the web portal on a per-tenant basis.

5.11 Tenant Administrators

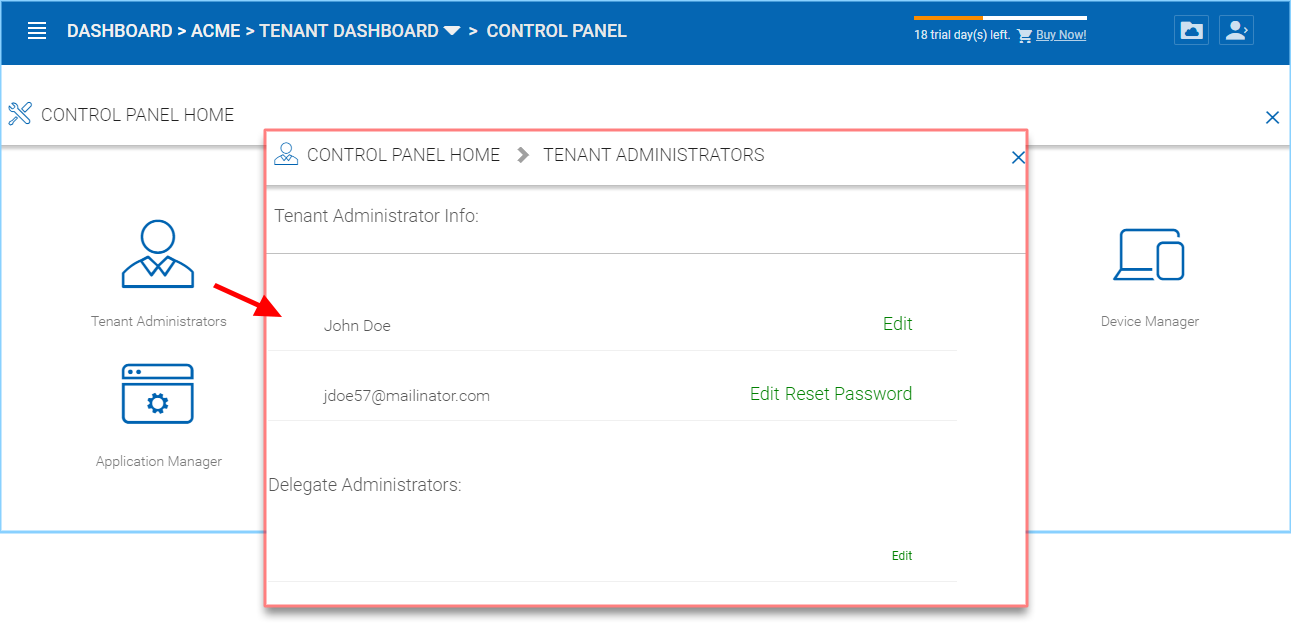

_images/image_s5_11_01.png

ADDING/EDITING TENANT ADMINISTRATORS

This section allows you to delegate the administration of tenants to other users.

5.12 Notification

5.12.1 Settings

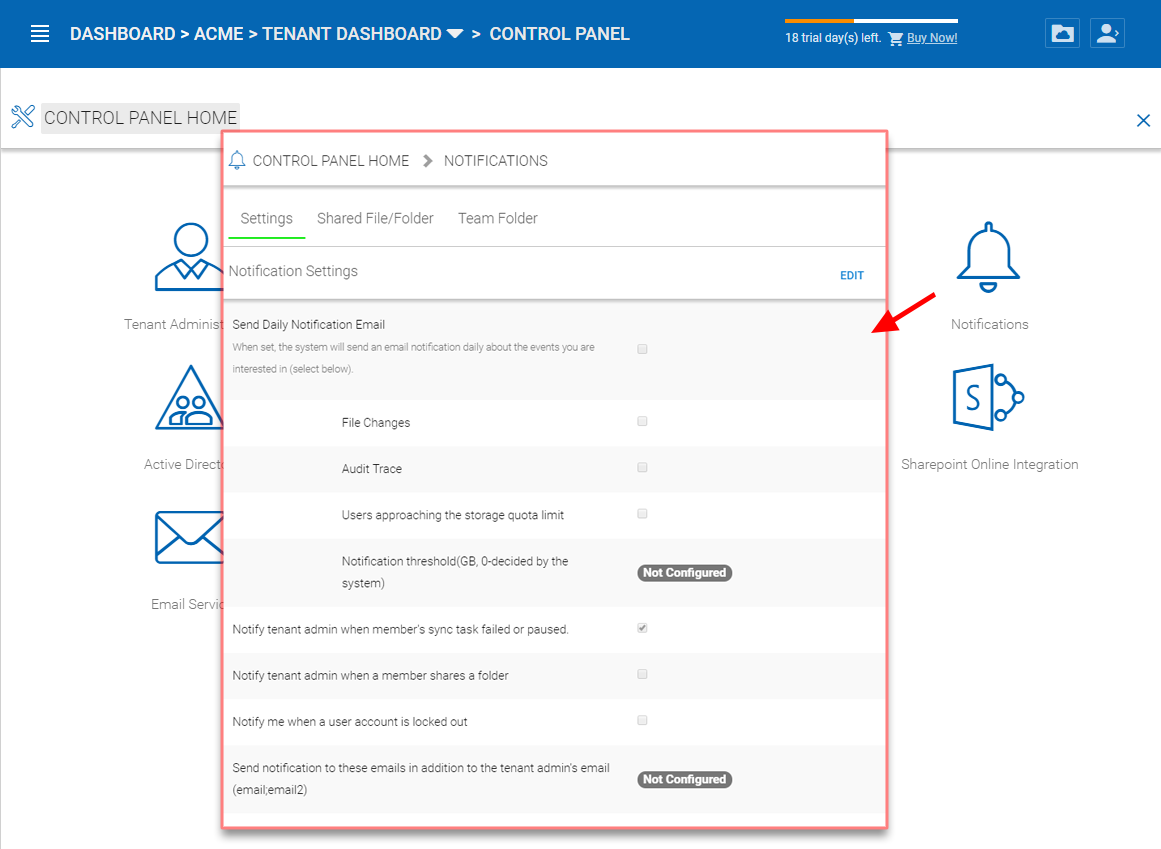

_images/image_s5_12_10.png

NOTIFICATION SETTINGS

Send Daily Notification Email - When set, the system will send email notification daily about the events you are interested (Select below).

  • File Changes
  • Audit Trace
  • Users approaching the storage quota limit

Notify tenant admin when member’s sync task failed.

Notify tenant admin when member shared a folder

Notify me when user account is locked out

Send notification to these emails in addition to tenant admin’s email (email;email2) - This is used for additional administrators to receive email notification.

5.12.2 Shared File/Folder

_images/image_s5_12_20.png

TEAM FOLDER SUBSCRIPTION OPTION

Notification regarding the changed files and folders Team Folder - notification regarding changed files and folders Settings

Send Daily Notification Email Notify tenant admin when member’s sync task failed Notify tenant admin when member shares a folder Notify me when user account is locked out.

5.12.3 Team Folder Settings

_images/image_s5_12_30.png

NOTIFICATION SETTINGS

Administrators can use this setting to receive notifications when changes occur in team folders.

5.13 Folder Admin Support

5.13.1 User’s File and Folder List

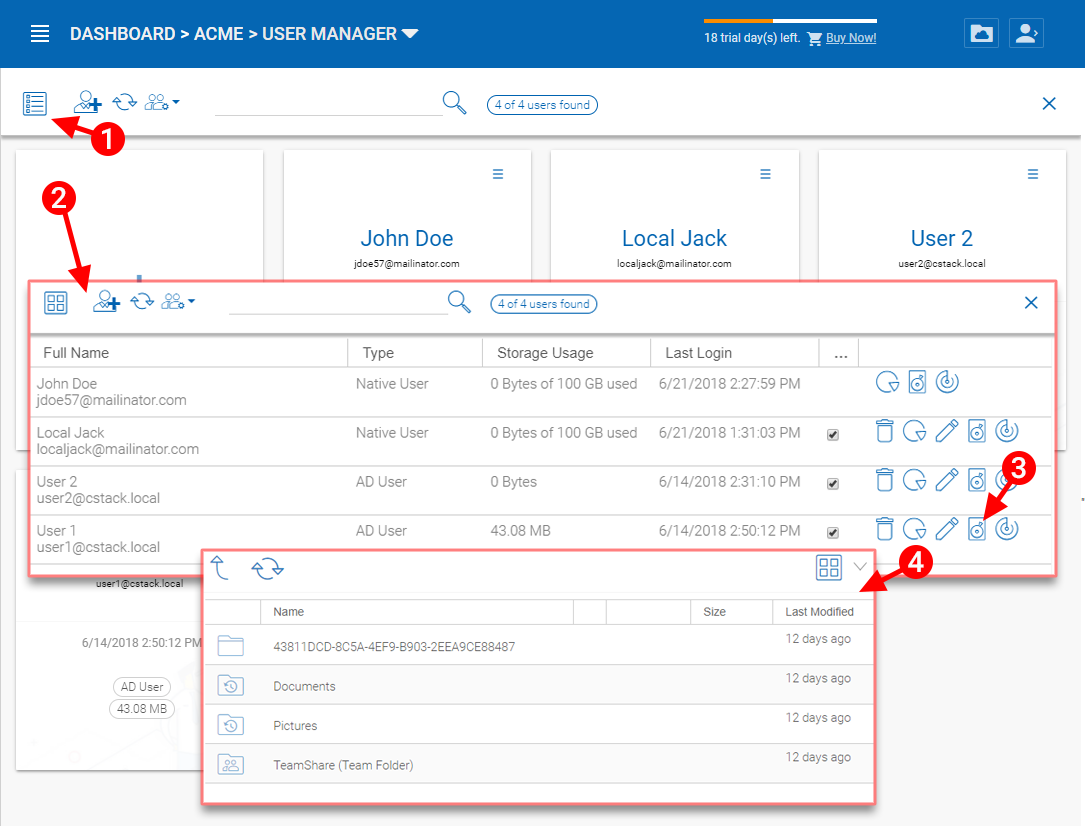

_images/image_s5_13_10.png

VIEWING A USER’S FILE AND FOLDER LIST

An admin can view a user’s file and folder list using the drive icon (3) for the user in Management ConsoleUser Manager.

First switch the icon view (1) to detail view (2) and click the drive icon (3) next to the user you are examining. This will open a new window (4) where you can view the files.

5.13.2 Storage Location Migration

There are two types of storage migrations.

1. Migrate data to a different location in the same type of storage using the steps below:
  1. Identify the location of the current storage
  2. Copy the content to the new location (for example, you can use xcopy . from the old location to the new location
  3. Login to web portal as master admin.
  4. Launch Management Console -> Collaboration -> Storage Manager and click on edit to point to the new location
2. Migrate data to a different type of storage using the steps below:
  1. Go to the registry using regedit
  2. Go to HKLM\SOFTWARE\Gladinet\Enterprise\ and add a new string value called ‘CanChangeDefaultStorage’ and set the value to ‘True’ and reboot
  3. Edit the storage type using new icon to edit storage under Cluster ManagerTenant Manager

Note

It is not recommended that you modify registry settings. Create a backup of the registry before modifying any registry settings.
